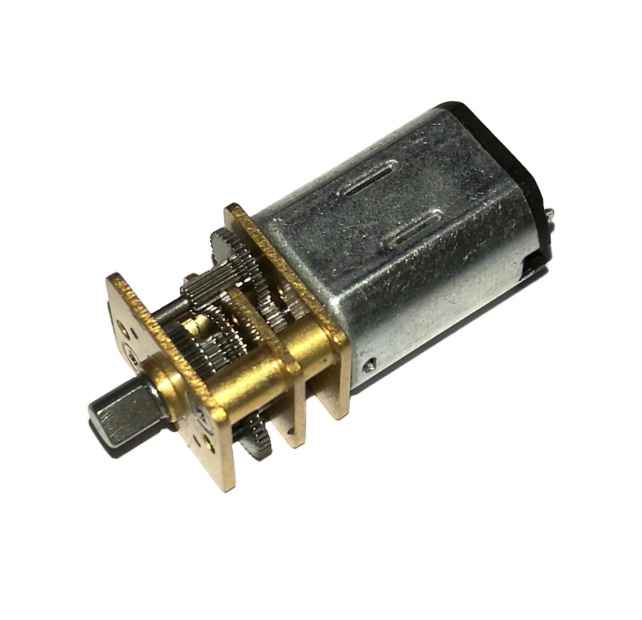

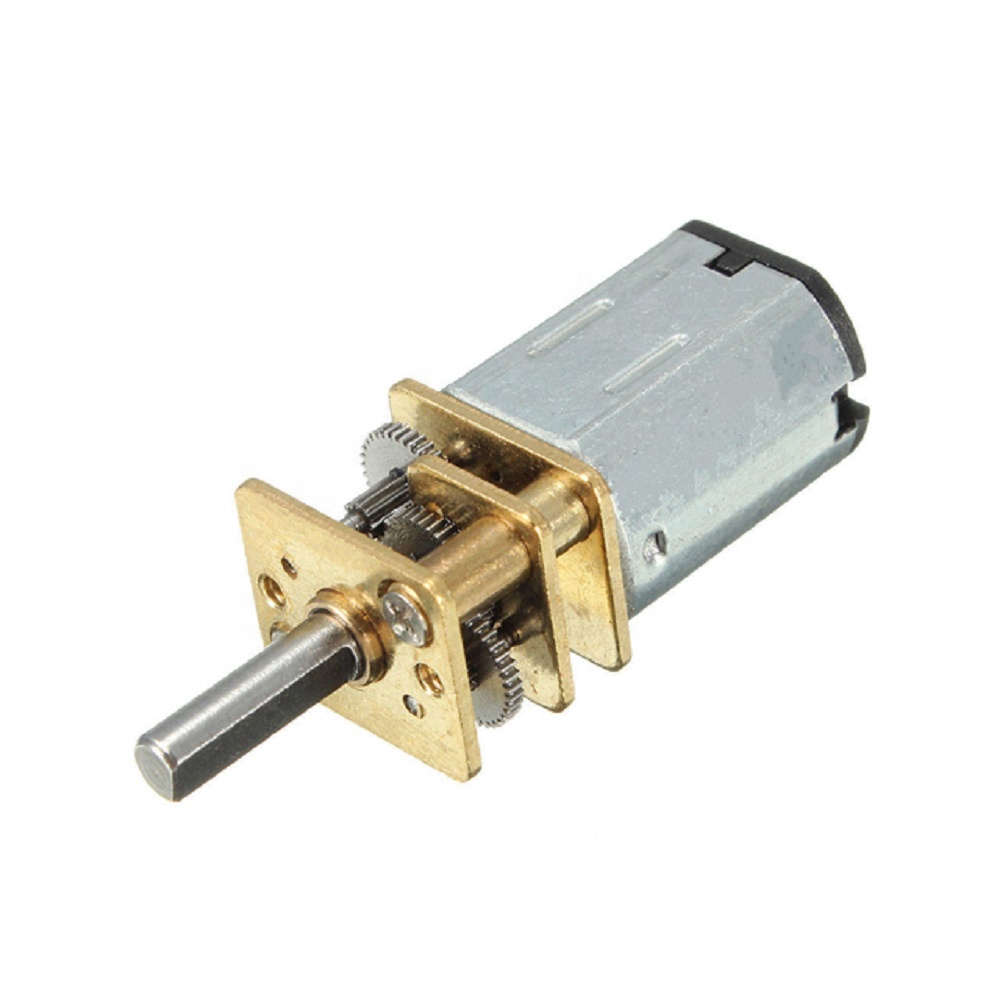

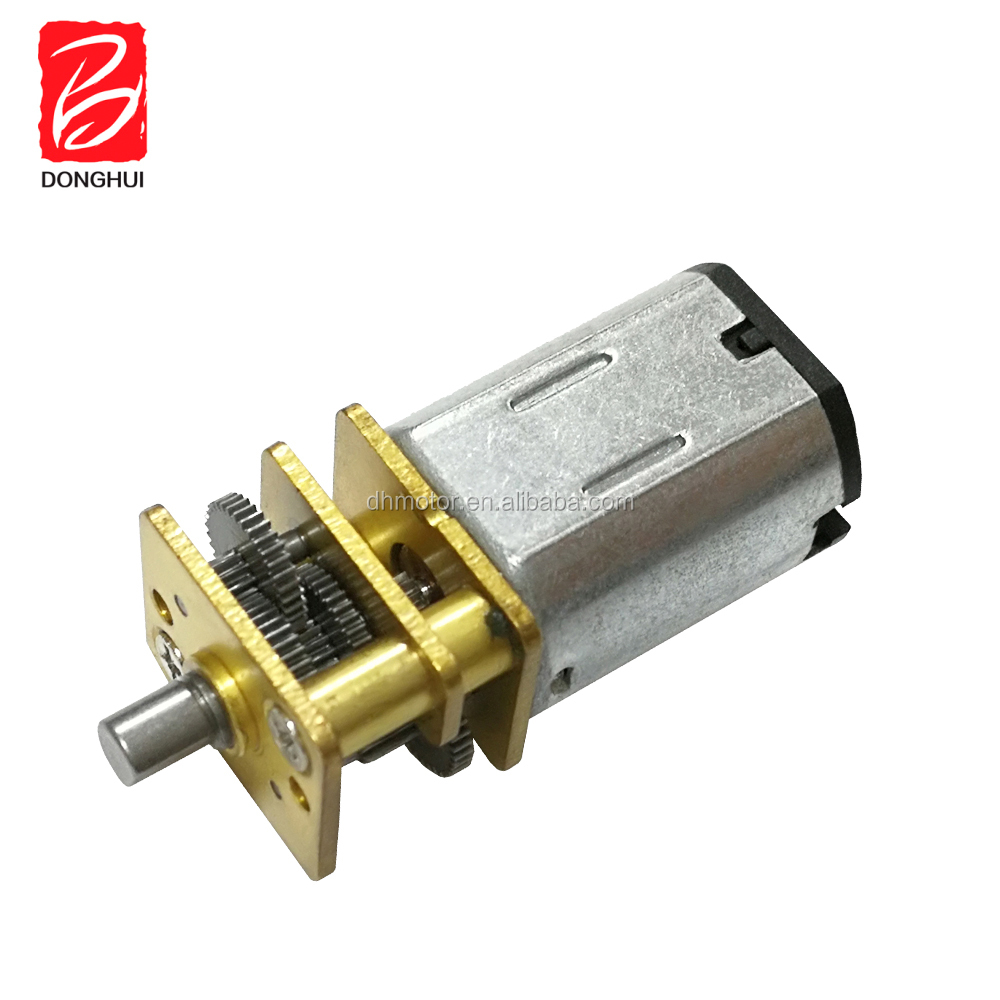

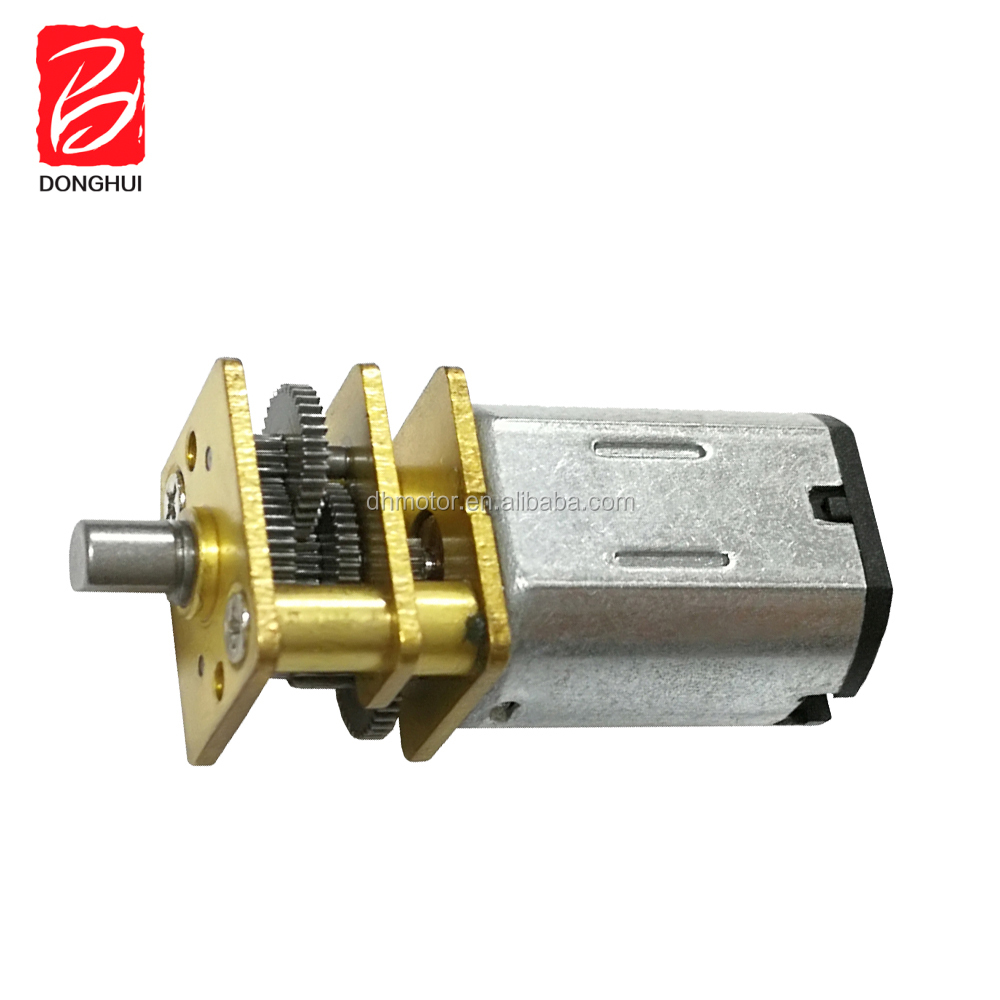

Cheap Price Customized Cheap Price DC 6/12V 75RPM Mini Electric Metal Boat Gear Motor with Gearwheel N20 Motor DGA12-N20

Products Description

Permanent Magnet gm12 dc gear 145rpm 3v 800g.cm 10mm shaft D2.5mm n20 door lock robot micro geared motor

⚠

Promotion Offer: This motor is stock offer for promotion only which has limited quantity.

ℹ

Specifications: Motor voltage, speed, torque, and shaft specification refer to the following data, which cannot be changed.

✔

MOQ: Minimum Order Quantity is 5 pcs. Pricing for large orders can be discussed.

⚙

Customized Specifications: If the listed motor data does not meet your requirements, please contact us for custom configurations at regular pricing.

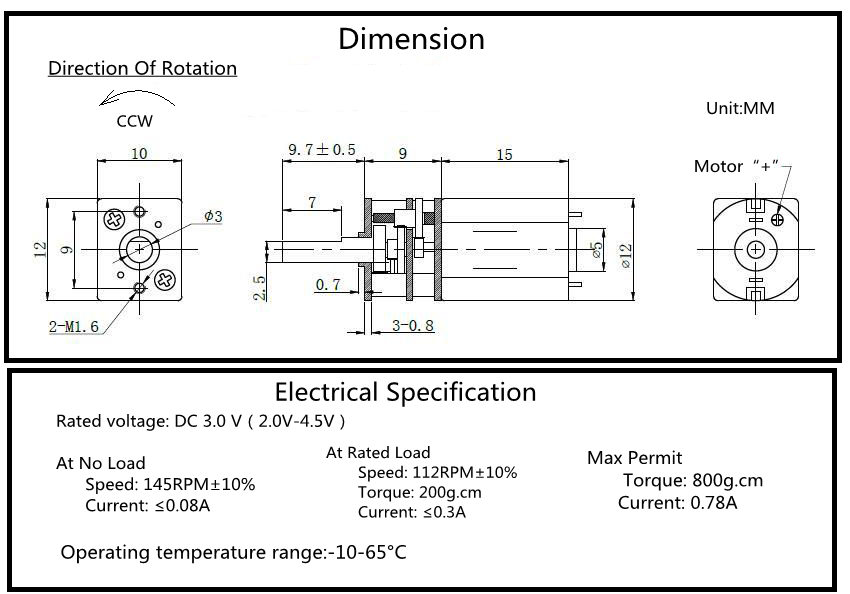

Specification

Item	Micro Gear Motor

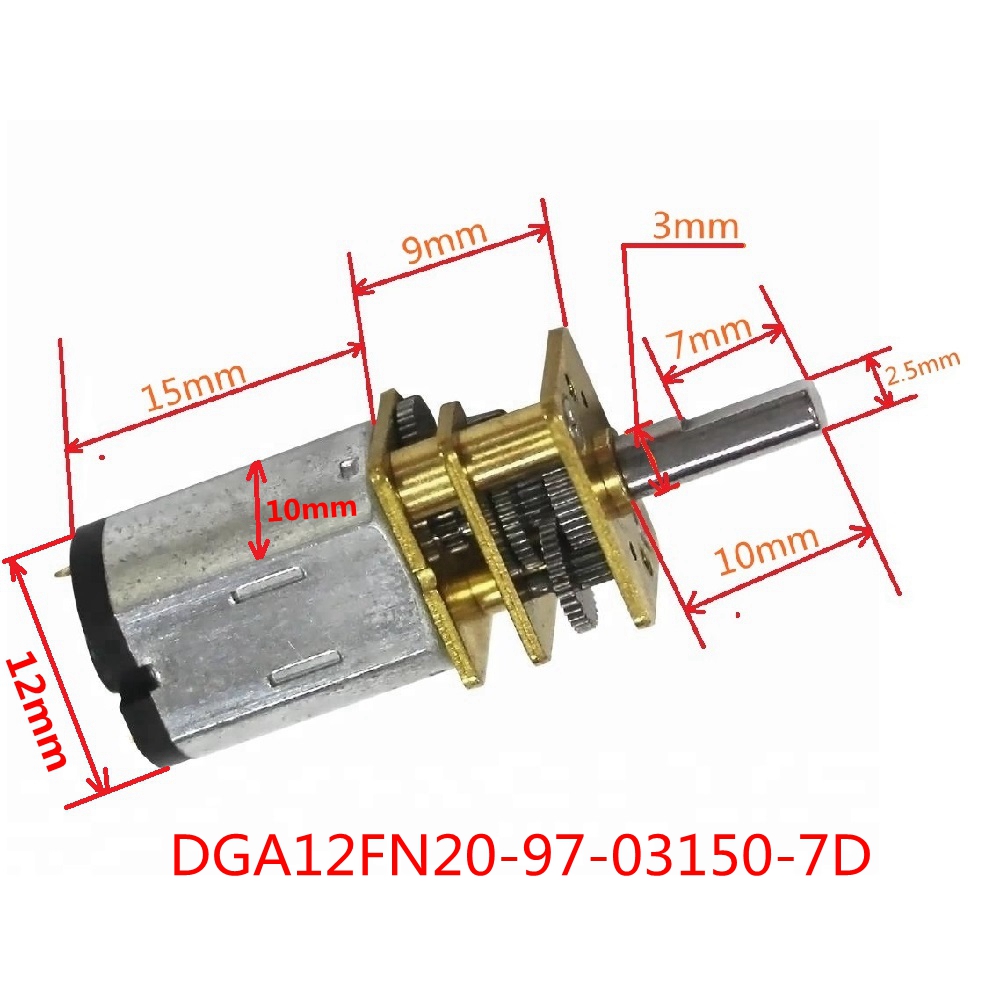

Size	D10mm * 12mm * L24mm
Rated Voltage	DC 3.0 V
Working Voltage Range	DC 2.0 V ~ DC 4.0 V
Unload Speed	145 rpm ± 10%
Unload Current	60mA
Rated Speed	112 rpm ± 10%
Rated Torque	200g.cm
Rated Current	≤320mA
Max Current	≤800mA
Max Torque	≤3500g.cm
Wattage	0.29watt
Application	Robot, Lock, toys, electric power tool

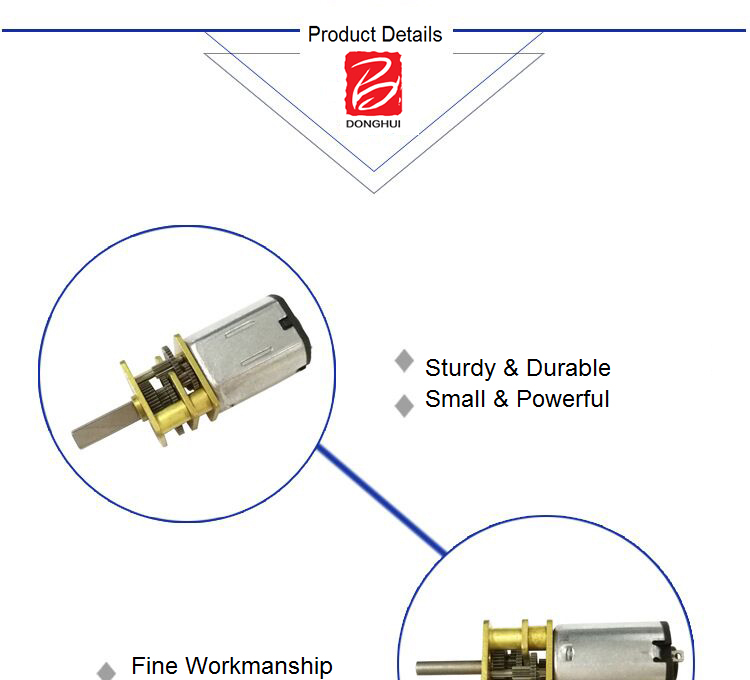

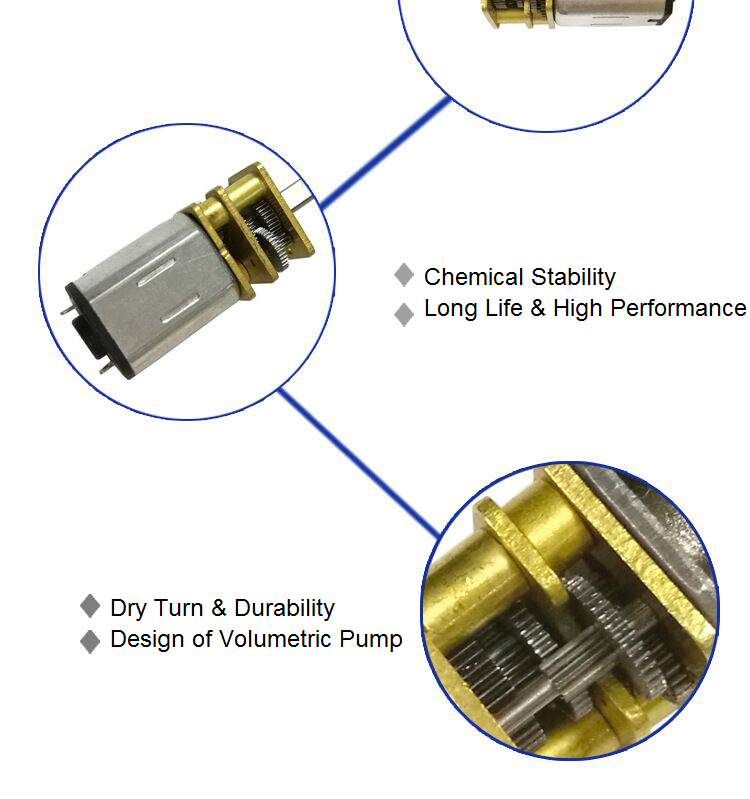

Product Details

Related Products

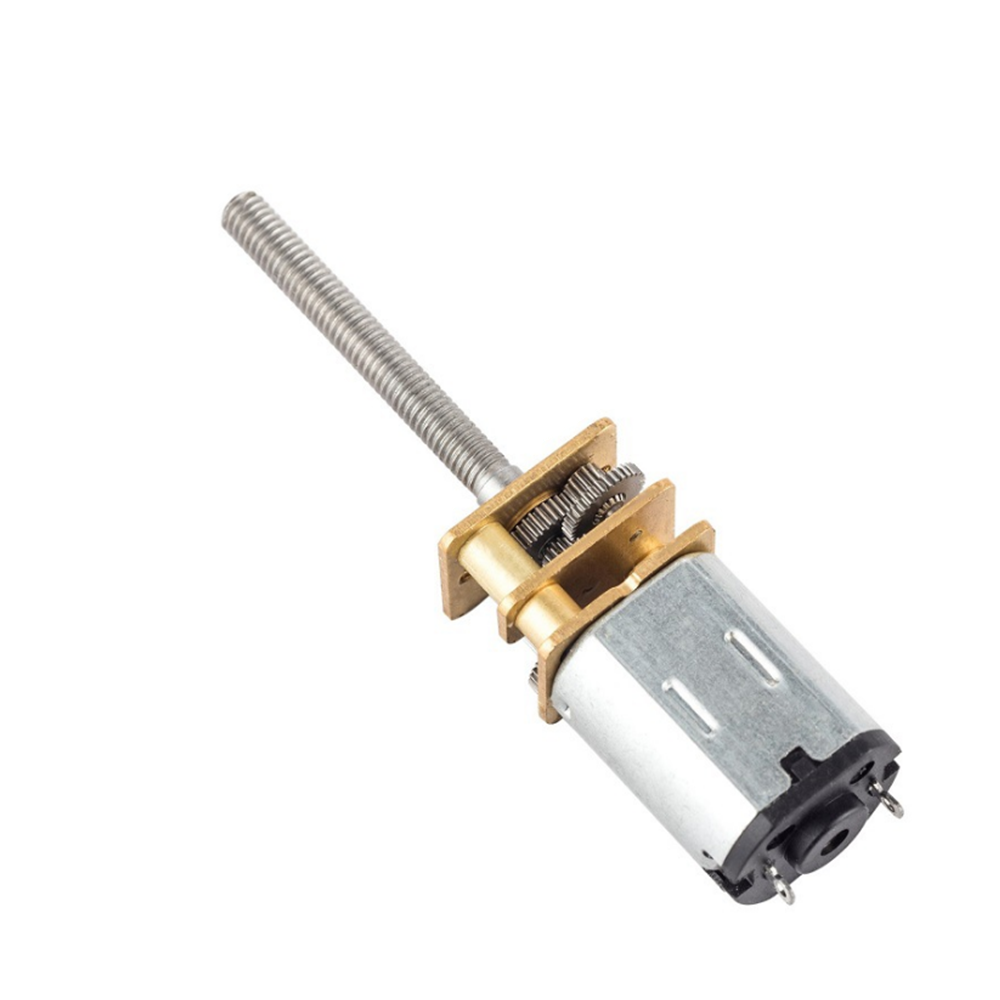

With M3 / M4 Screw Shaft

Length: 10 mm ~ 45 mm

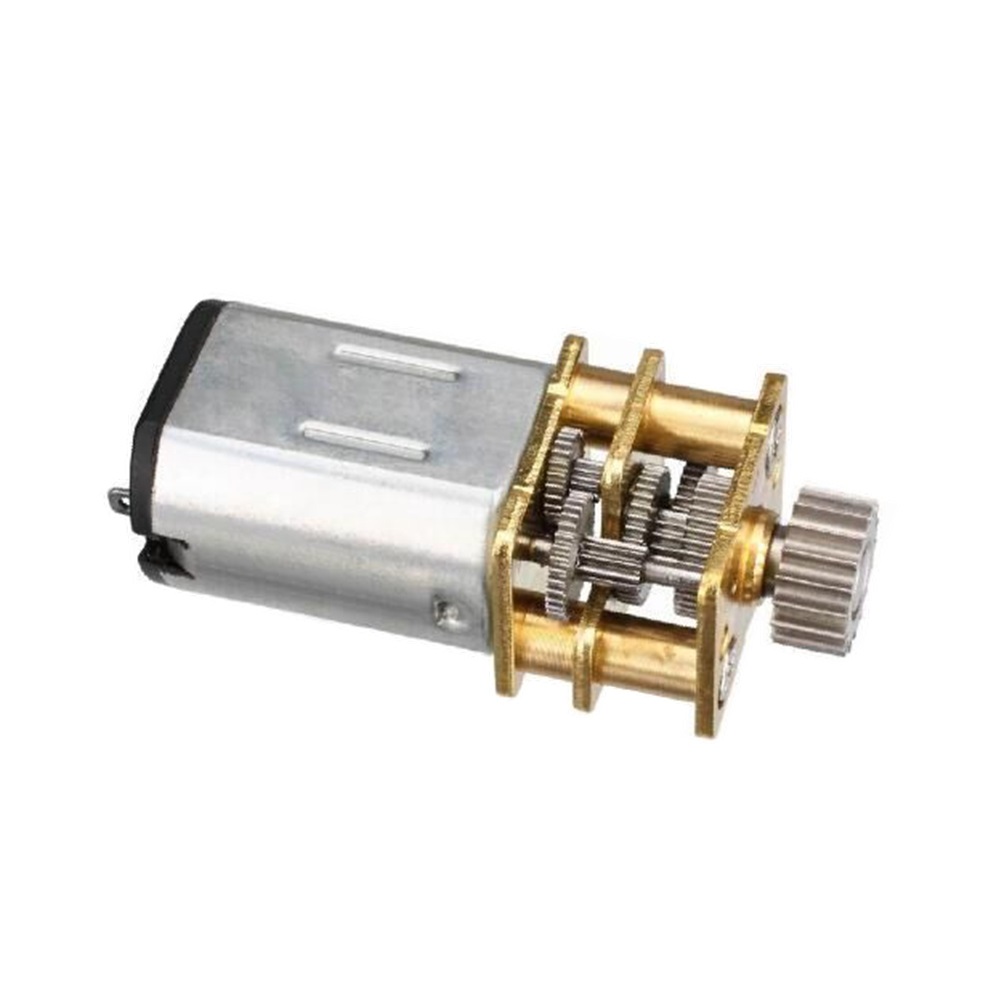

For 3D Pen Printer

Wheel size customized

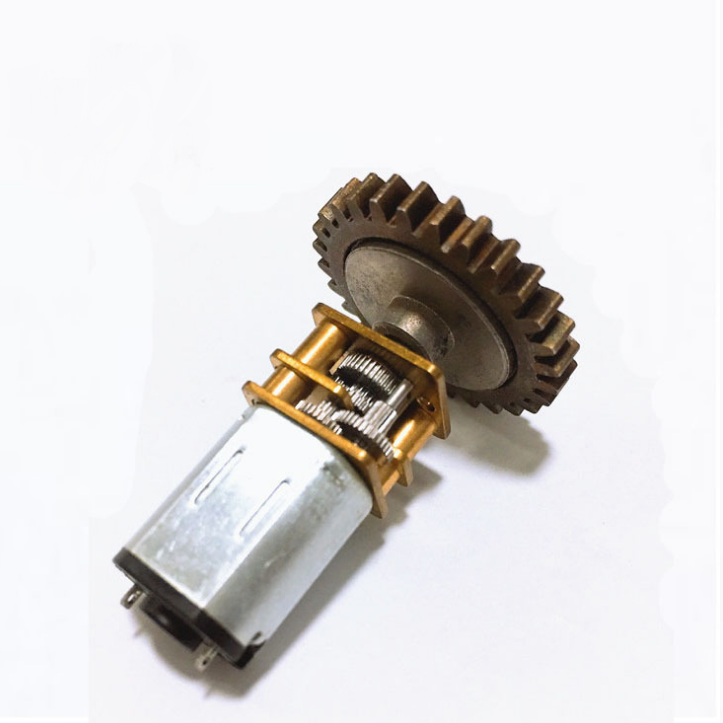

Big Metal Gear Wheel

Designed for door locks

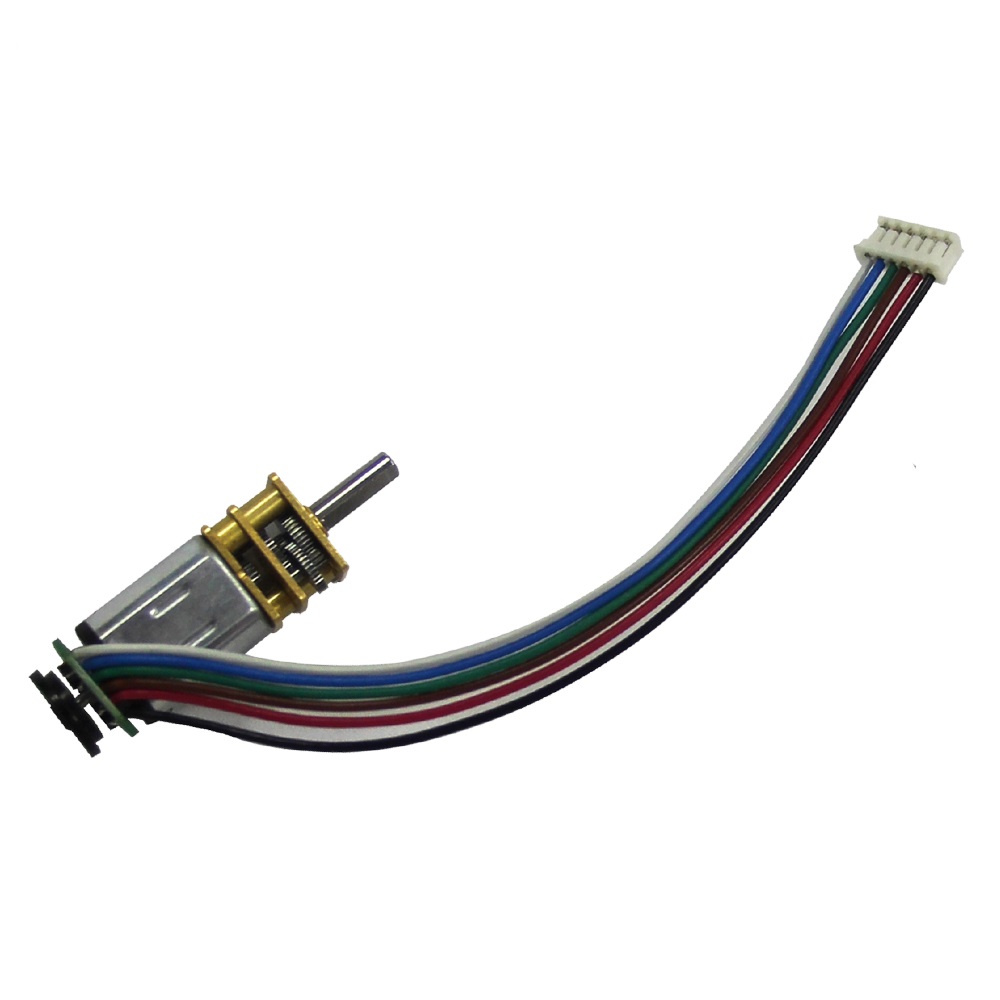

With Encoder

For precise instrument feedback

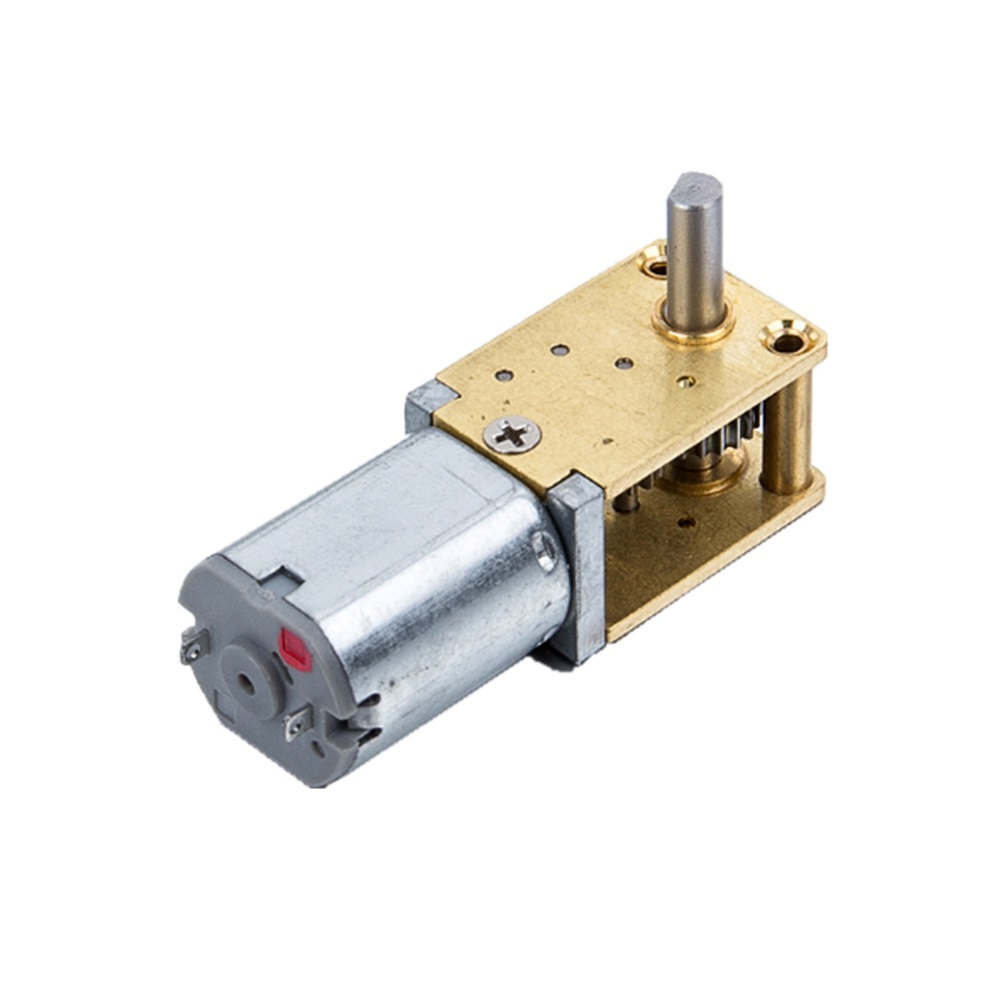

Right Angle Gearbox

Suitable for robot and lock integrations

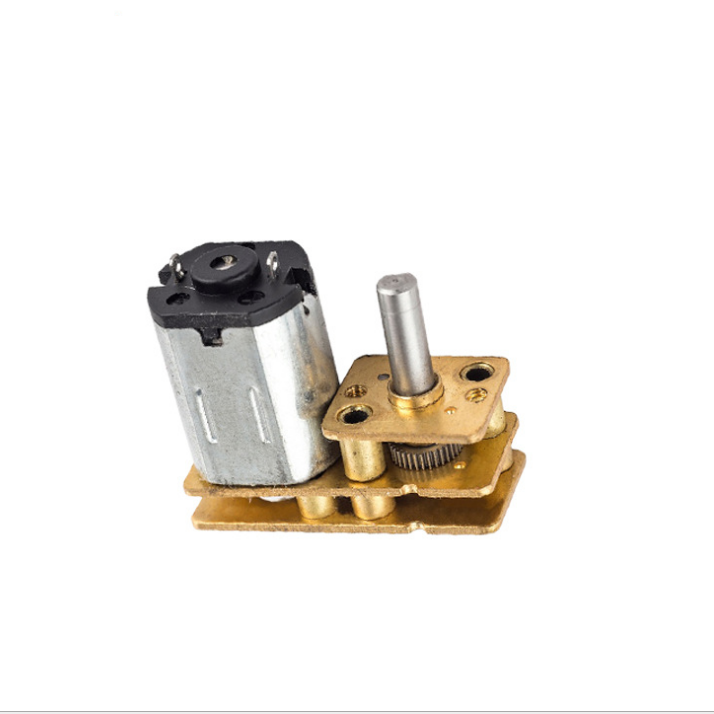

Back Output Shaft (U-Type)

Ideal for toy applications

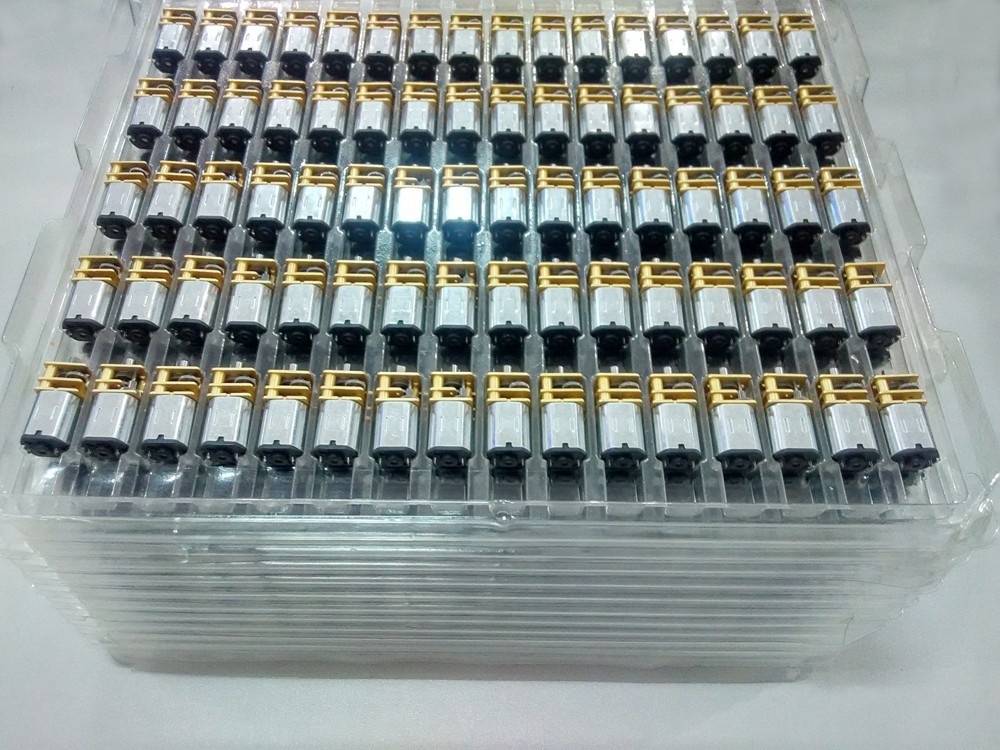

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Professional micro motor and engine manufacturer with 10 years of experience.

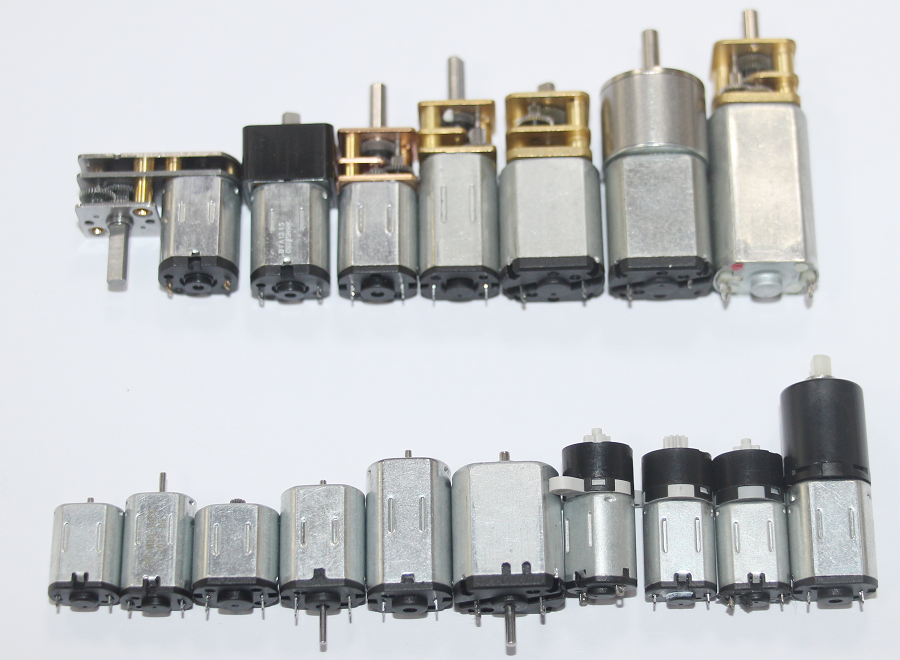

Brush Dc Motor: Φ6mm—Φ60mm
Brushless Dc Motor: Φ12mm-Φ42mm Coreless
Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
Stepper Dc Motor: Φ6mm—Φ24mm
Vibration Dc Motor: Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Shaft Length: 0.1-150mm
Gearbox Ratio: 1:4—1:5000

Frequently Asked Questions

Q1: What's your main products?

Answer: Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.

Q2: What's the main usage of the micro dc gear motor?

Answer: Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, the Sanitation industry, High-class toys, Banking Systems, Electronic and electrical tools, the automation industry, bank equipment, payment equipment, vending machines, power door locks, and electric door locks.

Q3: Do you accept customization?

Answer: Sure. As we have a strong design team, any questions or requests will receive our technical response and solution.

Q4: What kind of data do I need to provide if I want to order?

Answer: Please kindly provide us with your required voltage, speed, torque, and overall dimensional constraints.

Q5: What if I don't know the required specifications?

Answer: Please contact our sales team and describe your application requirements. We will recommend the best fit model for you.

Please feel free to contact us to talk about any motor questions!
