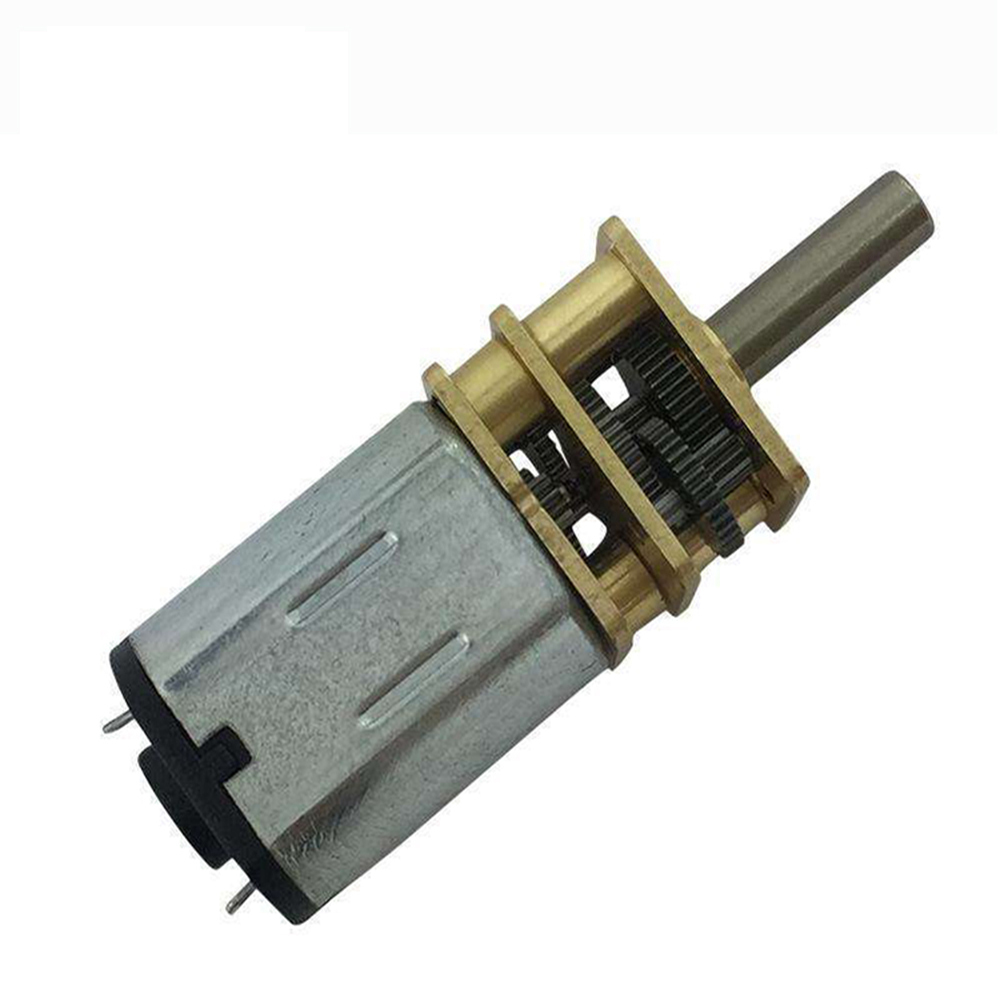

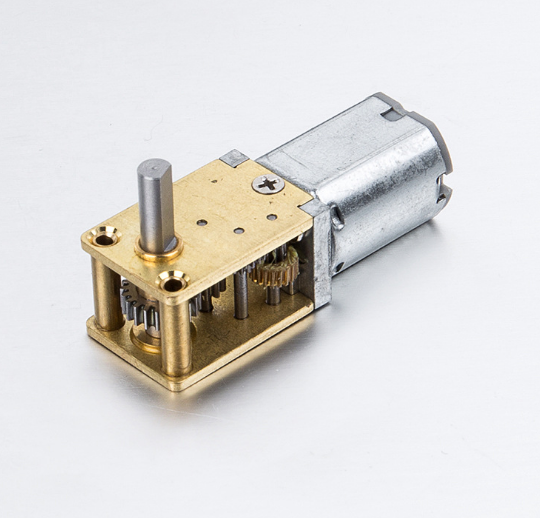

3V 6V 12mm N20 Mini Gear Motor Specifications
Model: DGA12-N20
- Rated Voltage: 1.5-12V
- Speed Range: 10-2000RPM
- Encoder integration capability
- Commonly applied in robotics and lock mechanisms
Features and Versatile Applications
- Widely used in robot systems, locks, automatic shutters, USB fans, slot machines, money detectors, coin refund devices, currency counting machines, towel dispensers, automatic doors, peritoneal machines, automatic TV racks, office equipment, and household appliances.
- Low noise design, low running current, and zero spark performance.
- Wide choice of reduction ratios: 1/3, 1/50, 1/100, 1/298, 1/300, 1/1000.
- Compact dimensions: 12.0mm * 24.0mm * 10.0mm (micro motor length is only 24mm).
- Samples available upon request; MOQ starts at 100 pieces with a typical lead time of 15-20 days.

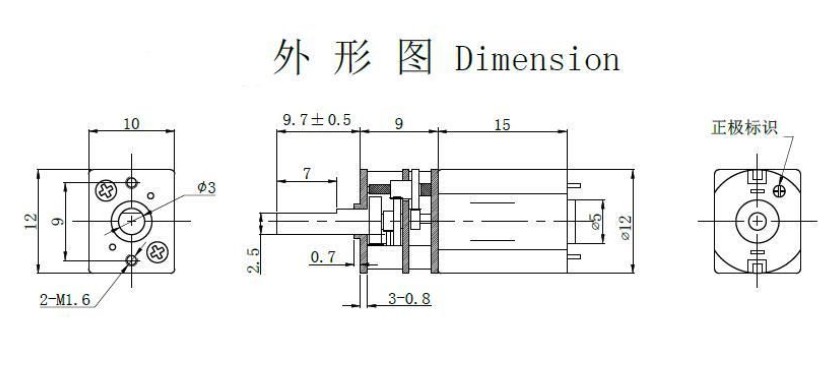

Product Photos & Dimensional Views

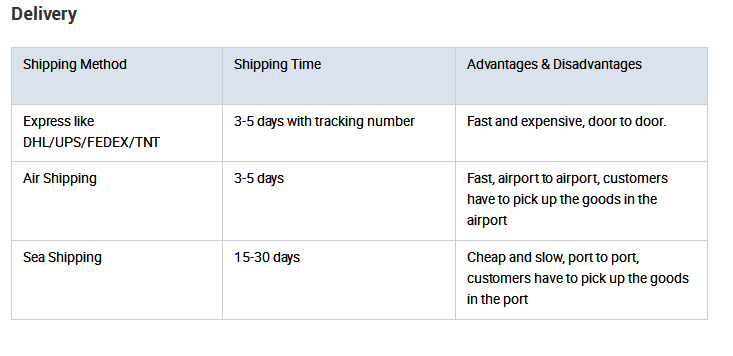

Packaging & Delivery Layout

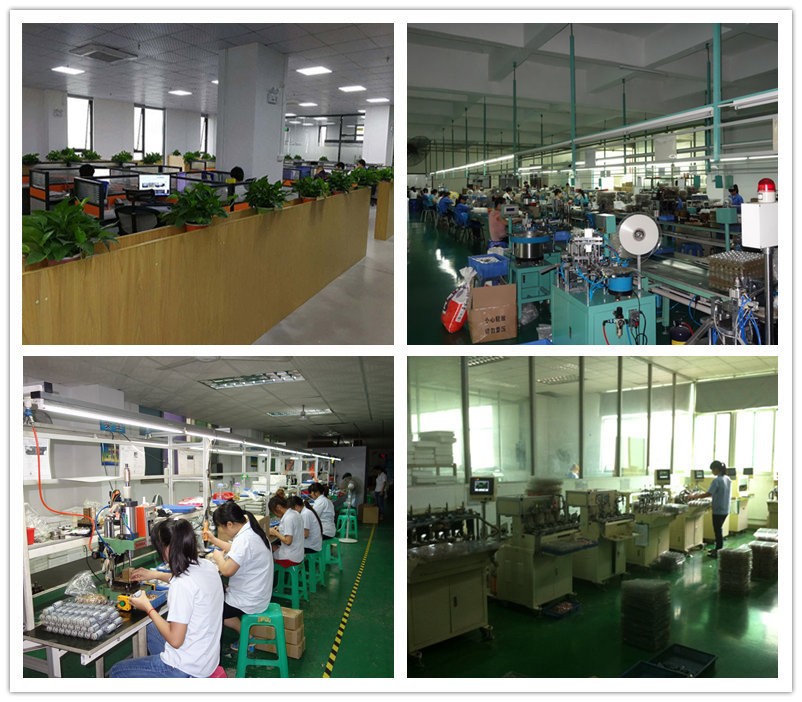

Development & Production Scope
Since establishment in 2003, there has been a commitment to the development and production of micro motors, focusing on four major product series: Micro DC motors, DC gear motors, coreless motors, and brushless motors. All models find frequent use in consumer electronics, electrical toys, home appliances, office automation, medical instruments, power tools, and automotive integrations.
Product Portfolio & Specifications Scope
- Main Ranges: Dia 4mm to 100mm DC Micro Motors, Automotive DC Motors, Coreless Brushless Motors, Gear Motors, Brush DC Motors, Spur Gear Motors, Vibration Motors.
- Diameter Range: 4mm - 100mm
- Voltage Range: 1.5V - 42V DC (AC rectification options: 100V, 110V, 220V, 230V, 240V, etc.)
- Speed Range: 1 RPM - 30,000 RPM
- Stall Torque Range: 1 g.cm - 30 kg.cm
- General Applications: Smart appliances, electric tools, high-precision toys, precision instruments, medical equipment, personal care electronics, automotive actuators, and audio-visual setups.
Frequently Asked Questions (FAQ)
What are the primary applications for the 12mm N20 mini gear motor?
The N20 mini gear motor is commonly used in electronic locks, robotic systems, USB fans, automatic shutters, currency detectors, coin return devices, medical equipment, office automation devices, and smart household appliances.
What input voltage options are supported by the N20 micro motor series?
This micro motor series operates on a rated voltage range from 1.5V up to 12V DC. The default standard model operates efficiently at 3V, 5V, or 6V depending on the targeted application.

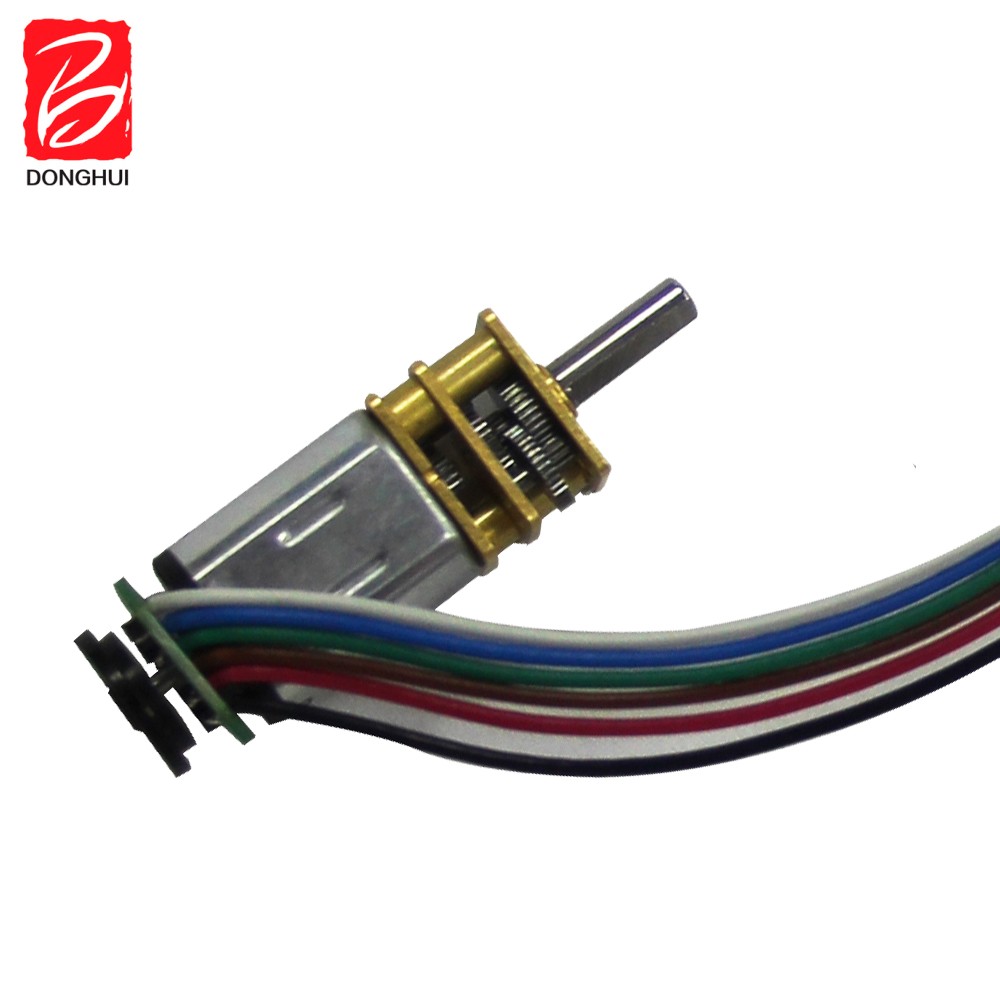

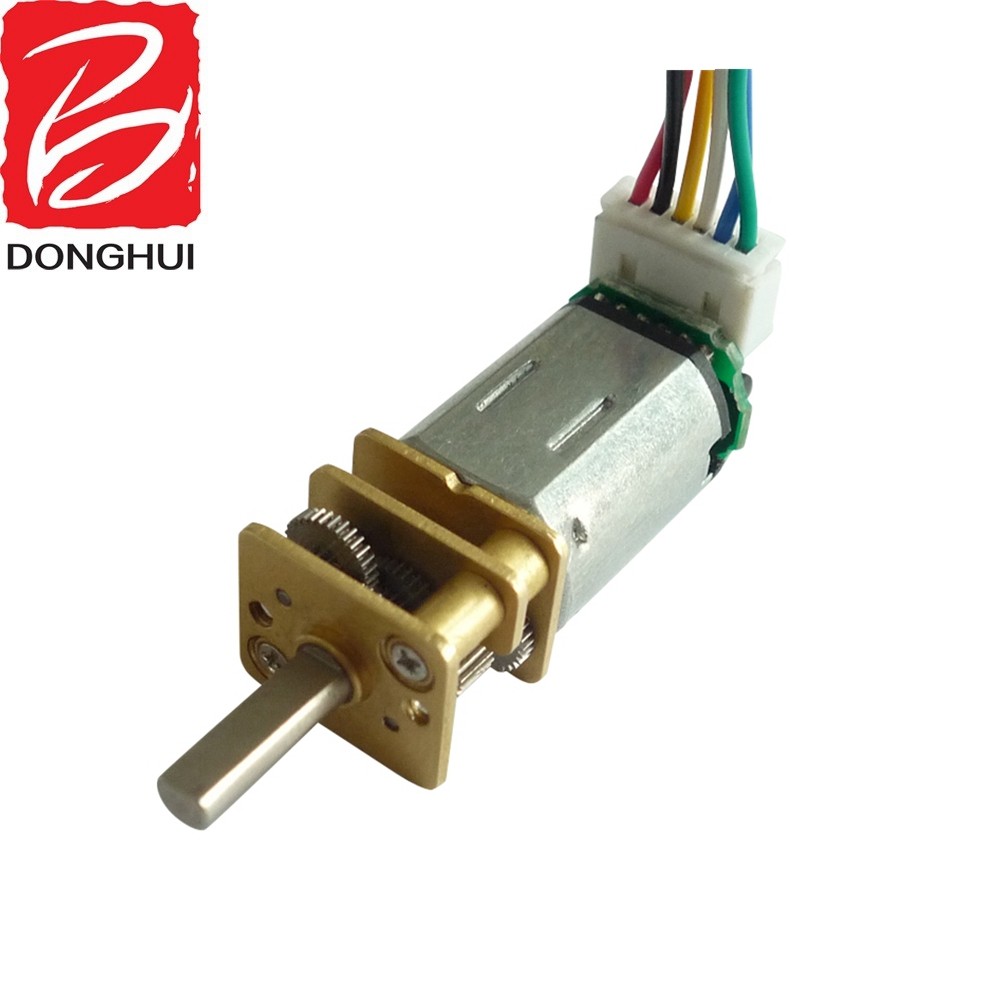

Can this mini gear motor be customized with an encoder?
Yes, the DGA12-N20 micro gear motor is designed to be highly customizable and can be equipped with an encoder to supply precise speed and positional feedback.
What gear reduction ratios are available for this motor?
We offer various reduction ratios to match specific torque and speed requirements, including standard gear ratios such as 1/3, 1/50, 1/100, 1/298, 1/300, and 1/1000.

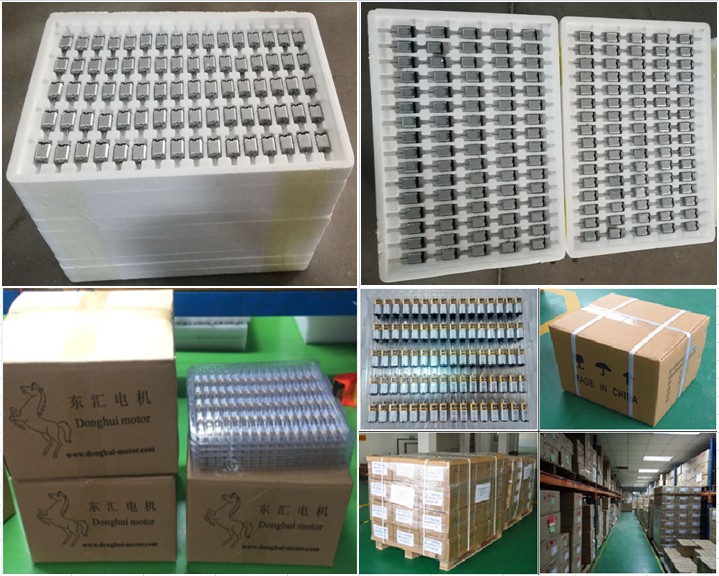

What are the typical packaging configurations and bulk shipping details?
The products are packed systematically with 80 pieces per tray, yielding 1200 pieces per standard shipping carton. The carton dimensions are 11" x 9" x 6.75" with a typical production lead time of 25 days.
Do you supply product samples prior to placing a bulk order?
Yes, initial evaluation samples can be requested. The minimum order quantity (MOQ) for production runs starts at 100 pieces, with a sample delivery window of approximately 15 to 20 days.
