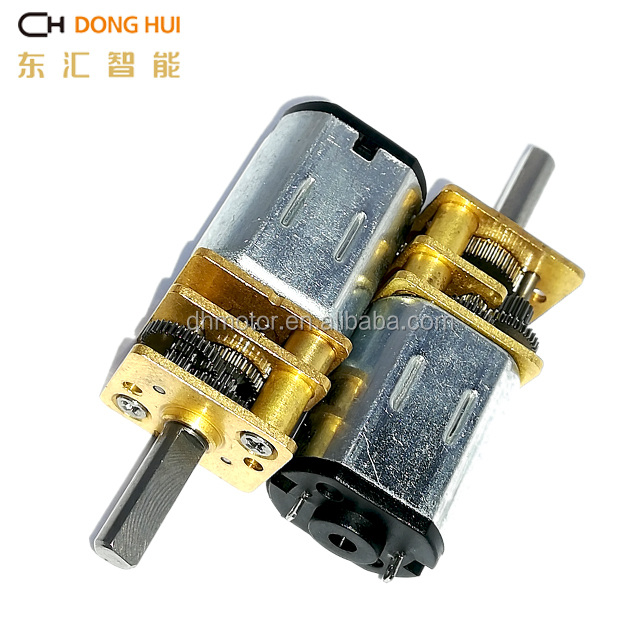

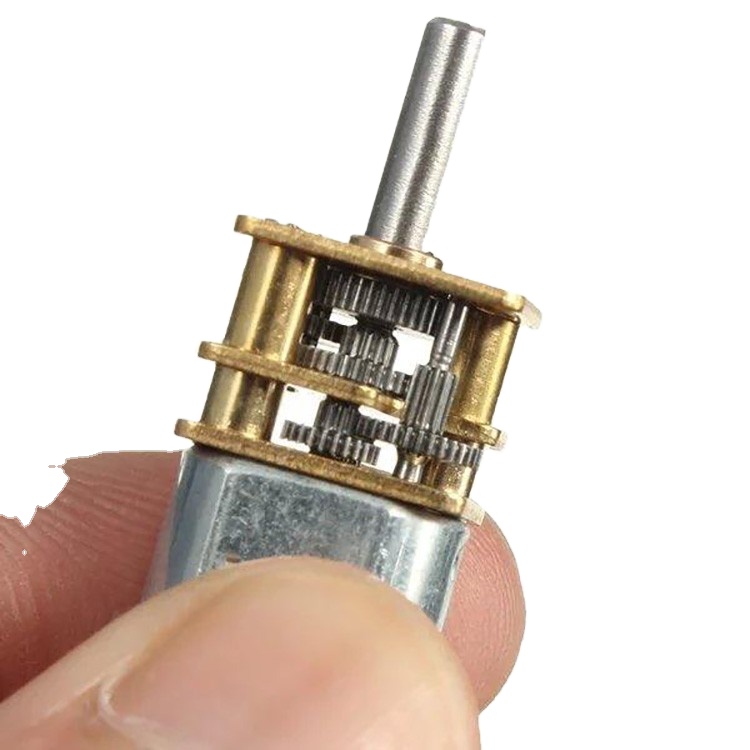

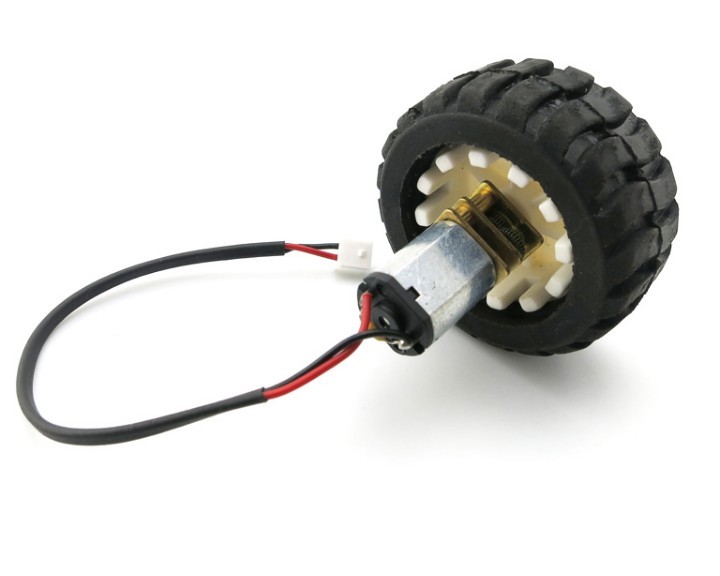

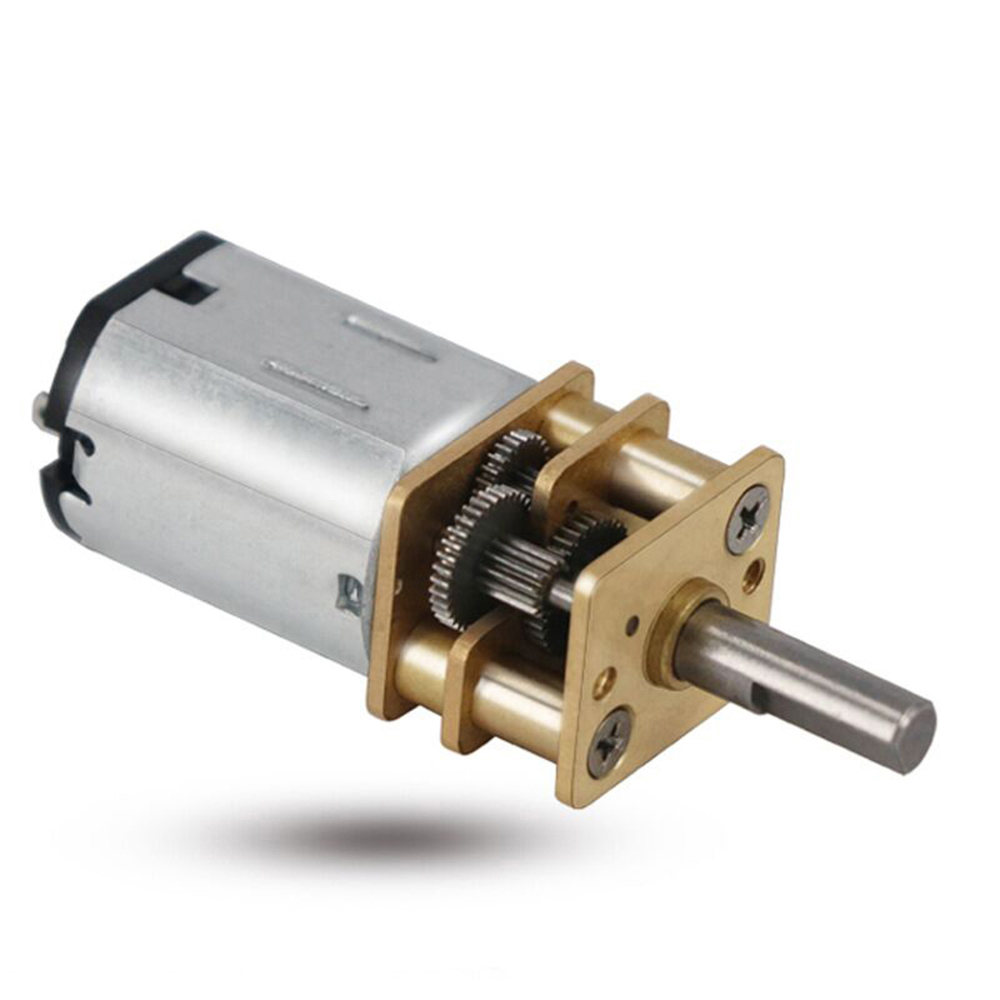

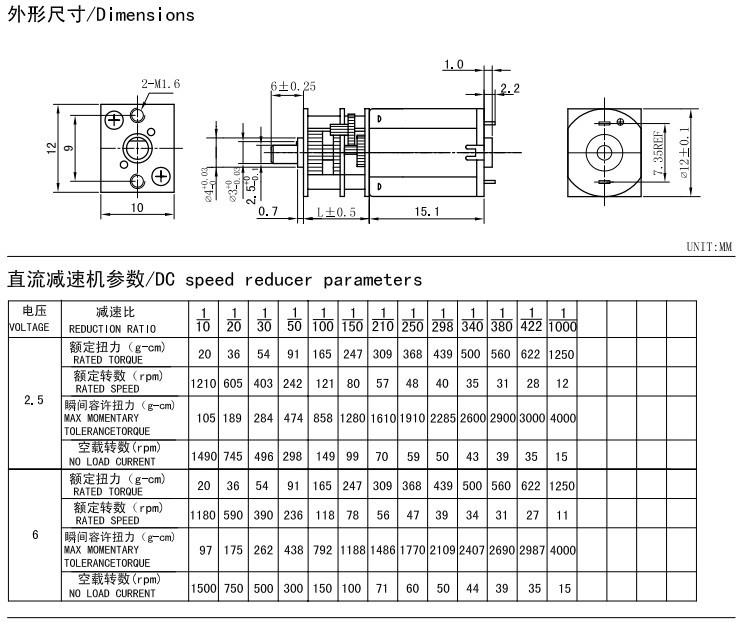

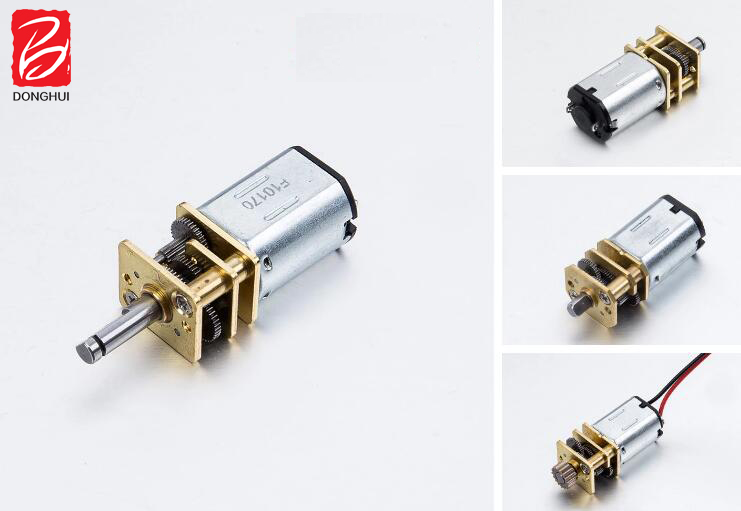

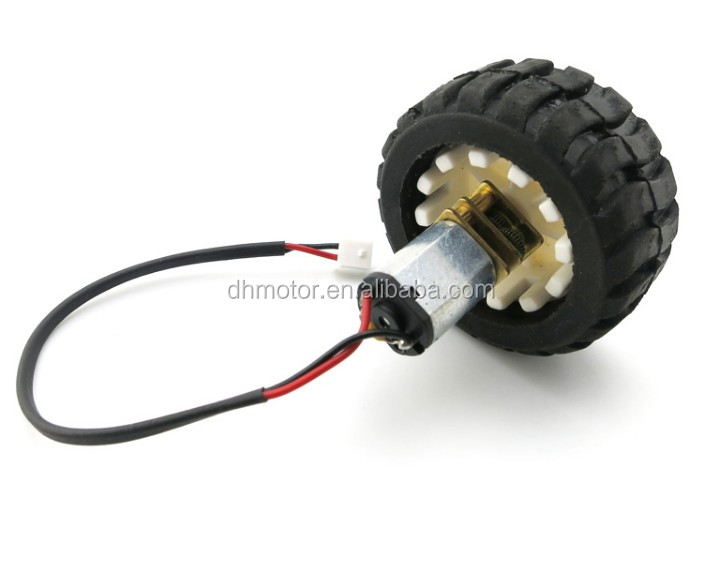

N20 GEAR MOTOR
Note:
The voltage, speed, torque, current, shaft length can be adjustable for your request.
- Size: 12mm diameter, 24mm length
- Motor Type: DC Brush Motor
- Application: Personal care, Home application, Power tool, Business equipment, Medical equipment
| Product Name |
DC GEAR MOTOR N20 |
| Rated Voltage |
3.0~12.0V |
| On Load Speed |
10~2000rpm |
| On Load Current |
0.02A~0.06A |
| Stall Torque |
50~5000g.cm |
| Stall Current |
3.5A Max |
| Life Span |
500hours Max |

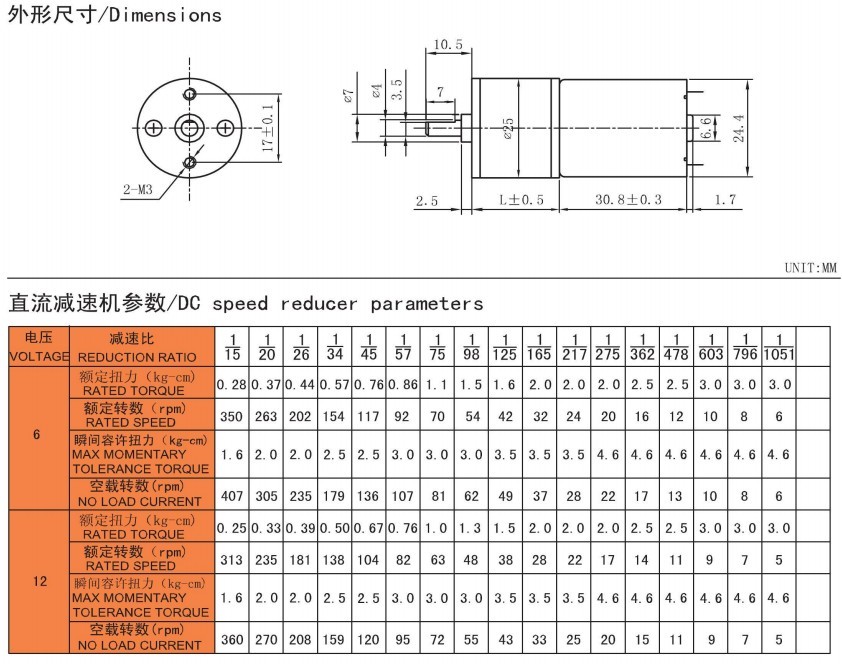

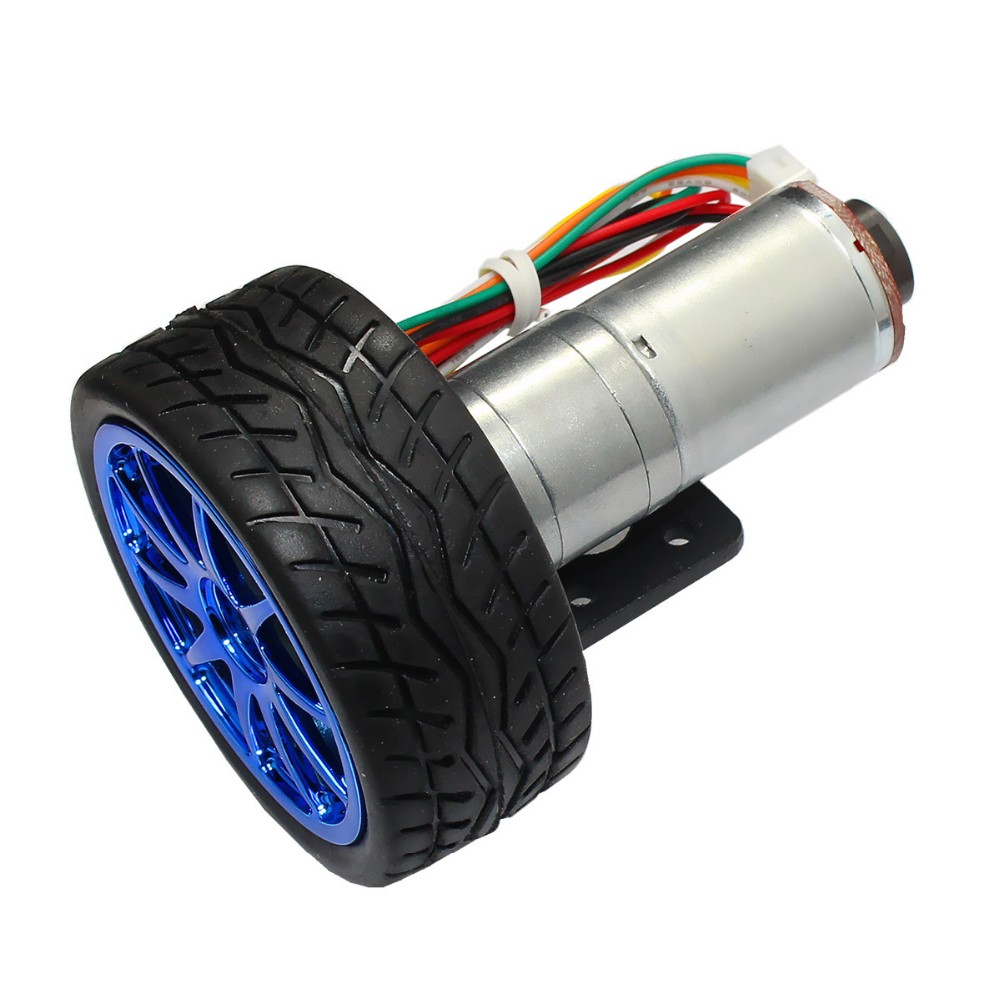

DGA25-370 GEAR MOTOR
Note:
The voltage, speed, torque, current, shaft length can be adjustable for your request.
- Size: 24mm diameter, 39mm length
- Motor Type: DC Brush Motor
- Application: Personal care, Home application, Power tool, Business equipment, Medical equipment
| Product Name |
DGA25-370 GEAR MOTOR |
| Rated Voltage |
3.0~24v |
| On Load Speed |
5000rpm |
| On Load Current |
0.6A |
| Stall Torque |
440g.cm |
| Stall Current |
3.5A |
| Life Span |
2000 hours |
Our Company
Founded in 2001, we are a private high-tech enterprise, mainly engaged in the design, development, production, sale and service of precision DC motors and gear motors.
Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras and domestic appliances.
OUR ADVANTAGES:
- 20 years experience to produce dc motor and dc gear motor.
- Military enterprise as quality assurance, gears from Military enterprise.
- Strong Production and R & D Ability.
- 14 Years Export Experience in Germany, Japan and USA.
Frequently Asked Questions
1What are your main products?
We offer Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Electric motors, Brush DC motors, Brushless DC motors, Spur Gear motors, Micro motors, Vibration motors, and more.
2What are the main applications of your micro DC gear motors?
Our motors are widely used in Home Appliances, Office Equipment, Healthcare appliances, the Sanitation industry, High-class toys, Banking Systems, Electronic and electrical tools, industrial automation, payment equipment, vending machines, and power/electric door locks.
3Do you accept customization for motors?
Yes. With our experienced R&D team, we can customize key specifications such as voltage, speed, torque, current, and shaft dimensions to match your project needs.
4What information should I provide when ordering or requesting a quote?
Please provide your requirements regarding the voltage, speed, torque, current, duty cycle, and the overall physical dimension constraints.
5What should I do if I am not sure about the required technical specifications?
Please contact our sales team. We will guide you through the process, answer your questions patiently, and help you select the exact motor configuration for your application.
6How do you ensure the quality of your gear motors?
We maintain strict quality assurance processes and source high-precision components, including gears manufactured under military-level enterprise standards, ensuring reliability and long service life.
