Robust DC Motor
Robust DC Motor
| Place of Origin: | Guangdong China (Mainland) | Brand Name: | - | Model Number: | DBL2430-GB |
| Usage: | Fan, Home Appliance | Certification: | ROHS | Type: | Micro Motor |
| Torque: | 9.8mNm | Construction: | Permanent Magnet | Commutation: | Brushless |
| Protect Feature: | Drip-proof | Speed(RPM): | 9260rpm no load | Continuous Current(A): | 0.2A no load |
| Output Power: | 1W~10W | Voltage(V): | 12V | Efficiency: | IE 1 |
| Rated load speed: | 6000rpm | Rated load torque: | 9.8mNm | Rated load current: | 0.62A |
| Starting torque: | 38.2mnm | Starting current: | 1.8A | The length of the motor: | 30.8±0.3mm |
| Shaft dia: | 2.0mm | Shaft length: | Can be customized | Application: | Air pump |
| Packaging Detail: | 1.Export standard packing; 2.Our factory standard packing; 3.Packaging can be customized according to customer's request. |
| Delivery Detail: | 15 days for samples, 25-30 DAYS for batch. |

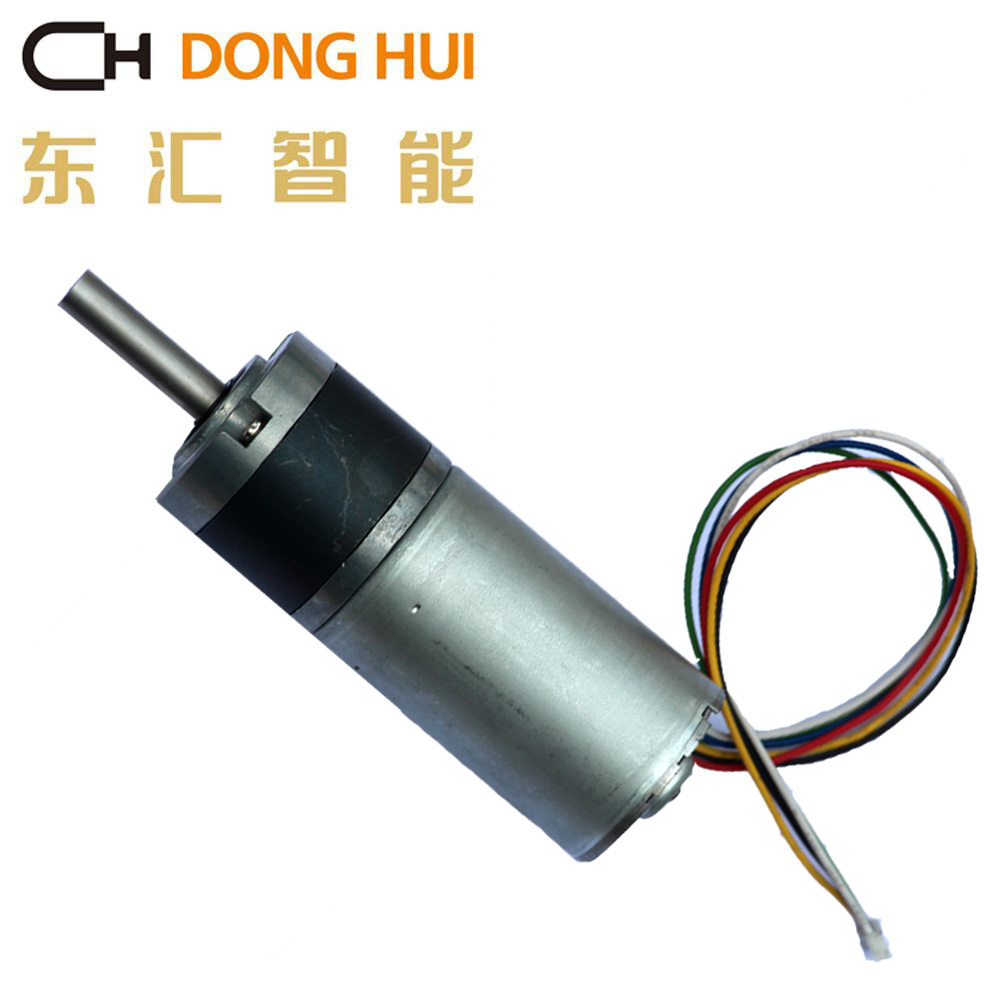

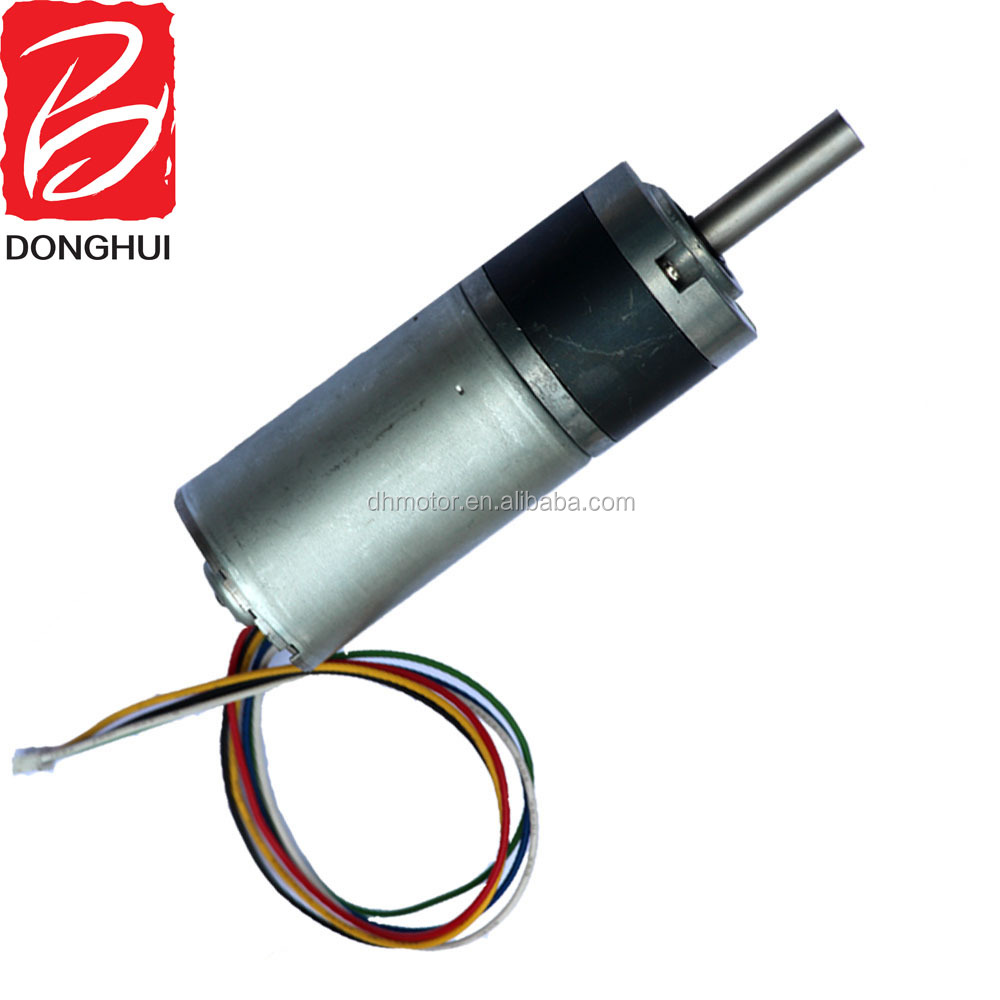

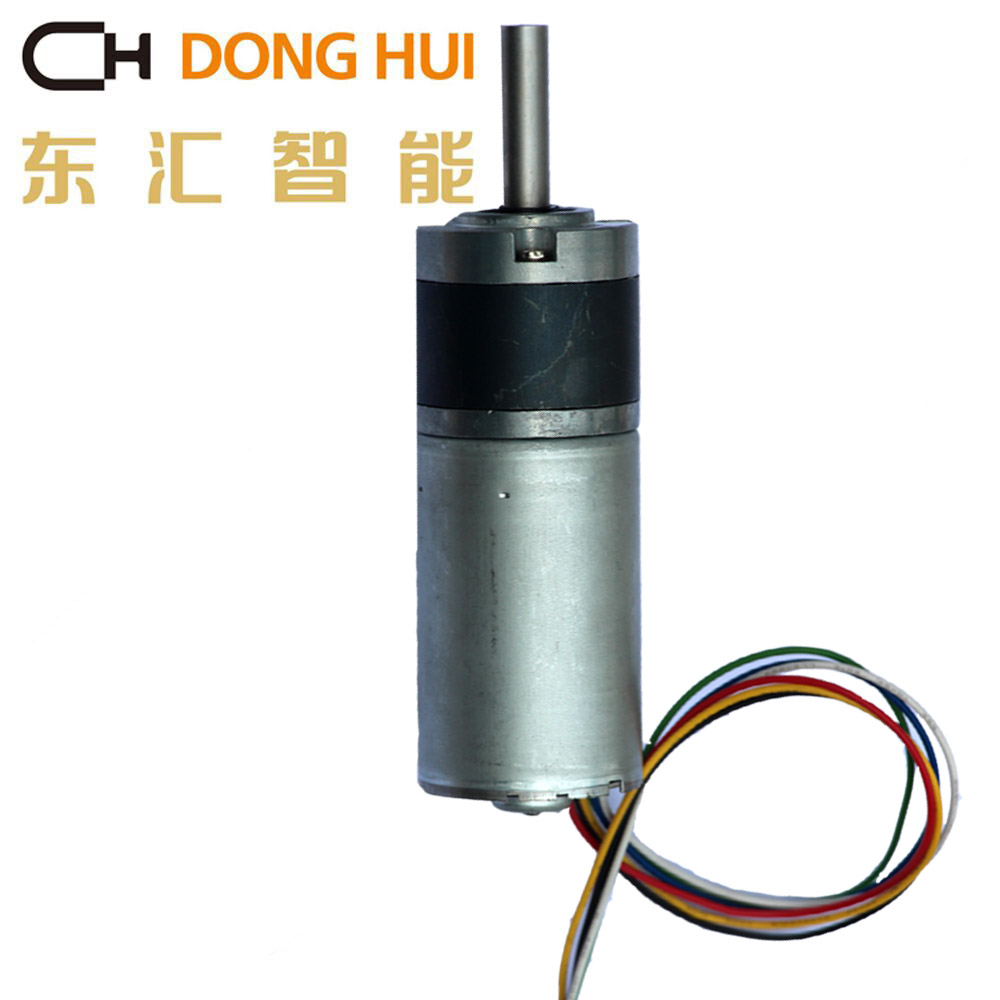

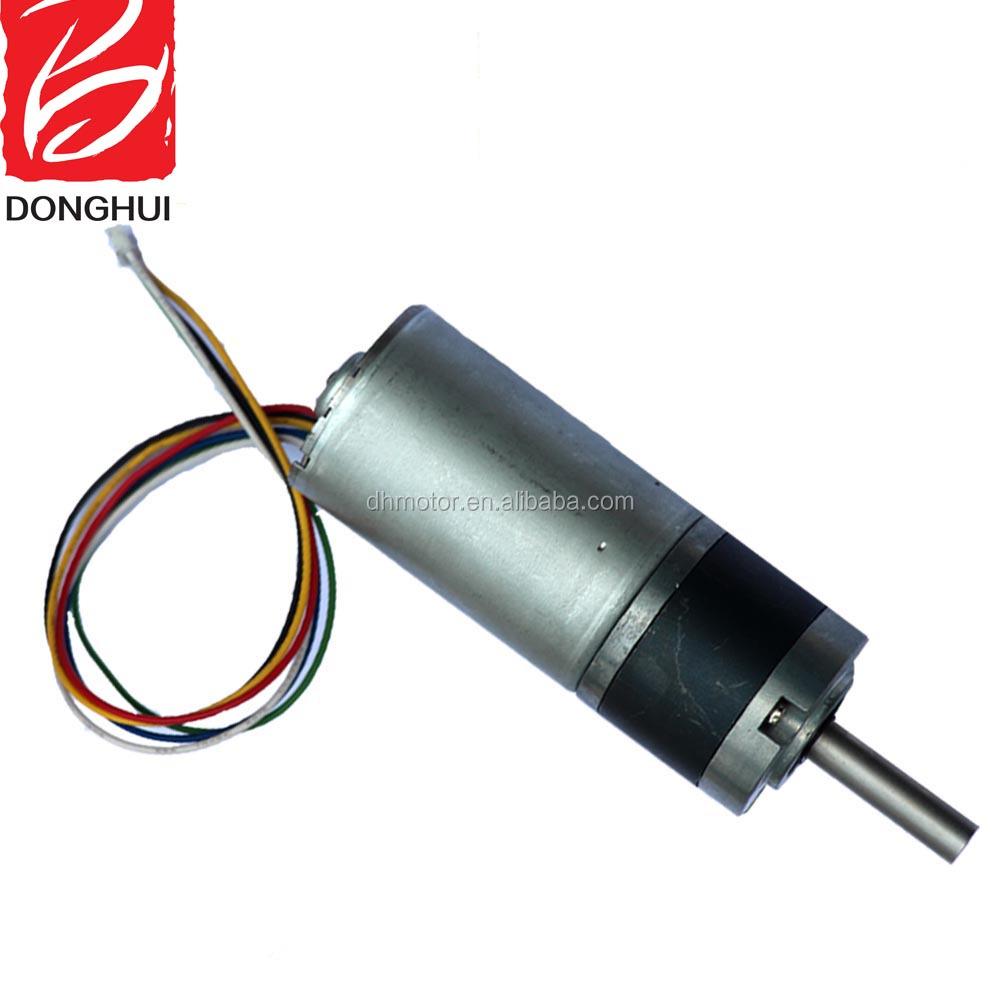

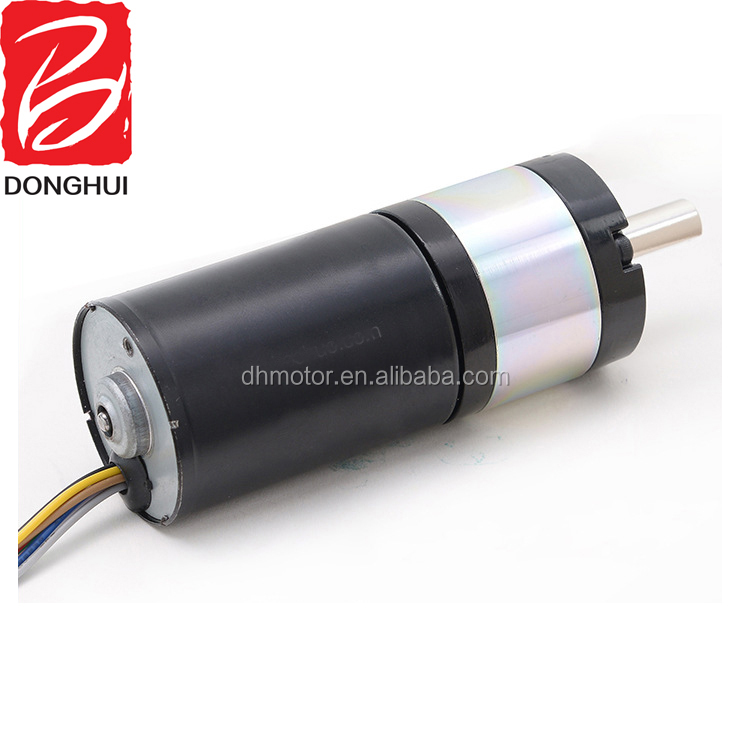

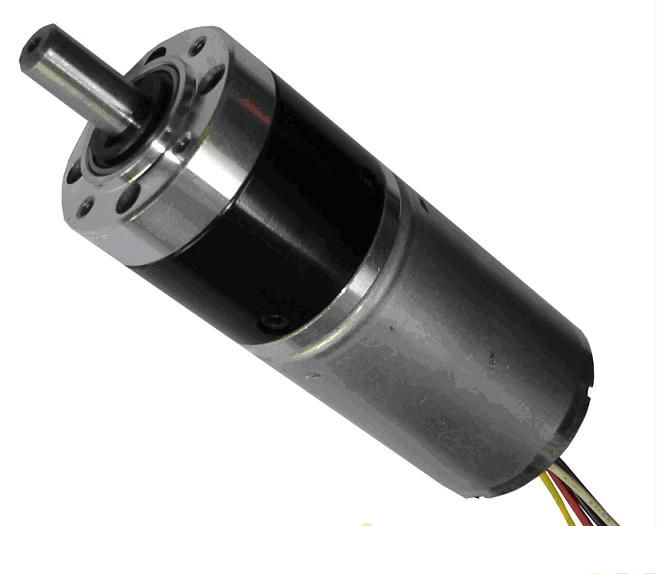

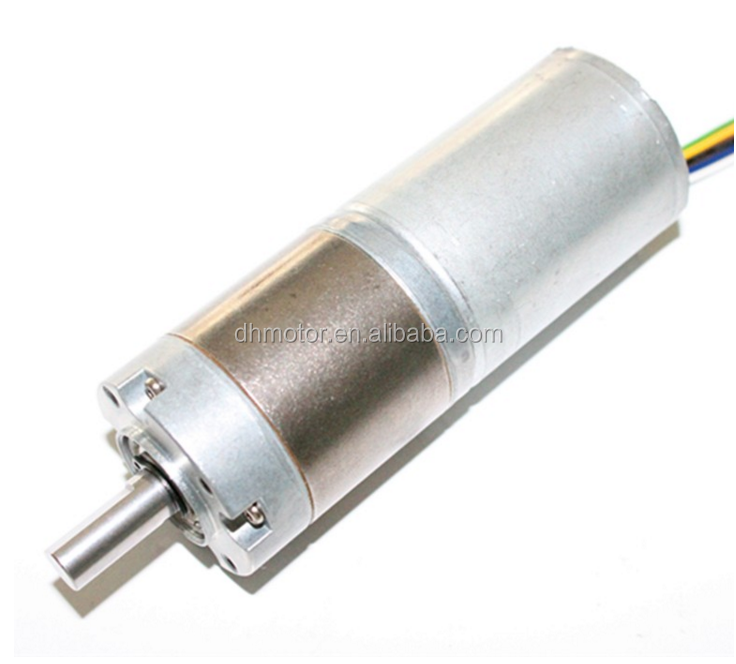

22mm 24mm 28mm 32mm 36mm 12v brushless planetary gear motor, 12v brushless gear motor with planetary gear box
1. size:24*30MM
24mm 24v 12v dc brushless planetary gear motor
24mm 28mm 32mm 36mm 12v brushless planetary gear motor
Since established in 2007, we have been committed to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:
