Robust DC Motor
Robust DC Motor
| Place of Origin: | Guangdong China (Mainland) | Model Number: | DB2430 |
| Usage: | Fan, Home Appliance | Certification: | ROHS |
| Type: | Micro Motor | Torque: | 9.8mNm |
| Construction: | Permanent Magnet | Commutation: | Brushless |
| Protect Feature: | Drip-proof | Speed(RPM): | 9260rpm no load |
| Continuous Current(A): | 0.2A no load | Output Power: | 1W~10W |
| Voltage(V): | 12V | Efficiency: | IE 1 |
| Rated load speed: | 6000rpm | Rated load torque: | 9.8mNm |
| Rated load current: | 0.62A | Starting torque: | 38.2mnm |
| Starting current: | 1.8A | The length of the motor: | 30.8±0.3mm |
| Shaft dia: | 2.0mm | Shaft length: | Can be customized |
| Application: | Air pump |
| Packaging Detail: | 1.Export standard packing; 2.Our factory standard packing; 3.Packaging can be customized according to customer's request. |
| Delivery Detail: | 15 days for samples, 25-30 DAYS for batch. |
Specifications

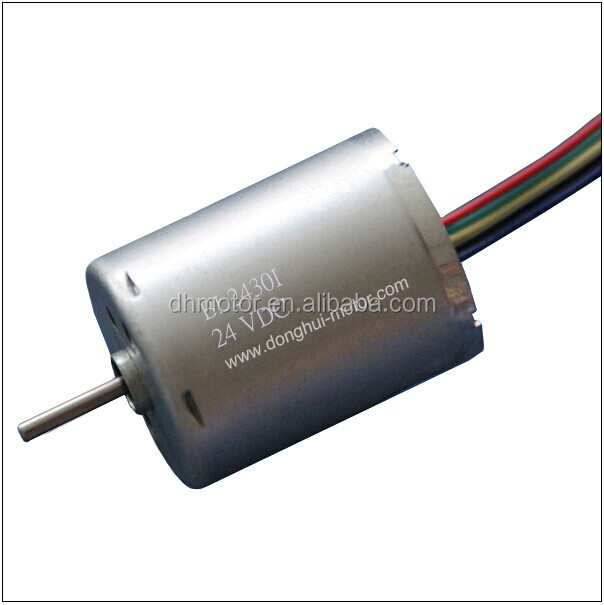

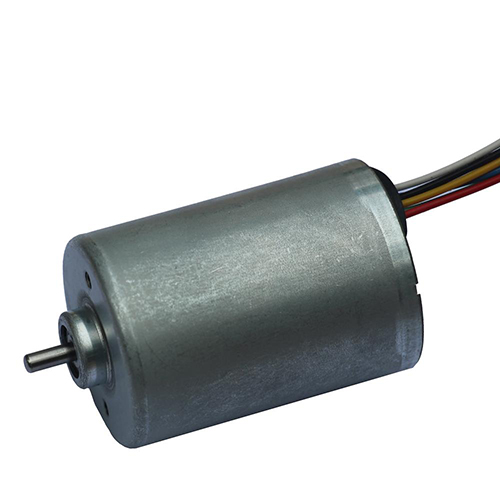

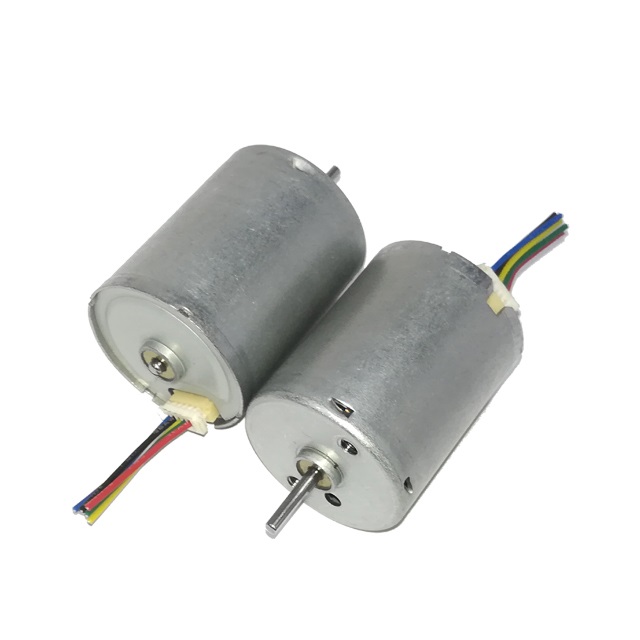

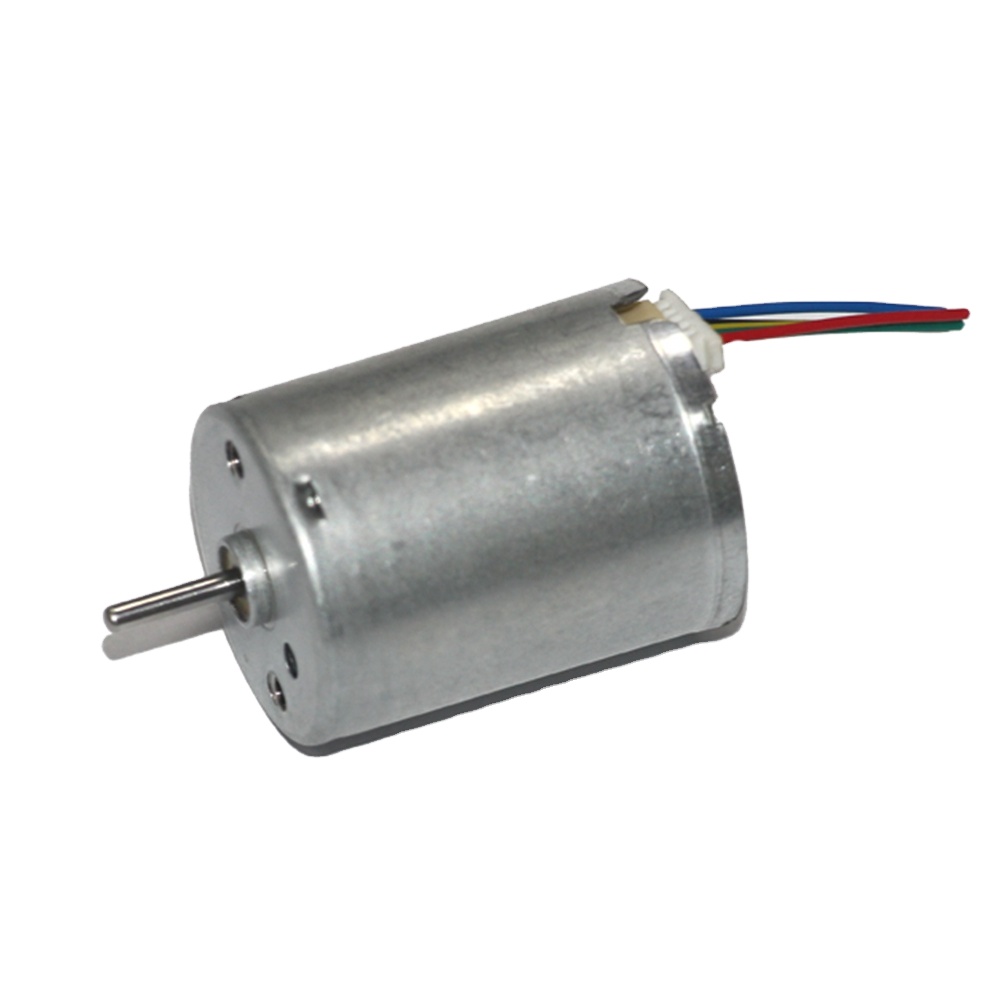

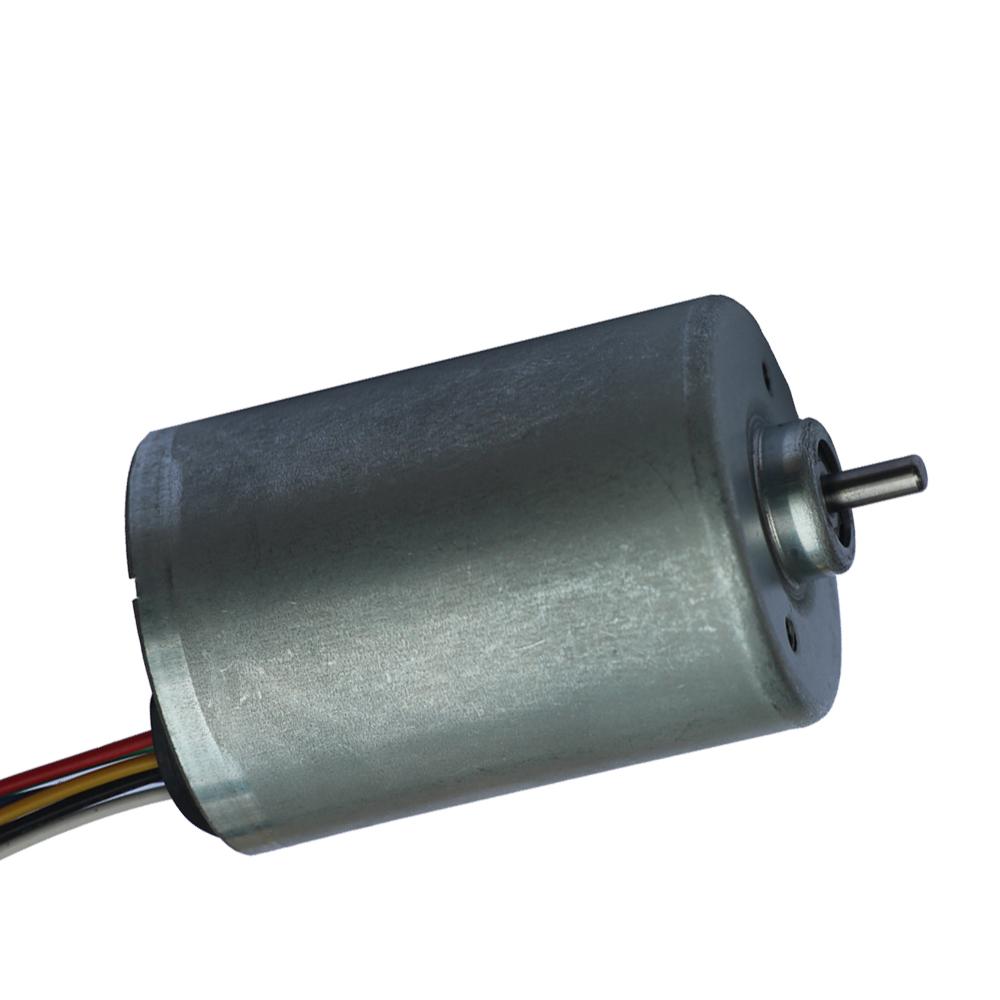

24mm 2430 motor 12v bldc electric fan motor, long life 12v bldc motor for fan
1. size: 24*30MM
2. Long life, low noise, low EMI;
3. CW & CCW, Signal function available;
4. Locked rotor protection, Stepless speed regulation.
24mm 24v 12v dc bldc motor
