Specifications:
12v micro dc motor fc 280sc 18180 dc motor for car door lock actuator
12V Car DC Motor car lock actuator motor (12v 9600rpm)
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
Application: Door lock Actuator, Automotive Product

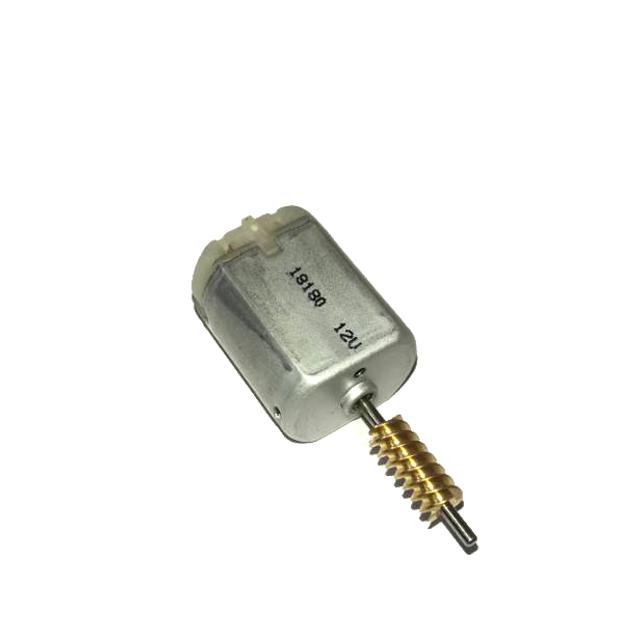

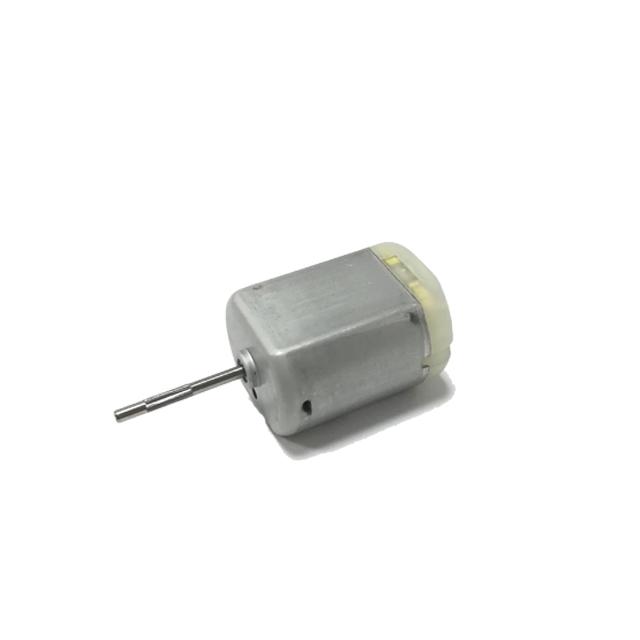

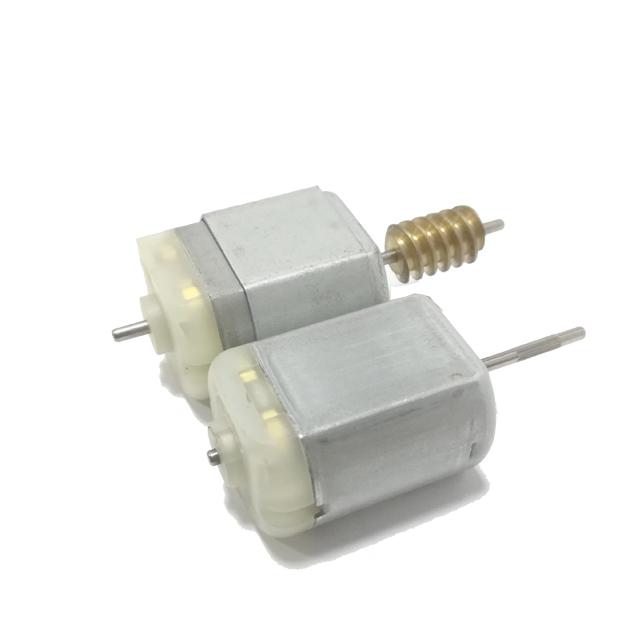

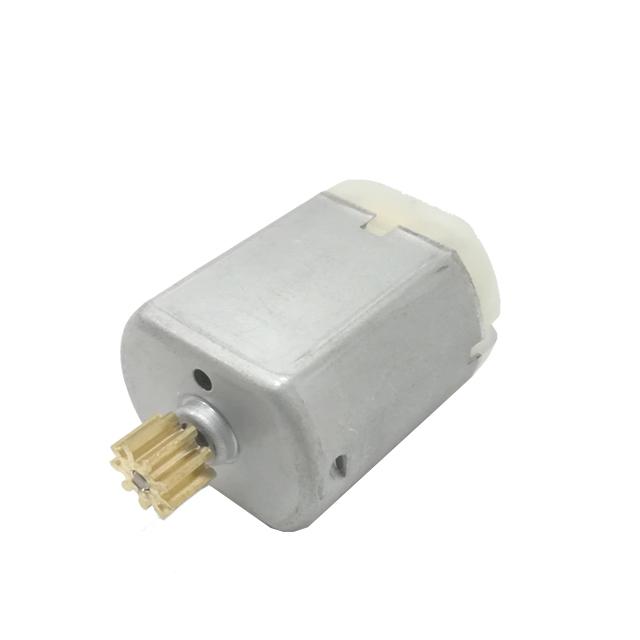

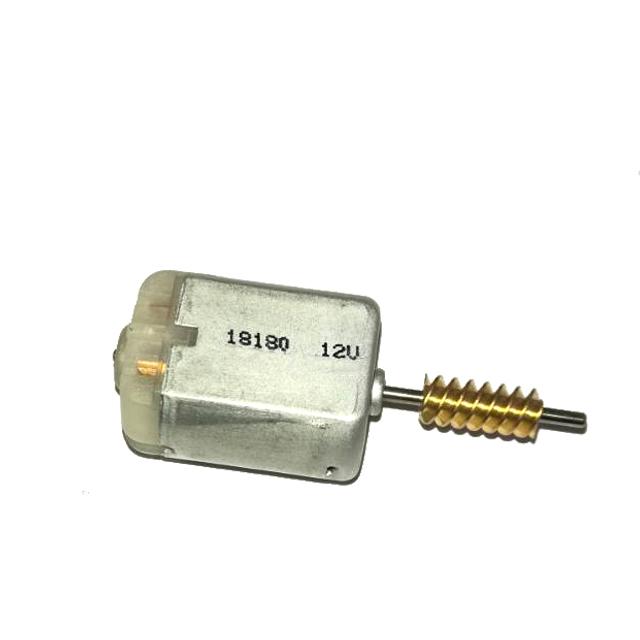

Photo: 12v dc car door lock motor fc 280sc 18180 dc motor
Outline Drawing and basic parameters (fc-280sc-18180)
About Us
Since establishment in 2003, we have been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.
- Our Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor, etc.
- Product Size Range: Diameter 4-100mm
- DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed Range: 1 RPM - 30,000 RPM
- Stall Torque Range: 1g.cm - 30kg.cm
- Applications: Home appliances, Power Tools, Toys & Models, Precision Instruments, Office equipment, Personal care products, Automotive, Audio & Visual equipment, etc.
Frequently Asked Questions
What is the primary application for the FC-280SC-18180 micro DC motor?
This motor is primarily designed for automotive door lock actuators, but is also commonly used in scanners, office automation, and other automotive products.
Is the rotation of this motor reversible?
Yes, this micro DC motor features reversible rotation, allowing it to turn both clockwise and counter-clockwise depending on your control input.
What certifications does this micro motor comply with?
Our micro DC motor models, including the FC-280SC-18180, are fully compliant with ROHS environmental safety certifications.
Can you customize the speed, voltage, and shaft configuration?
Yes, we provide customization options. We can customize motor designs across a voltage range of 1.5V-42V, speeds from 1 RPM to 30,000 RPM, and adjust stall torque as required.
What are the standard packaging and delivery configurations?
The standard packaging configuration is 500 pieces per carton, with carton dimensions of 39x29x46 CM. Standard delivery is typically completed within 30 days.
What type of brushes and bearings does this motor use?
The motor utilizes carbon brushes for stable commutation and oil-impregnated bearings to ensure a balance of low operating noise and long performance life.
