Specifications & Features

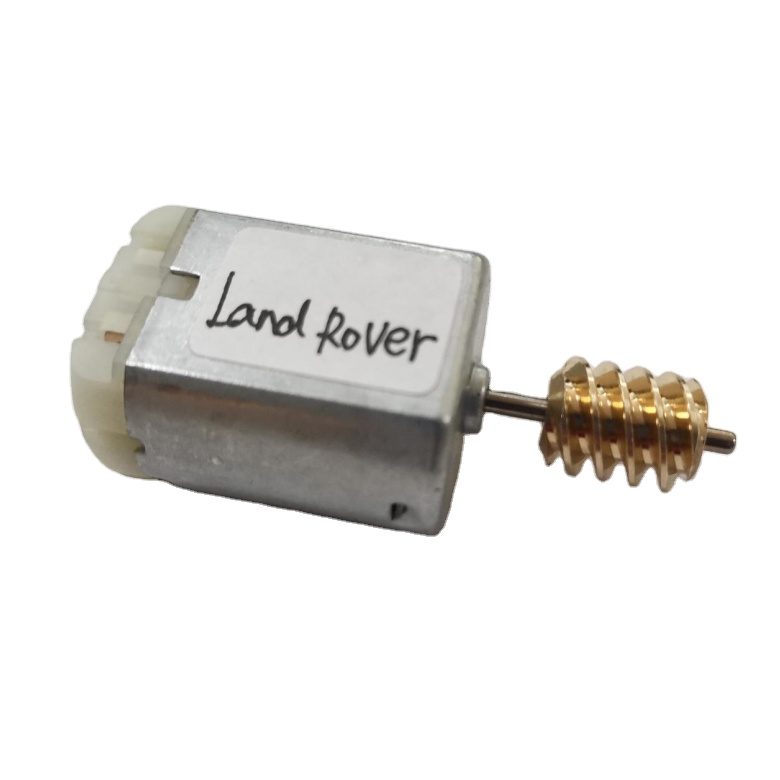

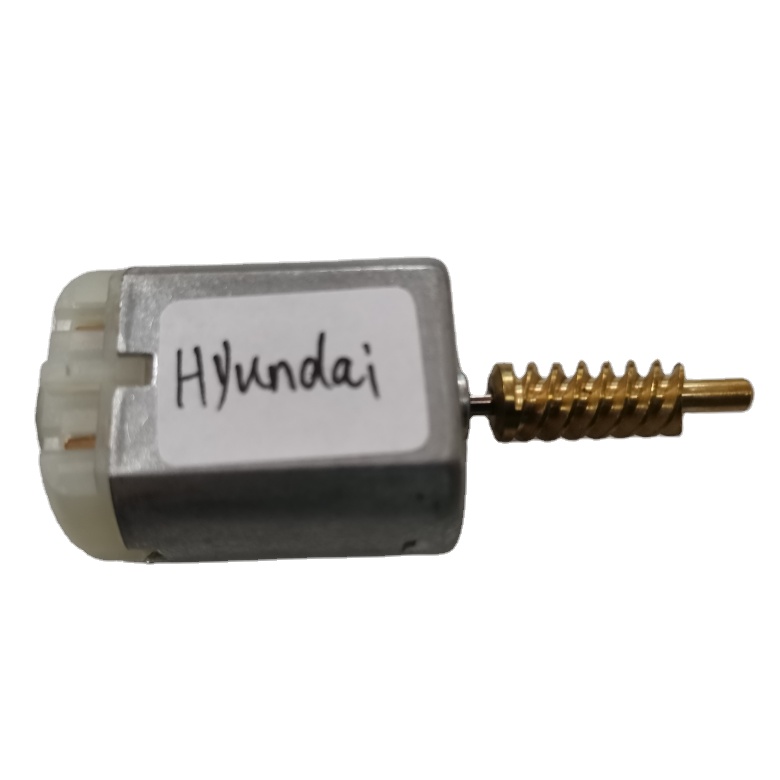

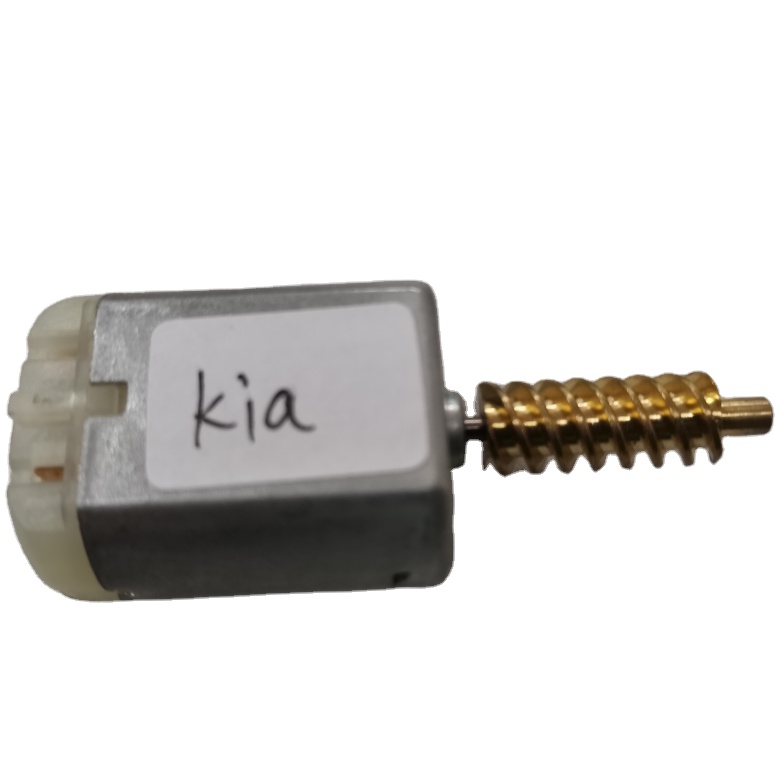

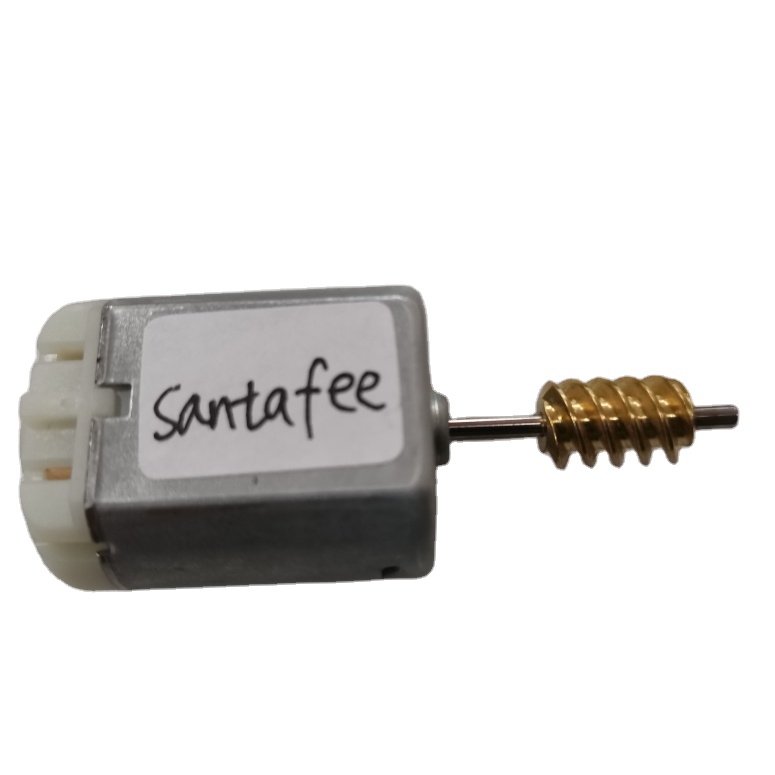

FC280 12v car lock motor FC-280PC-22125 12v door lock motor for door lock motor.
✓
12V Car DC Motor car lock actuator motor
✓
ROHS Certification
✓
Permanent Magnet Construction
✓
Plastic End Cap Design
✓
Low noise and long life performance
Application: Door lock Actuator, Automotive Product

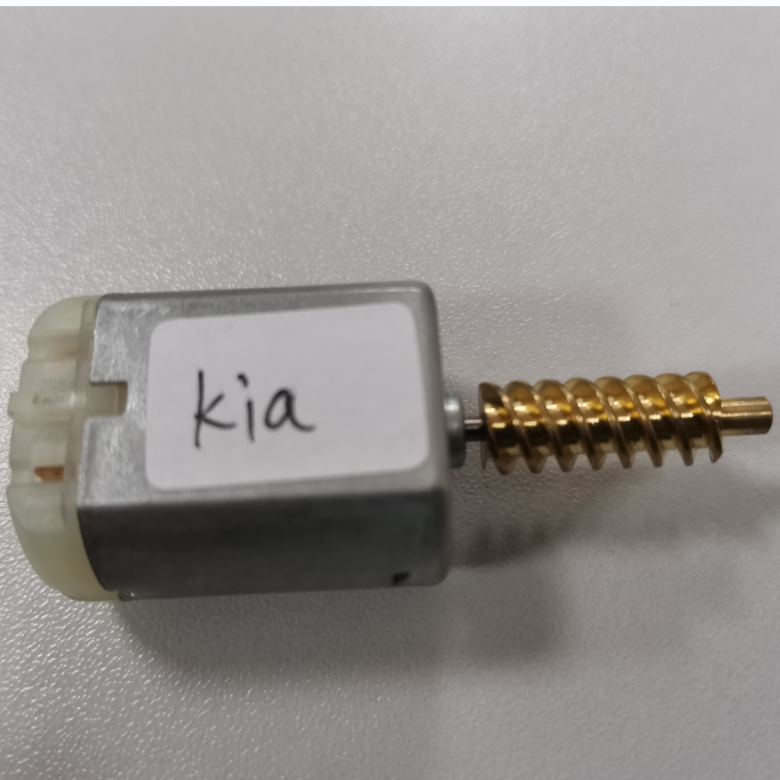

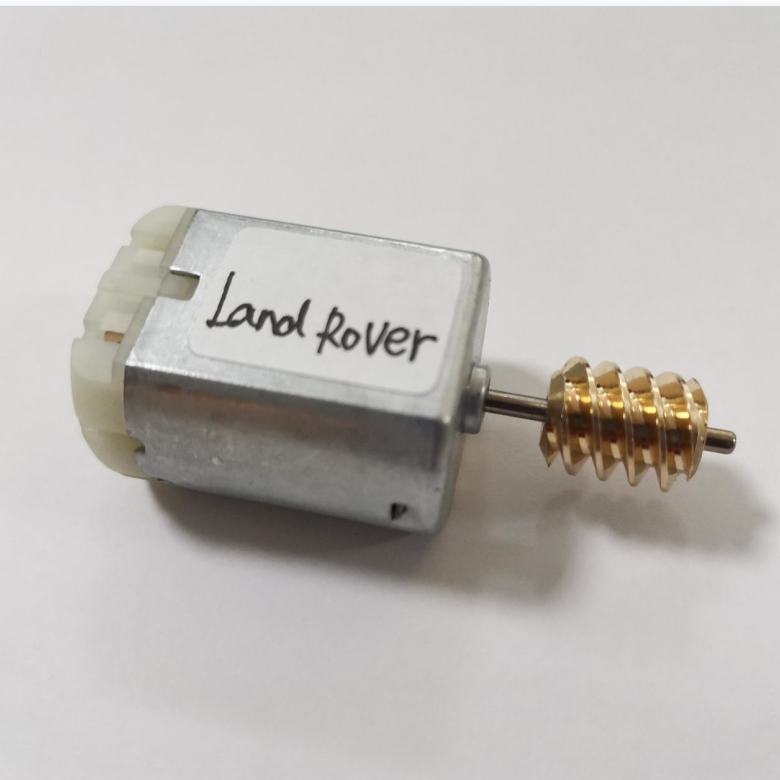

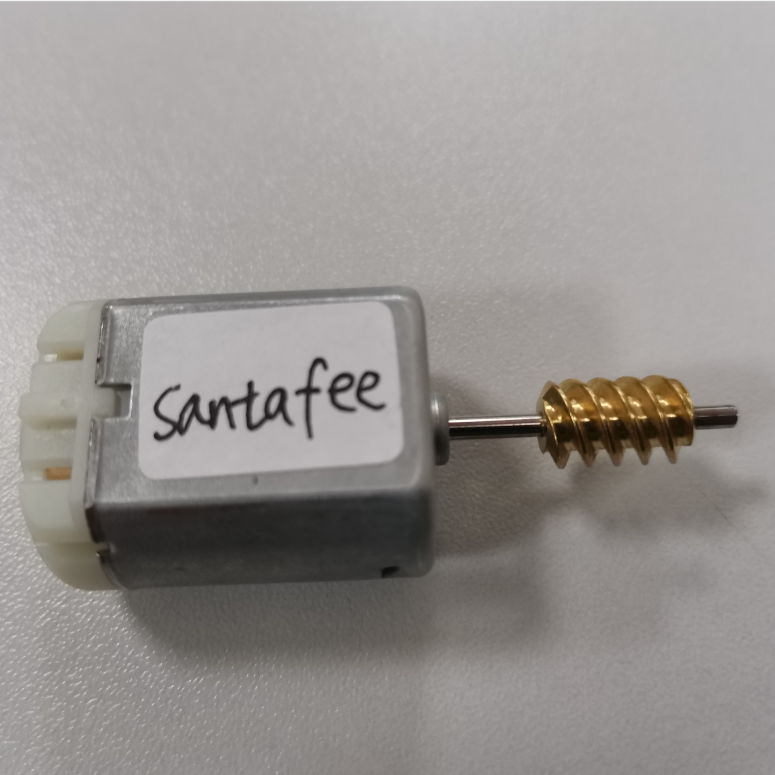

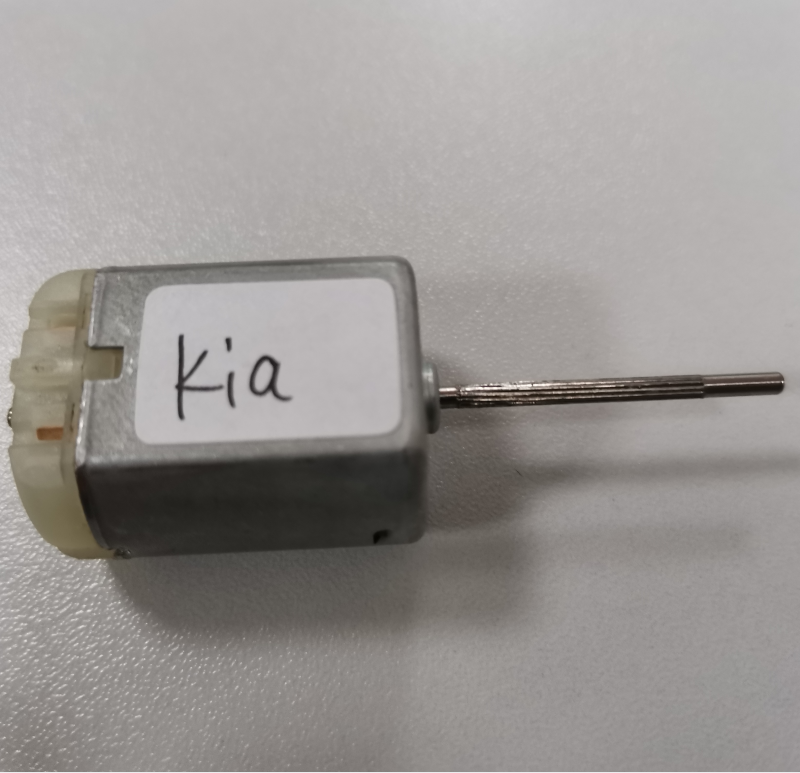

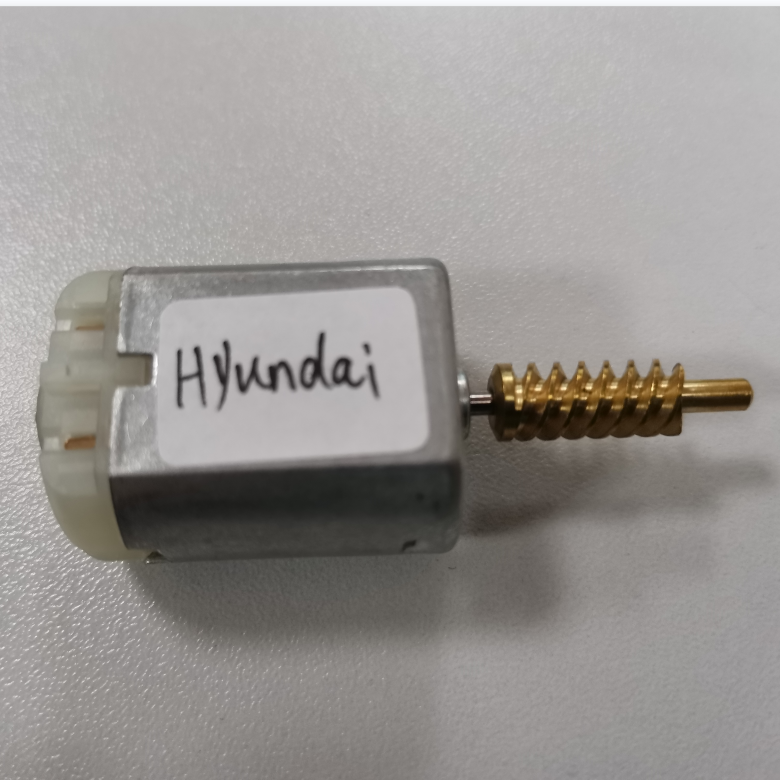

Product Gallery
Outline Drawing and Basic Parameters (fc-280pc-22125)

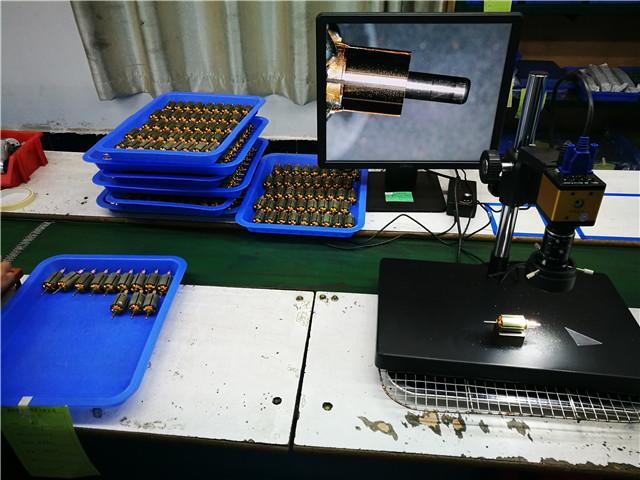

Production Capabilities
Established in 2003, the manufacturing facility has been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.
✓

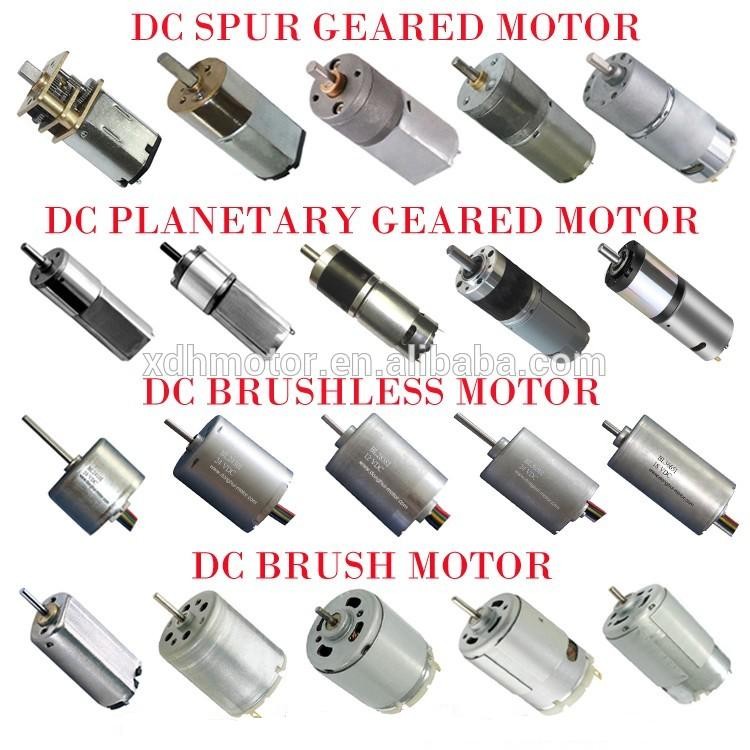

Main Range: Dia4~100mm DC Micro Motor, Auto DC motor, Coreless Brushless, Gear Motor, Spur Gear, Vibration motor
✓
Diameter Specifications: 4mm to 100mm
✓
DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
✓
High Speed Range: 1 RPM to 30,000 RPM
✓
High Stall Torque: 1g.cm to 30kg.cm
✓
Versatile Application: Home Appliance, Power Tools, Toys, Precision Instrument, Personal Care, Audio & Visual
Frequently Asked Questions (FAQ)
What is the rated voltage and typical speed of the FC-280PC-22125 micro motor?
The motor operates at a nominal voltage of 12V DC, reaching a no-load speed of approximately 12,500 RPM. This balance of speed and power makes it ideal for precision mechanisms.
What are the primary applications of this micro DC motor?
It is commonly utilized in automotive systems—specifically as a door lock actuator—as well as in office automation equipment like scanners.
Is the rotation of the motor reversible?
Yes, the motor features a reversible rotation design, allowing bidirectional functionality depending on how the electrical polarity is connected.
What structural components contribute to its low noise and long operational life?
The motor is built with carbon brushes, a durable plastic end cap, a 2-Pole stator with a 3-Slot armature, and an oil-impregnated bearing structure to minimize friction and sound.
What certifications does this micro motor comply with?
The motor is fully certified under ROHS compliance, ensuring that all components and manufacturing processes are free from hazardous substances.
What are the typical packaging and delivery parameters?
Standard packaging is 500 units per carton (carton dimensions: 39x29x46 cm) with a typical delivery timeline of within 30 days.
