Specifications:
DC 12V car central door lock motors, 12v car central lock motor
12V Car DC Motor car lock actuator motor
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
Application: Door lock Actuator, Automotive Product

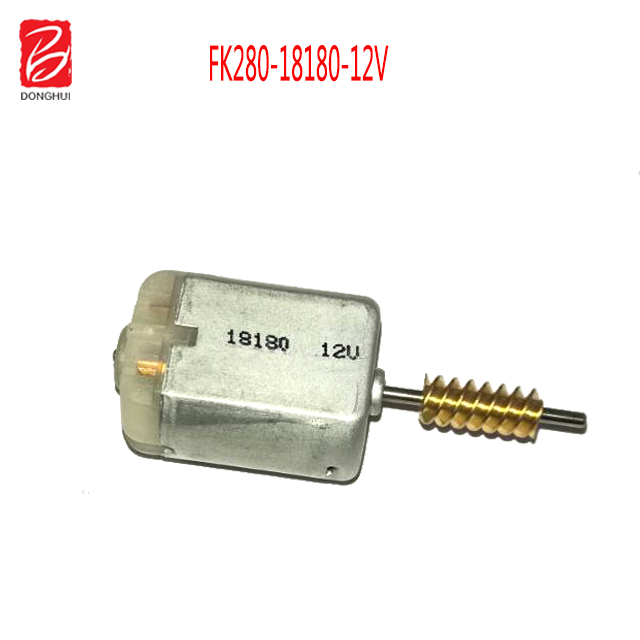

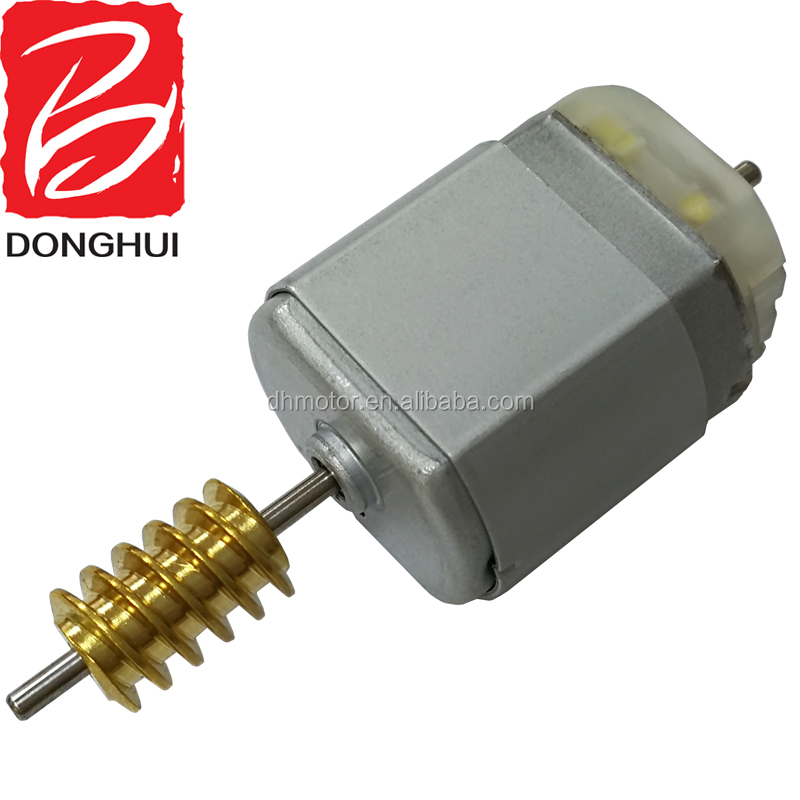

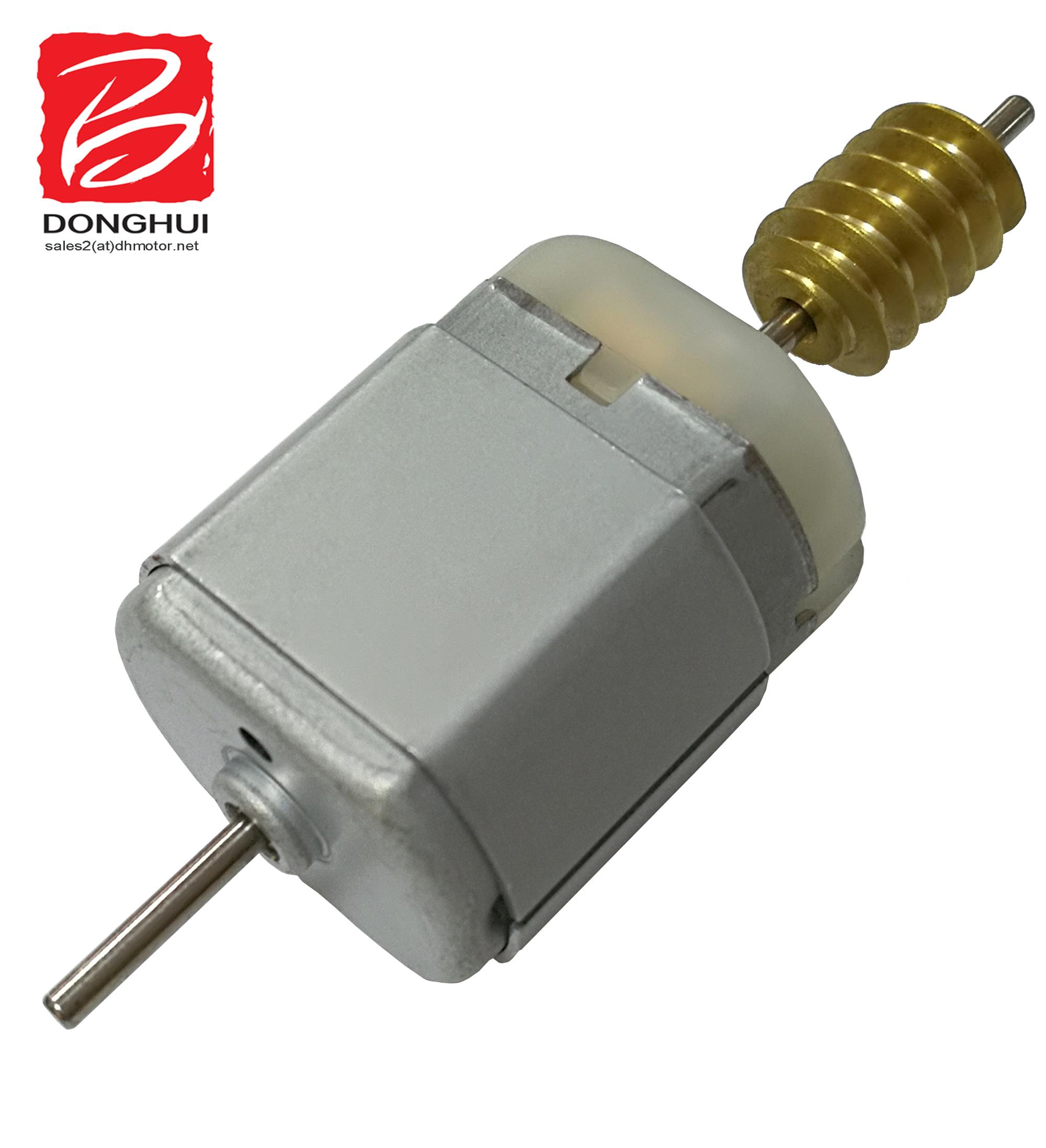

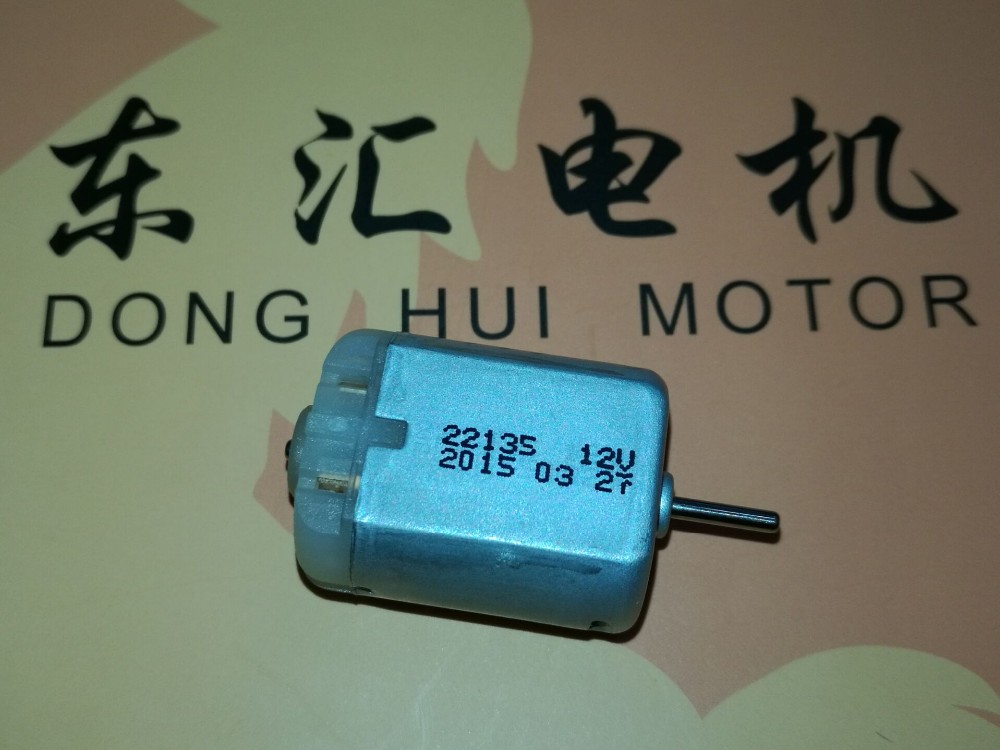

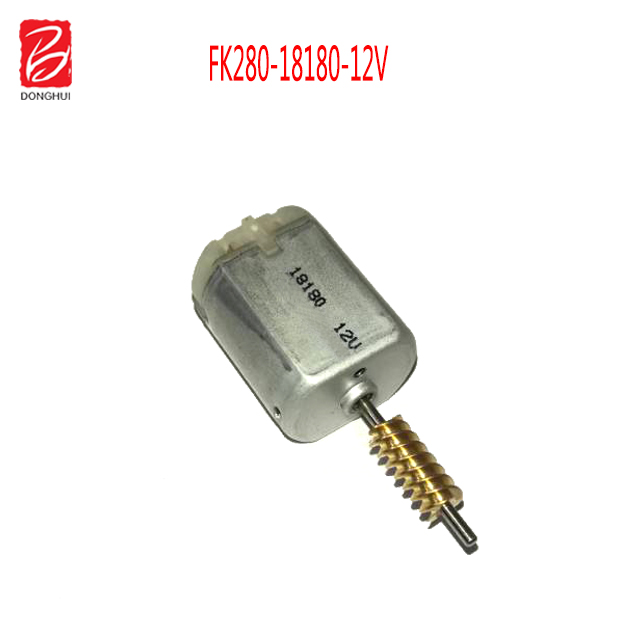

Photo: 12v dc car door lock motor

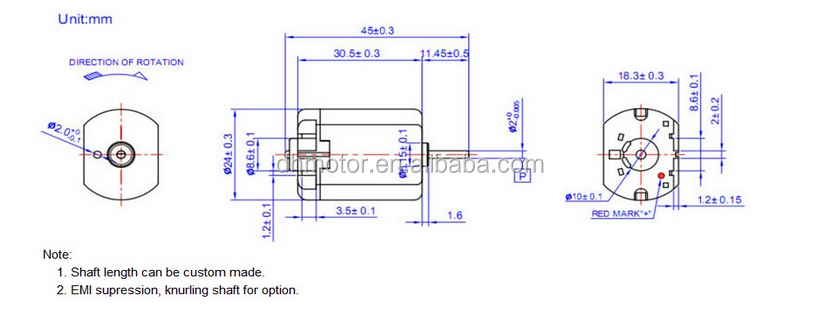

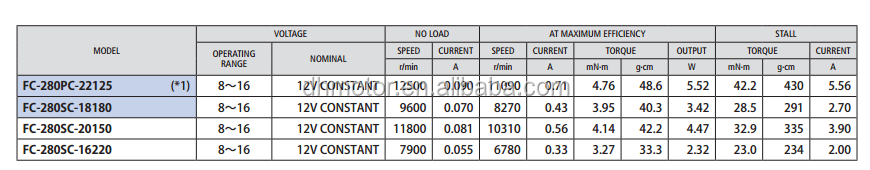

Outline Drawing and basic parameters (fc-280pc-22125)
Company Information
Since the establishment in 2003, there has been a commitment to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:
- Our main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Products size range: Diameter: 4-100mm
- DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed range: 1 RPM-30,000RPM
- Stall torque: 1g.cm-30kg.cm
- Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio& Visual equipment etc.
Frequently Asked Questions
What are the primary applications of this micro motor?
This DC micro motor is widely used in automotive products, specifically as a car central door lock actuator, as well as in scanner devices.
What is the default operating voltage and performance?
The motor runs on 12V DC, offering a no-load speed of 12,500 RPM, with continuous current ranging from 0.1A to 5A and output power of 1-6W.
Does the motor meet international environment standards?
Yes, the motor carries ROHS certification, ensuring it conforms to environmental safety regulations.
What type of construction and features does this motor have?
It is a permanent magnet micro motor featuring carbon brushes, a 2-pole stator, a 3-slot armature, a plastic end cap, and oil bearings to ensure low noise and a long life cycle.
What is the standard packaging and estimated delivery time?
Standard packing is 500 units per carton (carton dimensions: 39x29x46 cm). Delivery is typically processed within 30 days.
Can the motor run in both clockwise and counter-clockwise directions?
Yes, the rotation feature of this motor is fully reversible, making it highly versatile for directional mechanisms.
