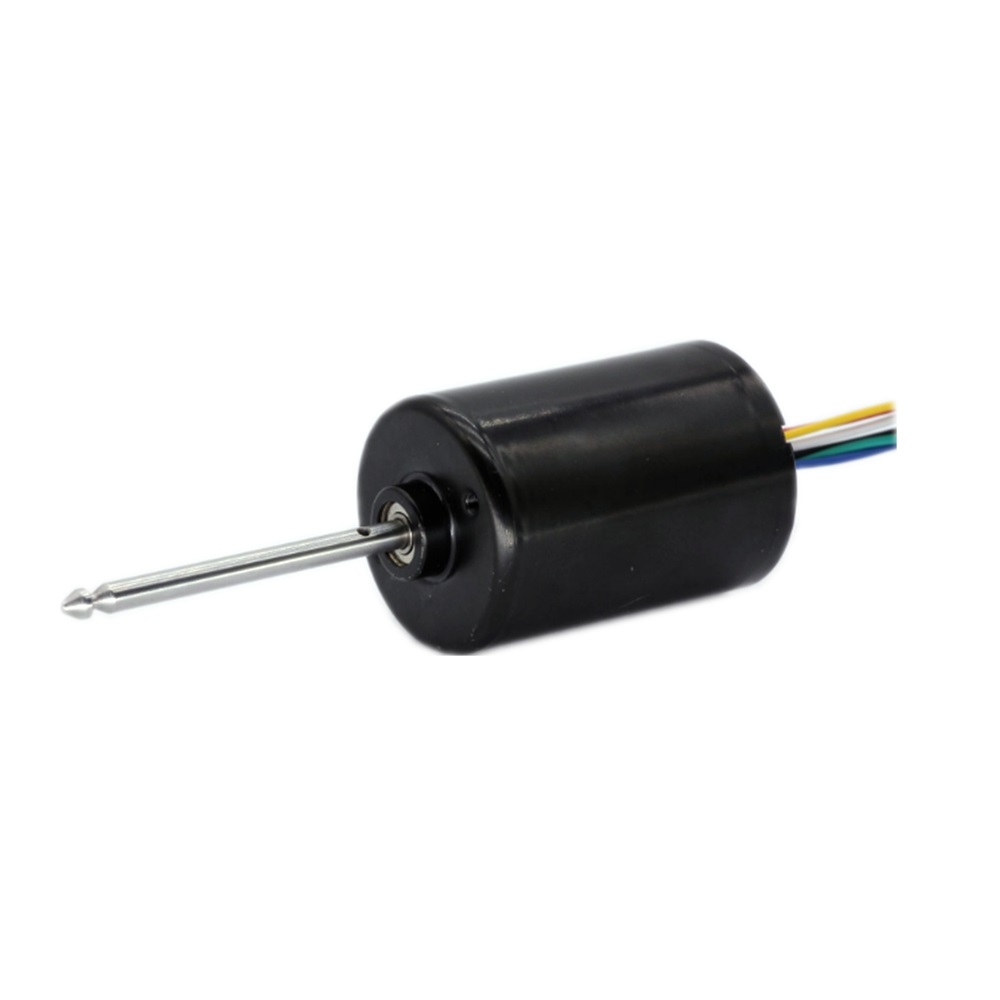

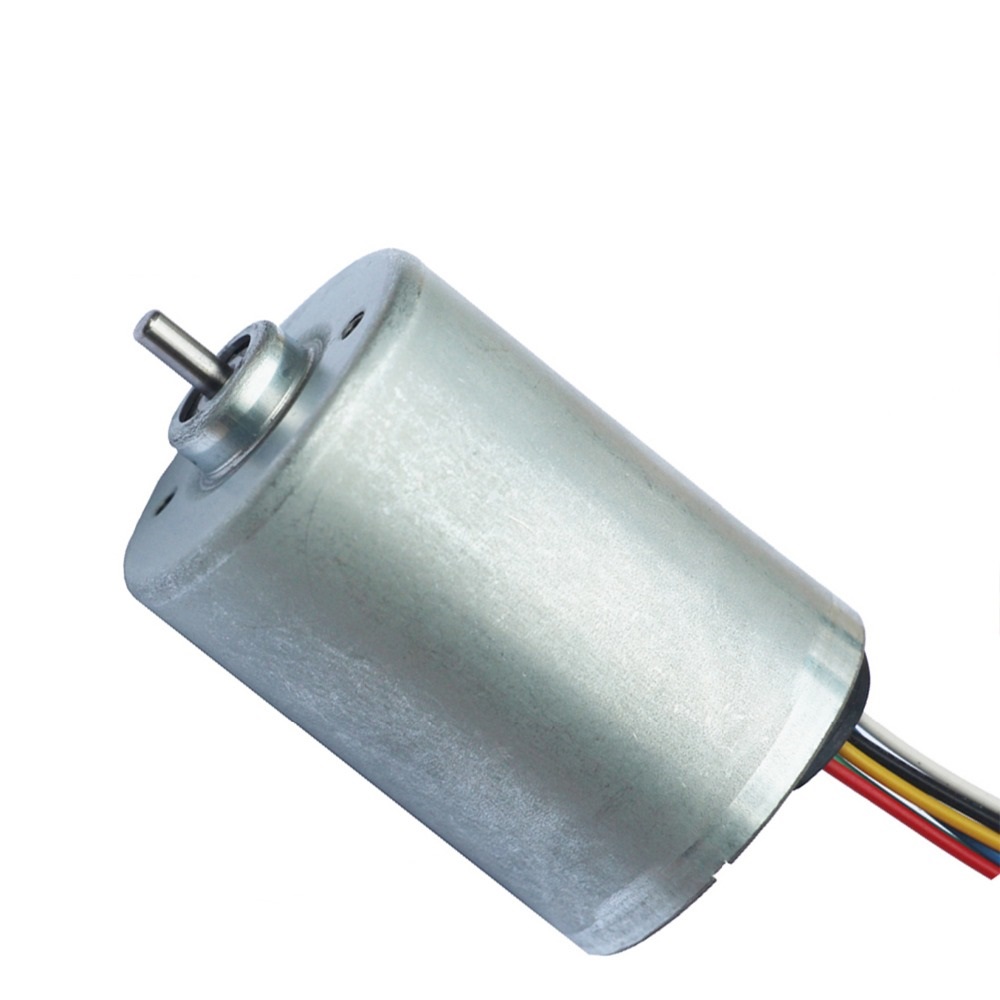

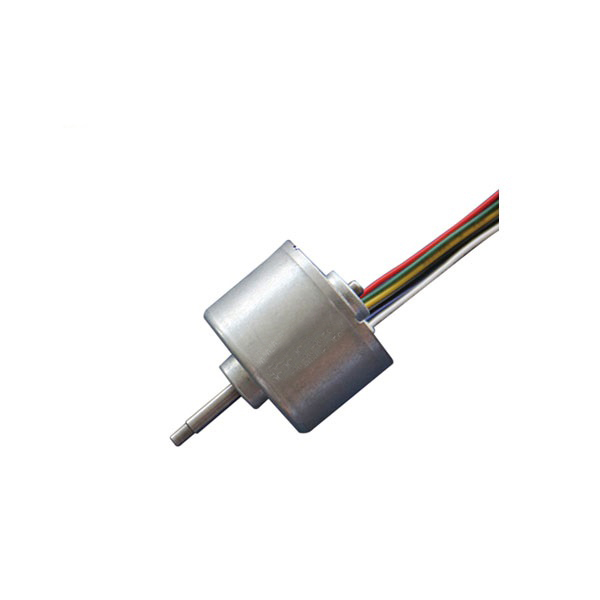

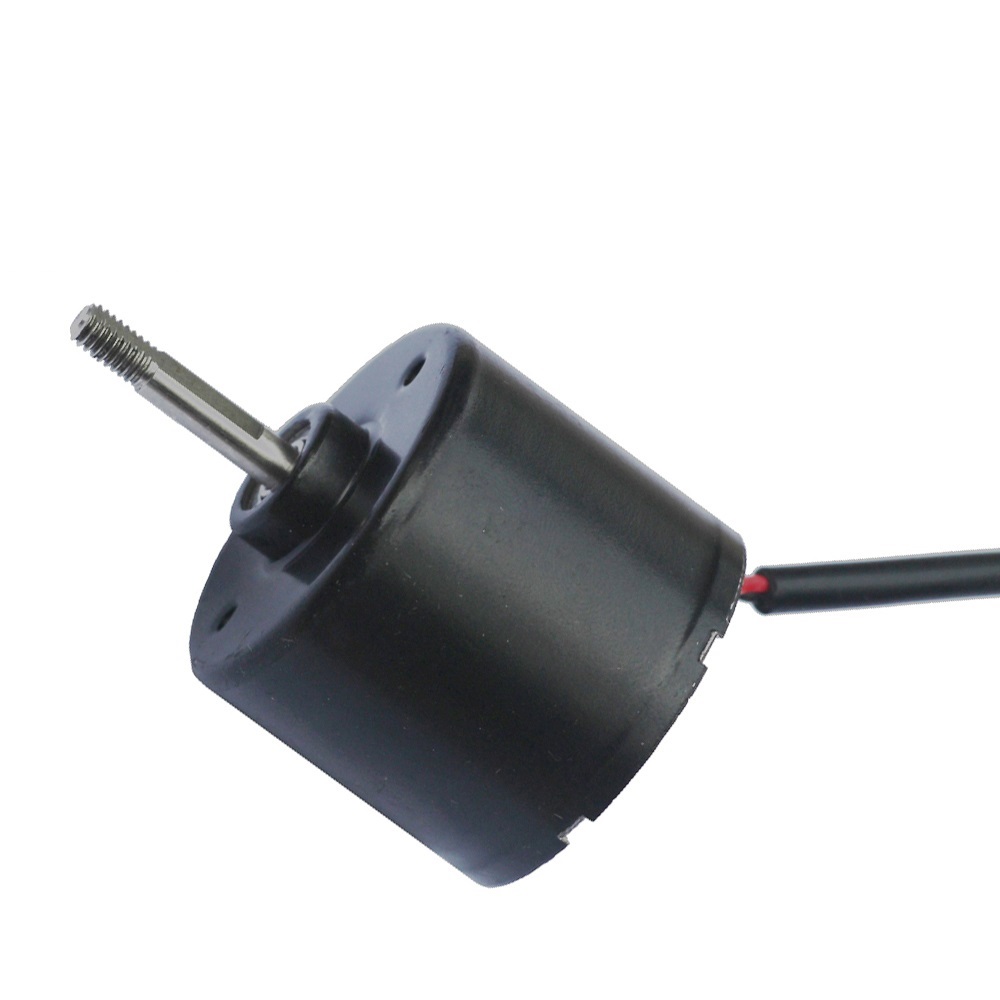

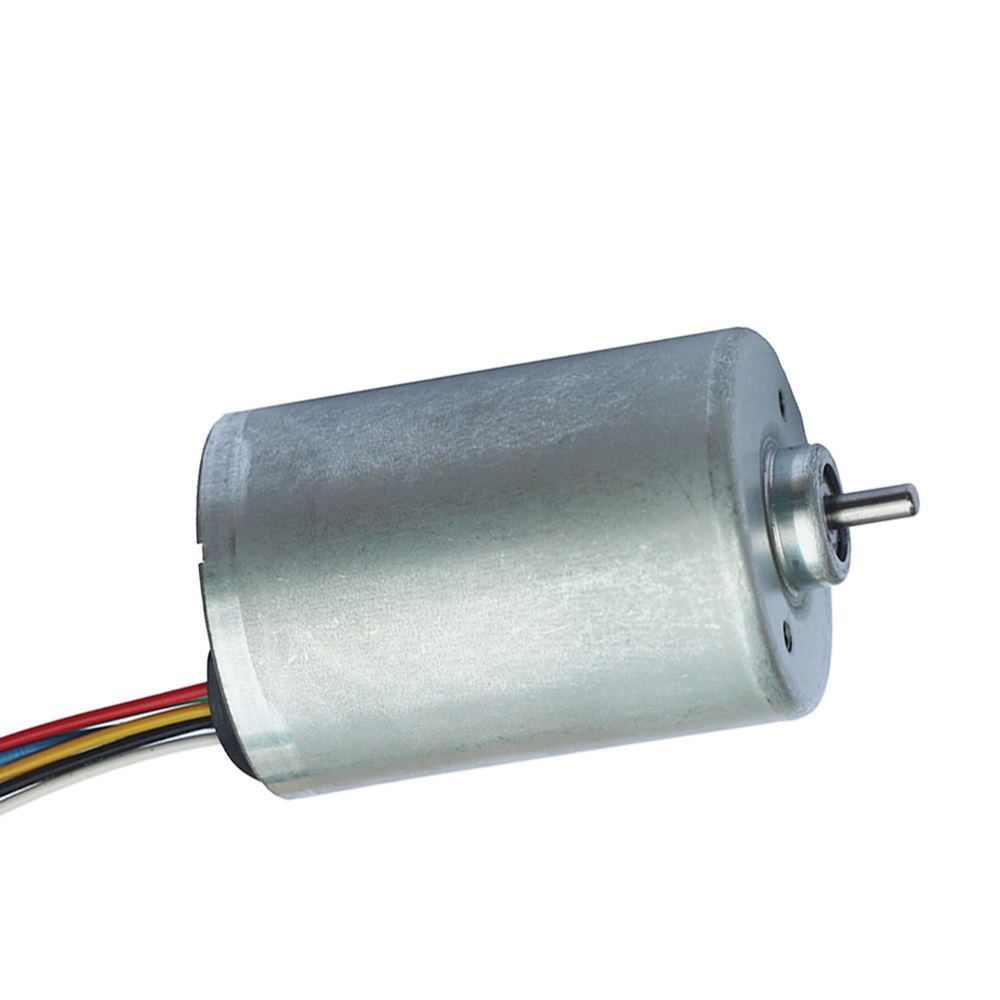

Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor
Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor
Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor
Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor
Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor
1 / 5
Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor
Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor
Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor
Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor
Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor

Bl3626 Bl3630 Bl3640 Bl3650 Bl3657 6v 9v 12v 18v 24v 36mm Dc Brushless Motor

Send Inquiry

Product Description

Specification
Item 36mm brushless motor
Size Diameter 36mm, Length 26mm,30mm,40mm,50mm,57mm
Voltage 8V~26V
Unload Speed 2000-11000rpm
Output torque ≤3000g.cm
Wattage ≤50watt
Driver Bulit-in design or Customized
Bearing Ball bearing or normal bearing
Lifetime 3000hours~20000hours
Function Brake,FG,CW/CCW,PWM
Protection Over current protection,Over heating protection
Feature Long Lifetime,Low Noise,High Effiency,Stable and Reliable
Application Fan,Car Vacuum Cleaner,Food Processor,Pump,Toy and Model,Power tool,Drill
Product Description
The following motor voltage, speed, torque, shaft length, shaft type can be customized

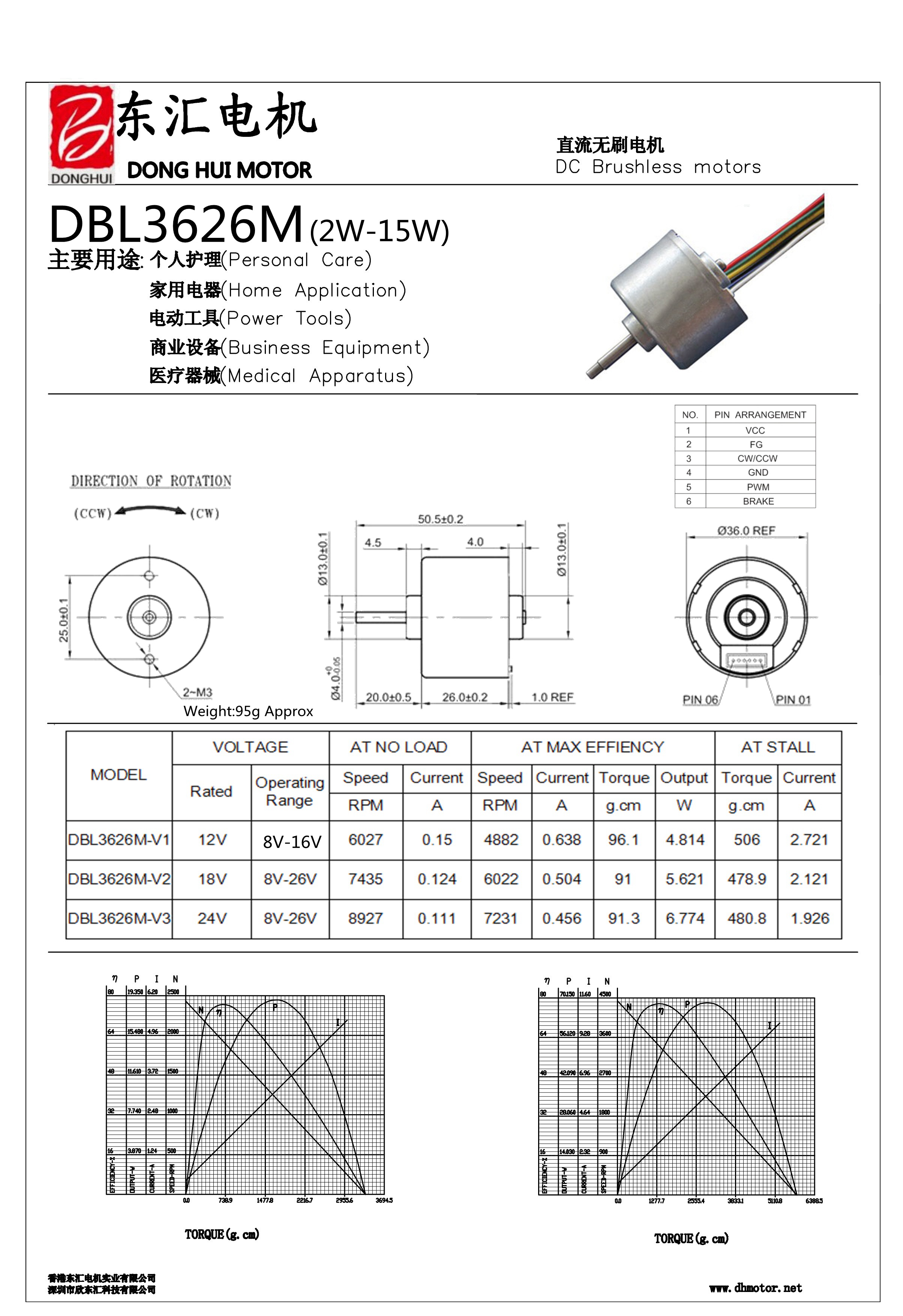

36mm Brushless Motor Customized Details
Brushless DC Motor Front View
Brushless DC Motor Side View

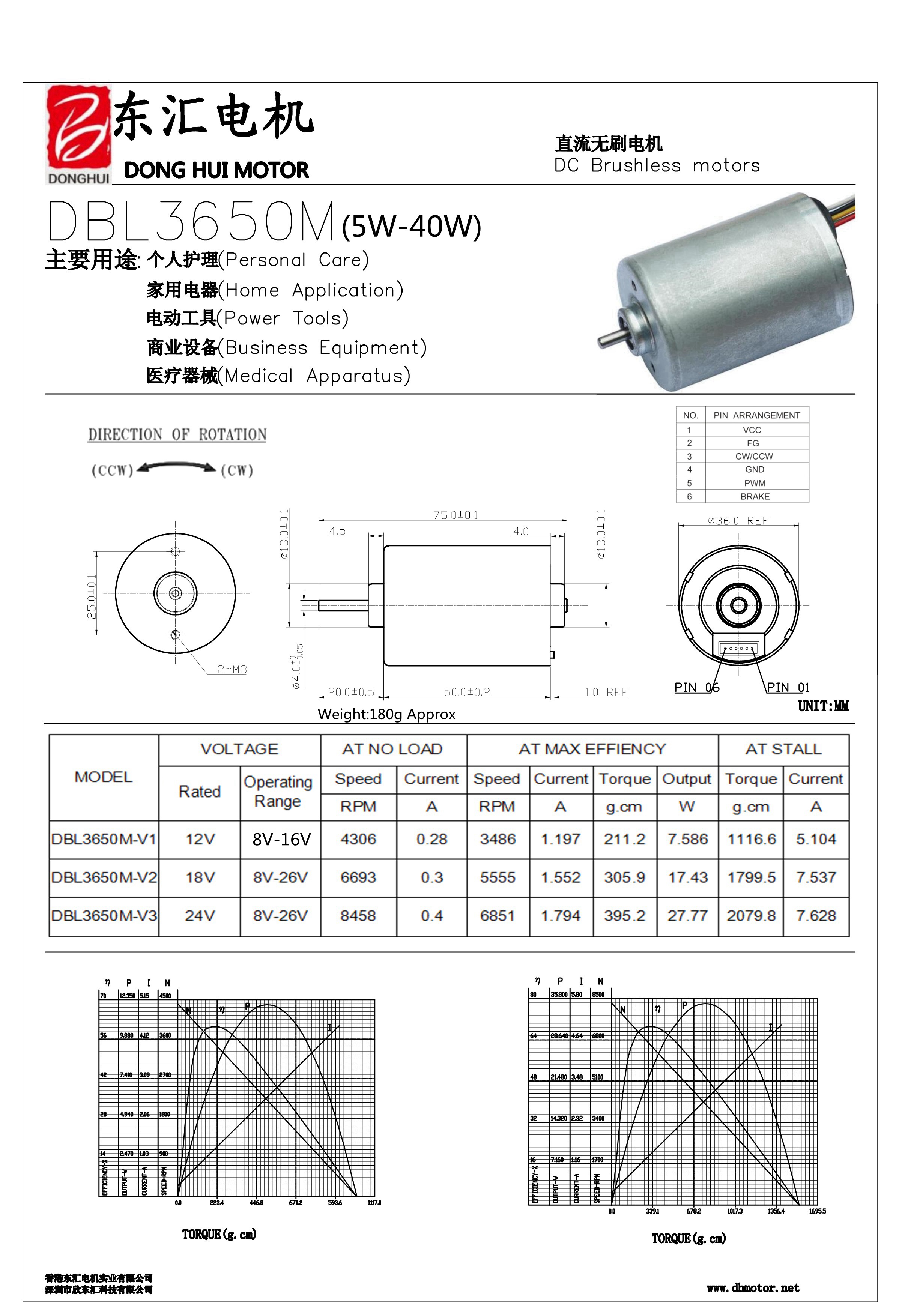

Brushless DC Motor Specifications Graphic

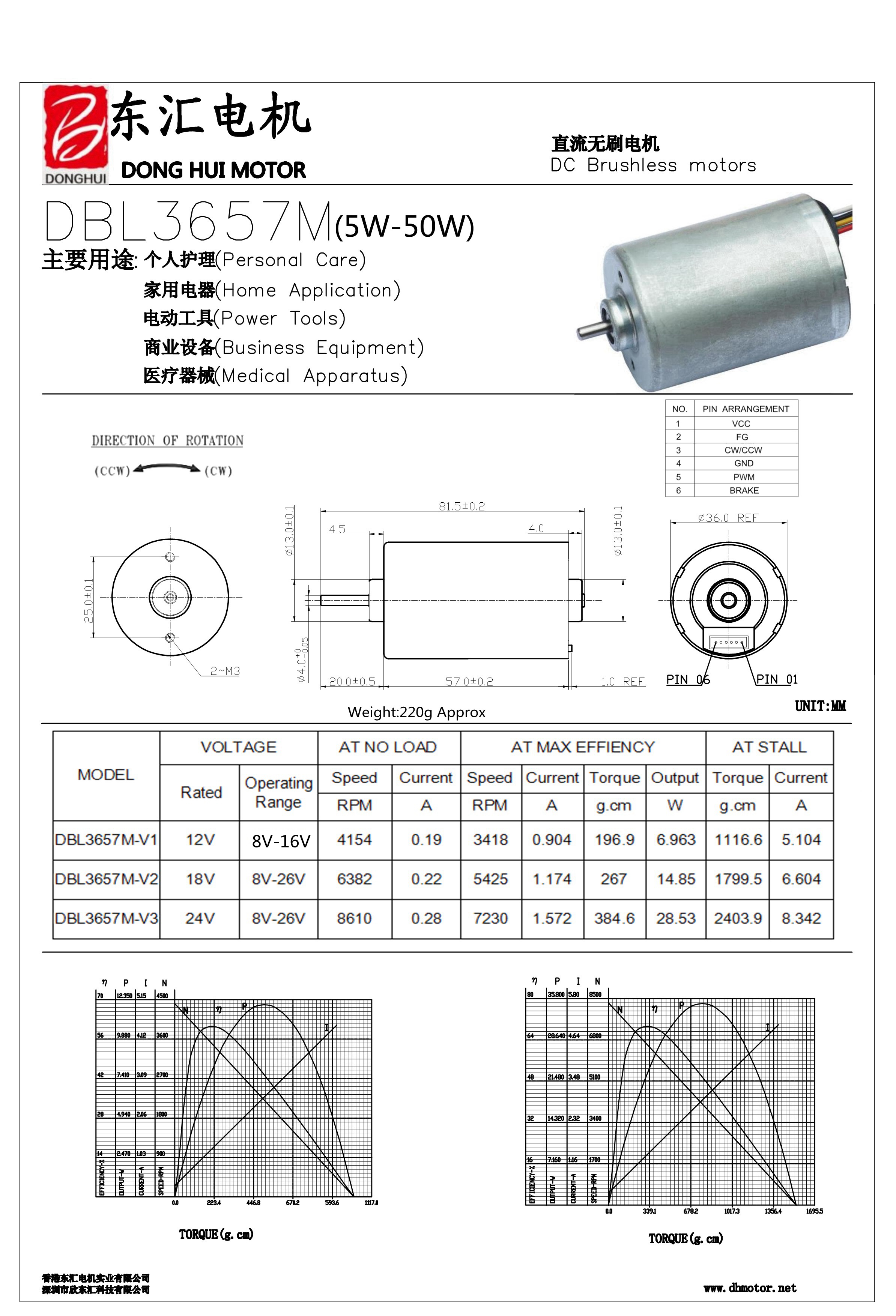

Brushless DC Motor Dimensions Visual
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Motor Packaging Box Layout
Internal Protective Packaging for Motor
Secure Outer Motor Packaging Carton
Global Shipping and Delivery Process
Company Profile
Professional micro motor/engine manufacturer for 10 years.
Brush Dc Motor: Φ6mm—Φ60mm
Brushless Dc Motor: Φ12mm-Φ42mm Coreless
Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
Stepper Dc Motor: Φ6mm—Φ24mm
Vibration Dc Motor: Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Shaft Length: 0.1-150mm
Gearbox Ratio: 1:4---1:5000
Micro Motor Production Facility View 1
Precision Motor Manufacturing Assembly Line
Quality Inspection Department for DC Motors
Advanced Motor Testing Equipment
FAQ
Question 1: What's your main products?
Answer: Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Question 2: What's the main usage of the micro dc gear motor?
Answer: Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.
Question 3: Do you accept customize?
Answer: Sure, as we have a strong design team, any problems will get our technical answer.
Question 4: What kind of data do i need to provide if i want to order?
Answer: Please kindly tell us your voltage, speed, torque and overall dimension.
Question 5: What if i don't know the above data?
Answer: Please contact our salesman, tell us your requirement, we will recommend the best fit model.
Industrial Standard Micro Motor Guarantee
Please feel free contact get an quotation and recommend!
