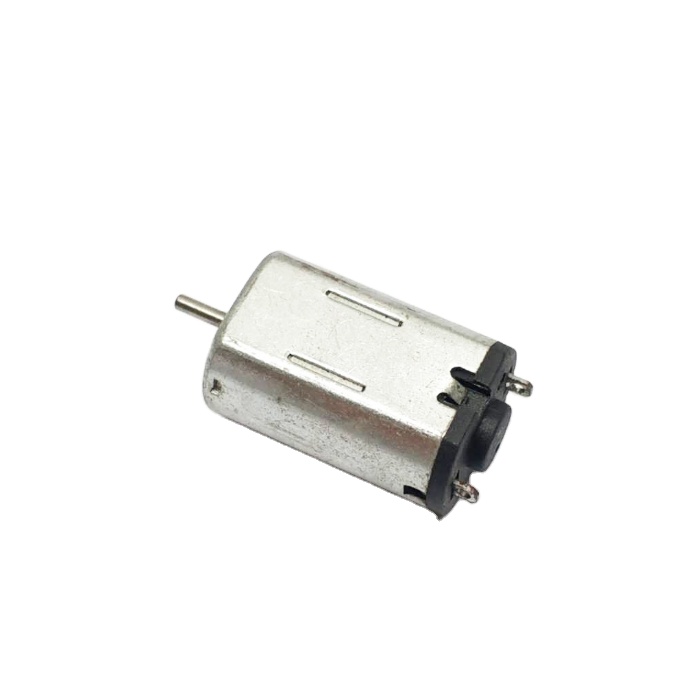

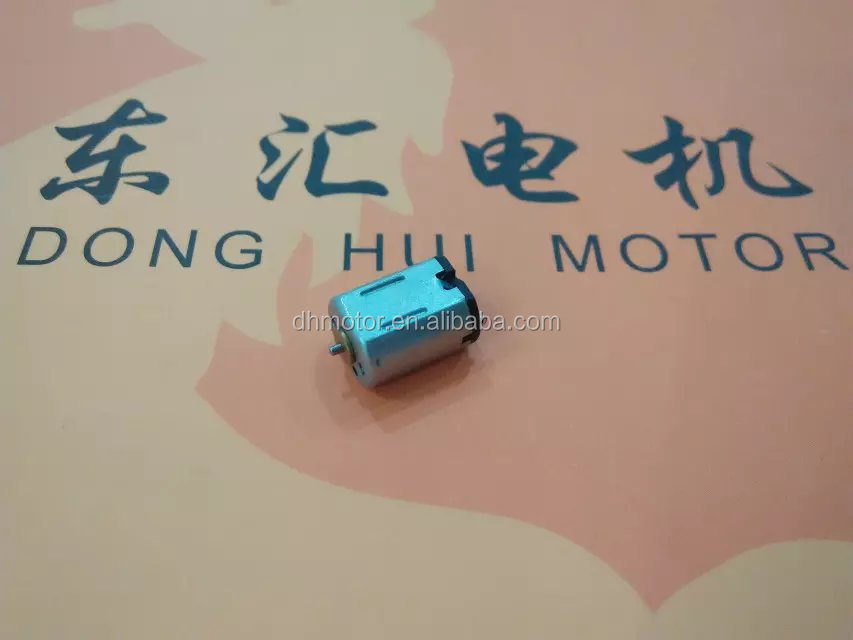

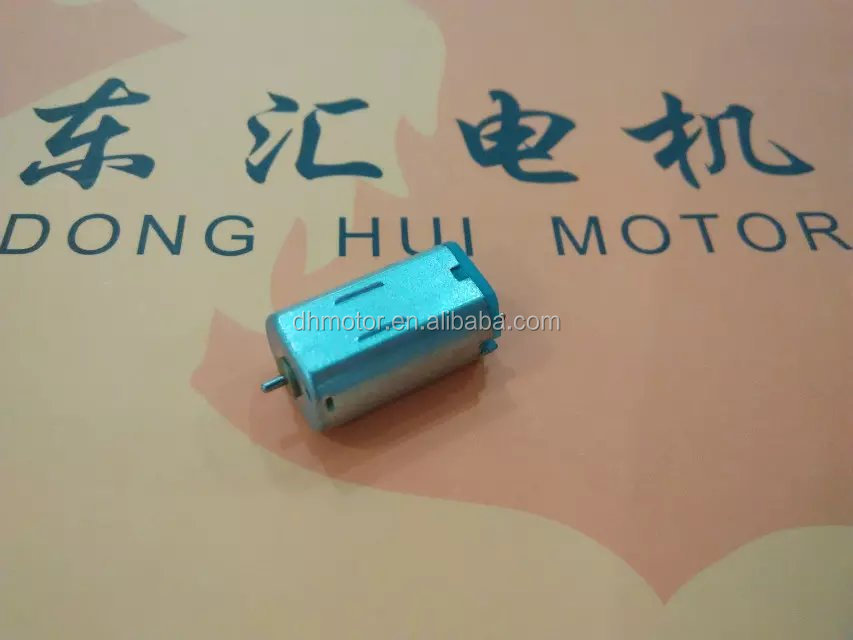

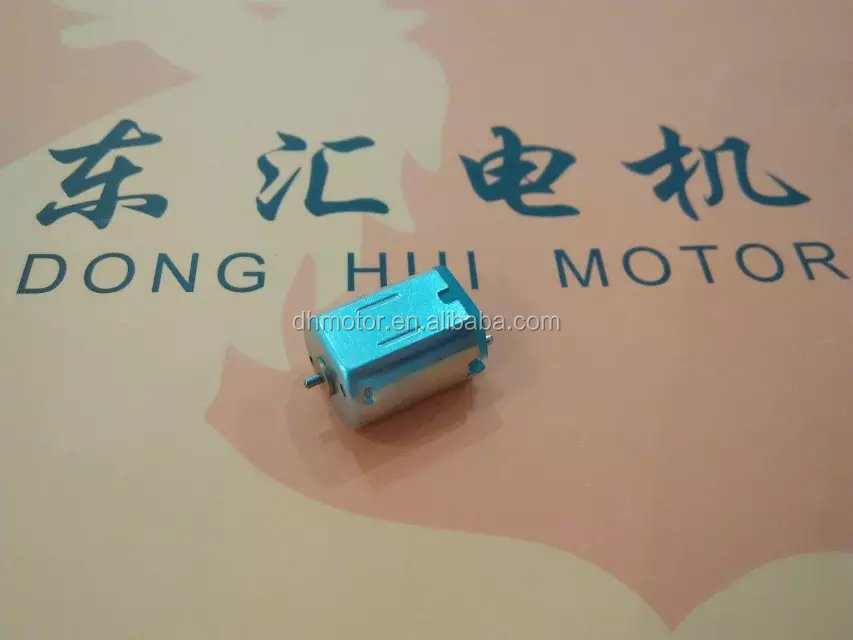

Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30

Product Description

1.2v 3v 6v 7v 9v dc motor FN20 FN30

✓ Rated Voltage: DC 1.2-9V
✓ Speed No load: 3000-15000RPM
✓ Torque: 2.5-20g.cm Torque At Max Efficiency
✓ Brushes: Precious Metal-brush motors
✓ Dimensions: Diameter 12 mm, length 20.0mm, shaft 1.0mm

✓ Weight: 10g Approx
✓ Output Power: 0.3~1.5W
✓ Application: Robot, Home Appliance, Door Lock etc
✓ Customization: Adjust performance freely (voltage, speed, torque, etc.)

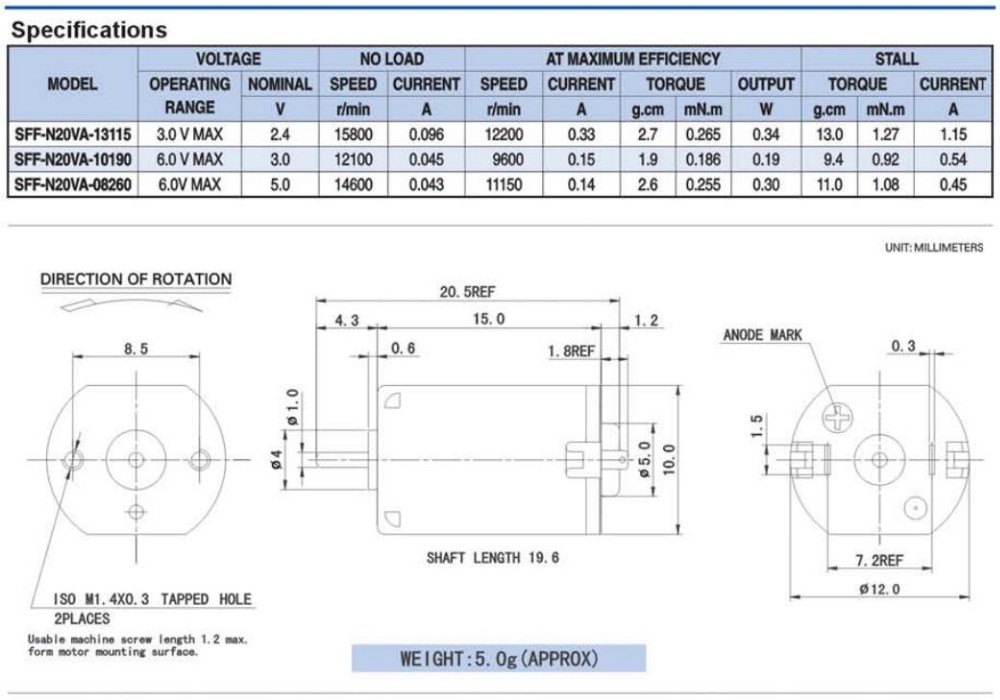

Specifications

Model No: FF-N20

Note: We can adjust the performance of voltage, torque, speed, current, power, shaft shape and length according to your needs. Our engineers will send you the drawing and specifications once you choose us.

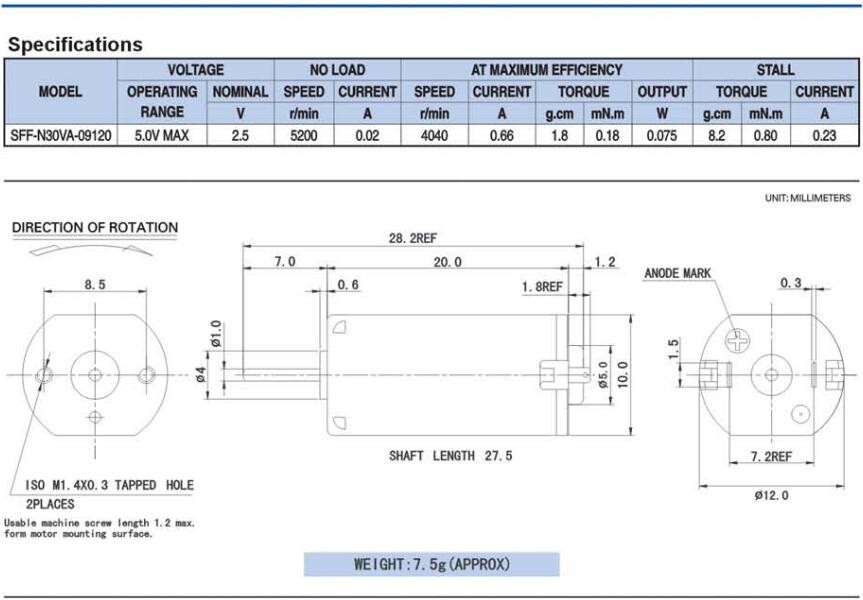

Specifications

Model No: FF-N30

Note: We can adjust the performance of voltage, torque, speed, current, power, shaft shape and length according to your needs. Our engineers will send you the drawing and specifications once you choose us.

Rated Products

Our Company

Founded in 2003, we are a private high-tech enterprise, mainly engaged in the design, development, production, sale, and service of precision DC motors and gear motors.

Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras, and domestic appliances.

Our Advantages

13 Years of Experience: Over a decade specializing in the manufacturing of DC motors and DC gear motors.
Quality Assurance: Certified military enterprise quality standards with components sourced to match high reliability.
R&D Strength: Strong production capacities paired with robust research and development capabilities.
Export Expertise: 10 years of successful export experience to major global markets including Germany, Japan, and the USA.

FAQ

Question 1: What are your main products?

Answer: We specialize in Dia10~52mm DC Micro Motors and Gear Motors, including auto DC motors, electric motors, brush DC motors, brushless DC motors, spur gear motors, micro motors, and vibration motors.

Question 2: What is the main usage of the micro DC gear motor?

Answer: Our motors are widely used in home appliances, office equipment, healthcare appliances, sanitation systems, banking equipment, payment terminals, vending machines, automation systems, electronic tools, and electronic door locks.

Question 3: Do you accept customization?

Answer: Yes, we accept customizations. With our dedicated engineering and design team, we can address your technical needs and customize solutions accordingly.

Question 4: What specifications should I provide to place an order?

Answer: Please share your specific parameters including voltage, speed, torque, and overall dimensions to proceed.

Question 5: What if I do not have the exact specifications?

Answer: Feel free to reach out to our technical sales team. We will guide you step-by-step to identify the exact motor requirements for your project.

Question 6: Can you customize the shaft shape and length of the motor?

Answer: Yes, we can adjust and custom engineer the shaft shape, length, voltage, torque, speed, and current to match your specific application.
