FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
1 / 4
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor

FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor

Send Inquiry

Product Description

Product Description
Place of Origin: Guangdong China Model Number: FF-180
Usage: Home Appliance Certification: CCC, CE, ROHS
Type: Micro Motor Torque: 110 g.cm
Construction: Permanent Magnet Commutation: Brush
Protect Feature: Drip-proof Speed(RPM): 6900 rpm
Continuous Current(A): 0.16A Output Power: 1.1W
Voltage(V): 2.4V Efficiency: IE 1
NO LOAD SPEED: 8300 rpm - -
Packaging & Shipping
Packaging Details: 500PCS/CTN, standard export carton packing
Delivery Detail: Within 25 days
Our Services

Micro dc motor, dc gear motor, dc brushless motor

FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor

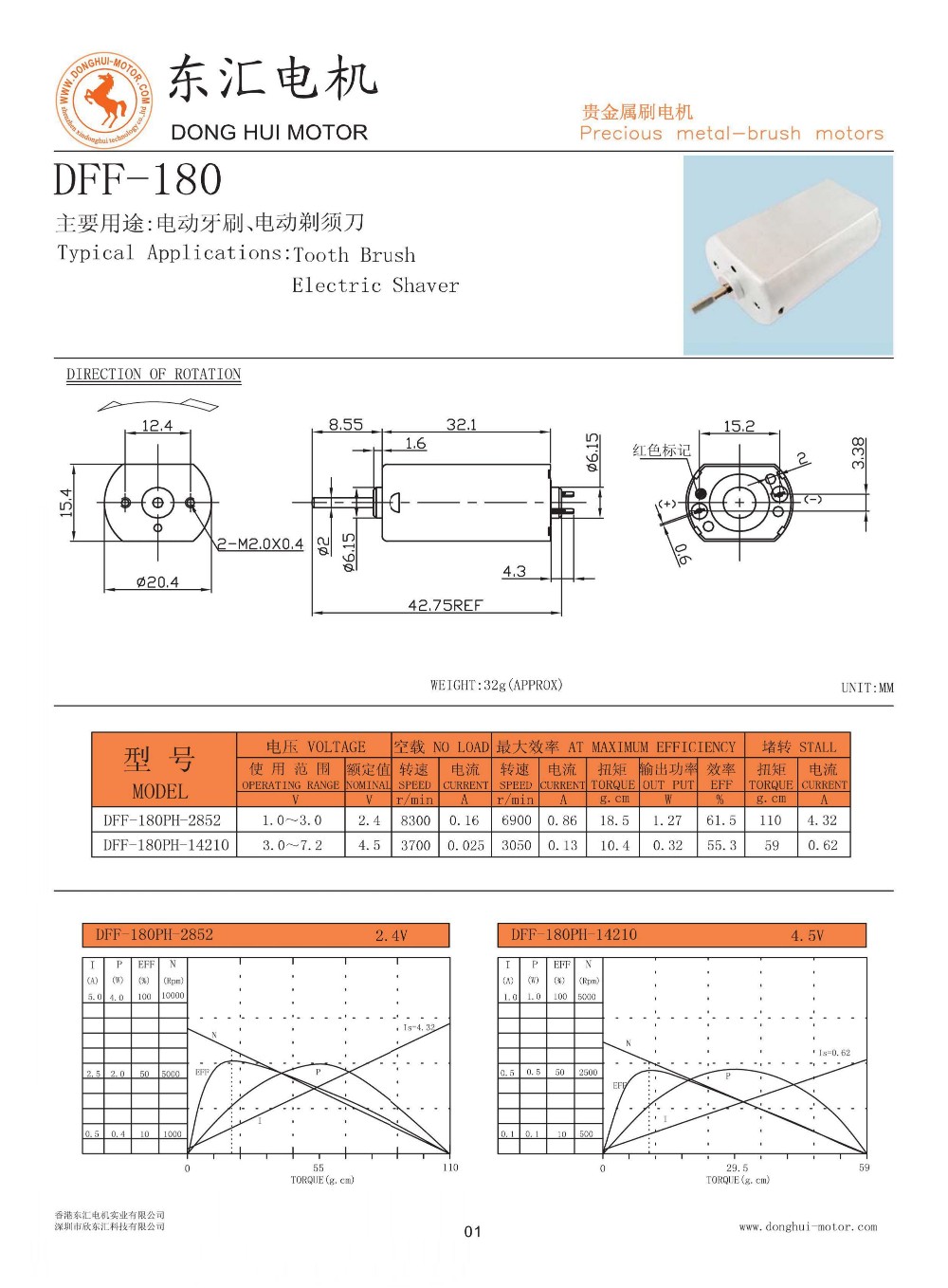

Specifications: Electric Shaver DC Motor 2.4v 12v FF-180 dc motor

  • 3V-24V dc mini Motor for CD, mini dc motor
  • Low noise high speed long-life (Carbon brush or metal brush)
  • Motor Voltage: 2.4v-12v
  • The shaft: dia 2.0mm
  • Motor Diameter: 20.4mm length: 32.1mm, flat shape
  • Output power: approx 0.5W~3.5W
  • Certification: CE, ROHS ISO9001:2000
  • Precious metal-brush motors
  • The motor weight: 32g (Approx)
  • Motor direction of rotation: CW & CCW
  • ff-180 mini dc Motor for Audio and Visual equipments: VCR
  • Household Appliances: Electric Shaver / Tooth Brush
  • Motors specification and shaft length can be tailor-made according to customer's requirements

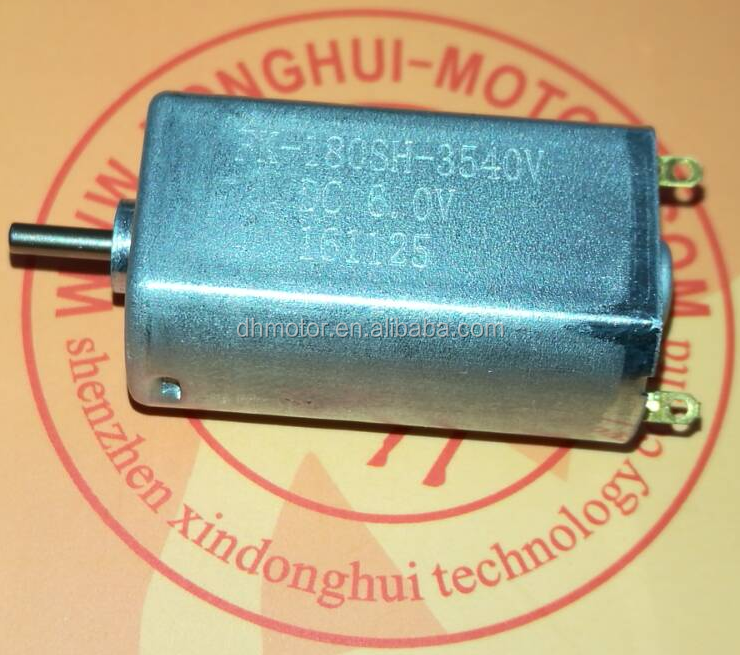

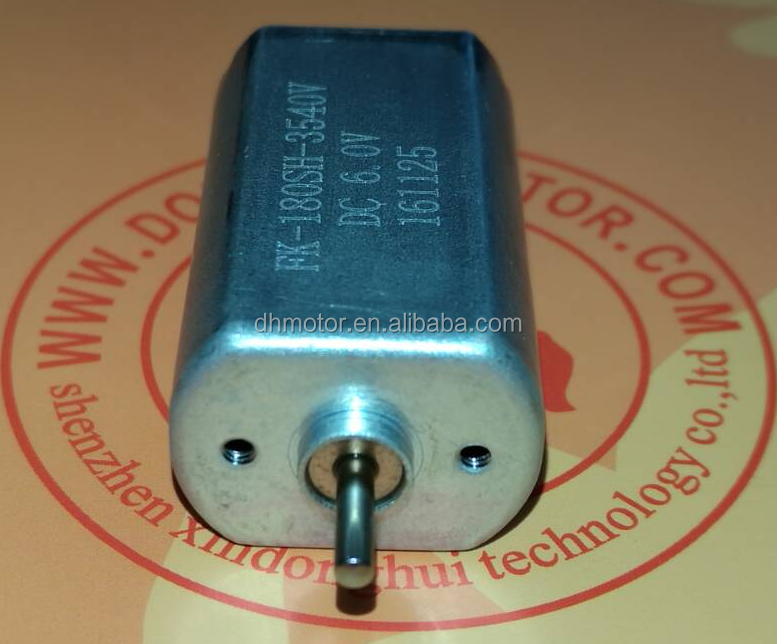

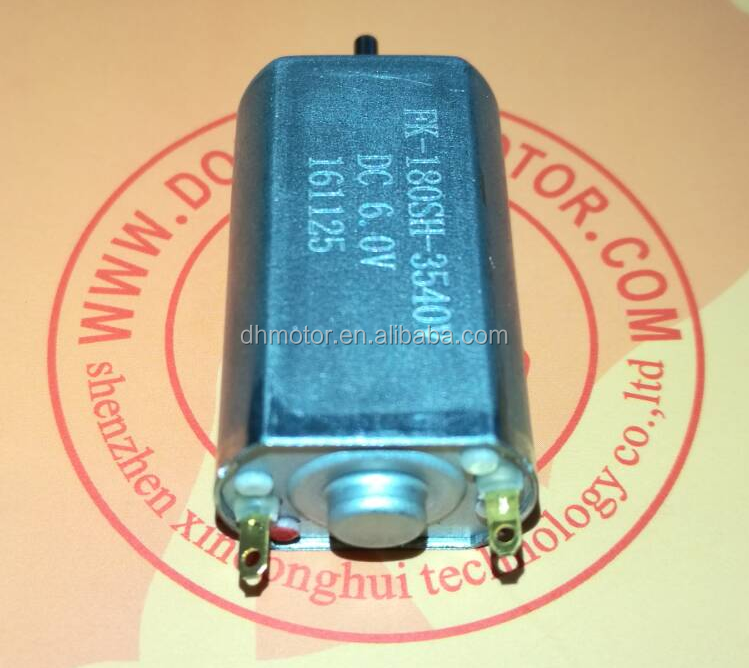

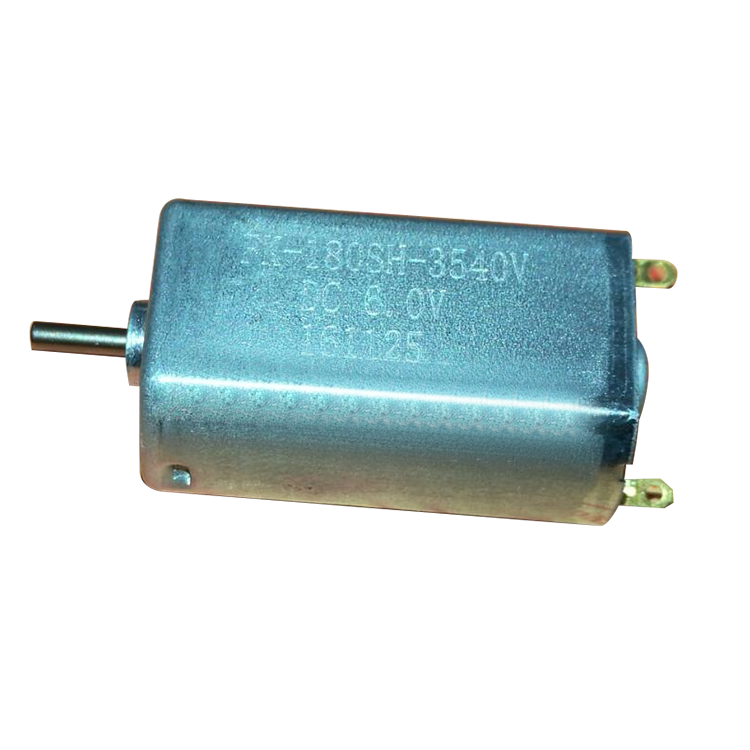

Photo:

FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor
Company Information
Electric Shaver DC Motor Factory Banner
Electric Shaver DC Motor Factory Facility
Electric Shaver DC Motor Manufacturing

Since established in 2003, there has been a commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields.

  • Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
  • Products size range: Diameter: 4-100mm
  • DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
  • Speed range: 1 RPM-30,000RPM
  • Stall torque: 1g.cm-30kg.cm
  • Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions
What is the typical voltage range for the FF-180 micro DC motor?
The standard operating voltage range for the FF-180 micro DC motor is 2.4V to 12V, though customized voltage configurations within a broader ranges can be requested.
What are the primary applications of this micro motor?
This motor is widely used in household personal care appliances such as electric shavers and toothbrushes, as well as audio/visual equipment like VCRs.
Can the motor specifications and shaft dimensions be customized?
Yes. Motor specifications, performance characteristics (speed, torque, power), and shaft lengths can be fully tailor-made to meet specific customer requirements.
What packaging is used and what is the typical delivery timeframe?
The standard packaging configuration is 500 pieces per export carton. Delivery is generally completed within 25 days.
What industry certifications do these micro motors possess?
The micro motors comply with international standards and are certified with CCC, CE, ROHS, and ISO9001:2000 quality management system requirements.
