Robust DC Motor
Robust DC Motor

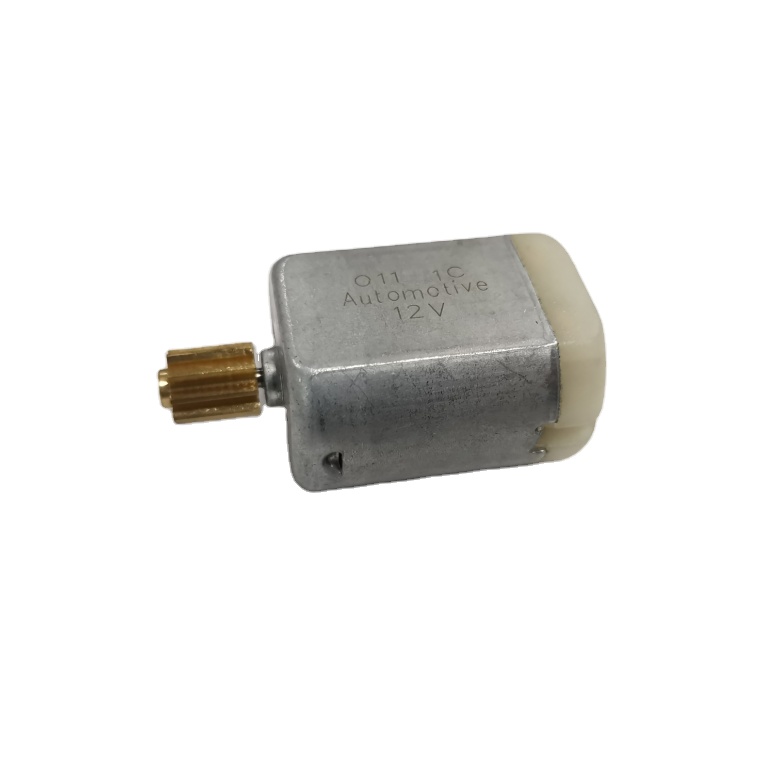

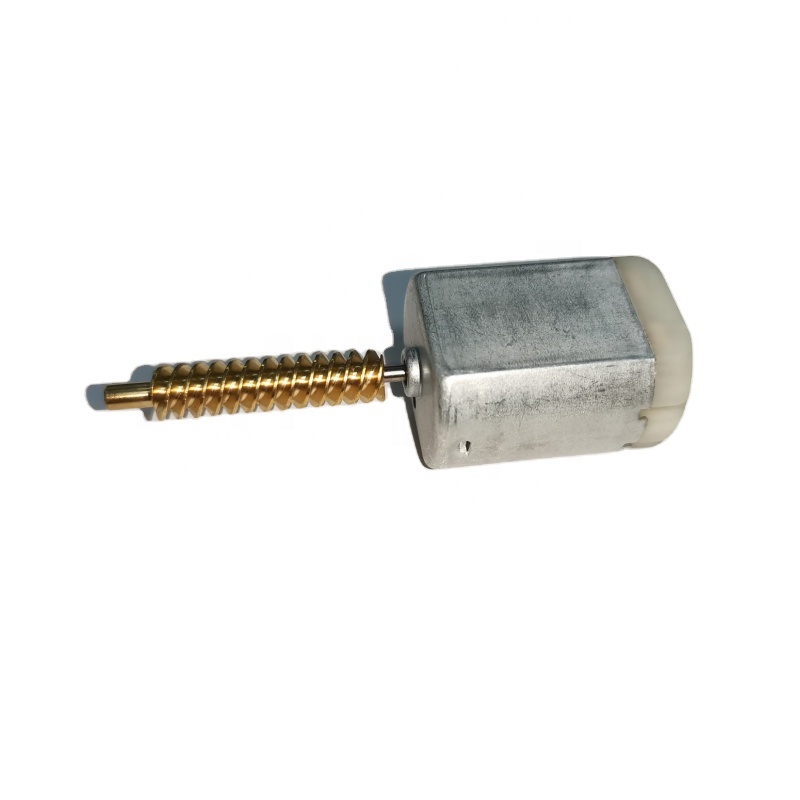

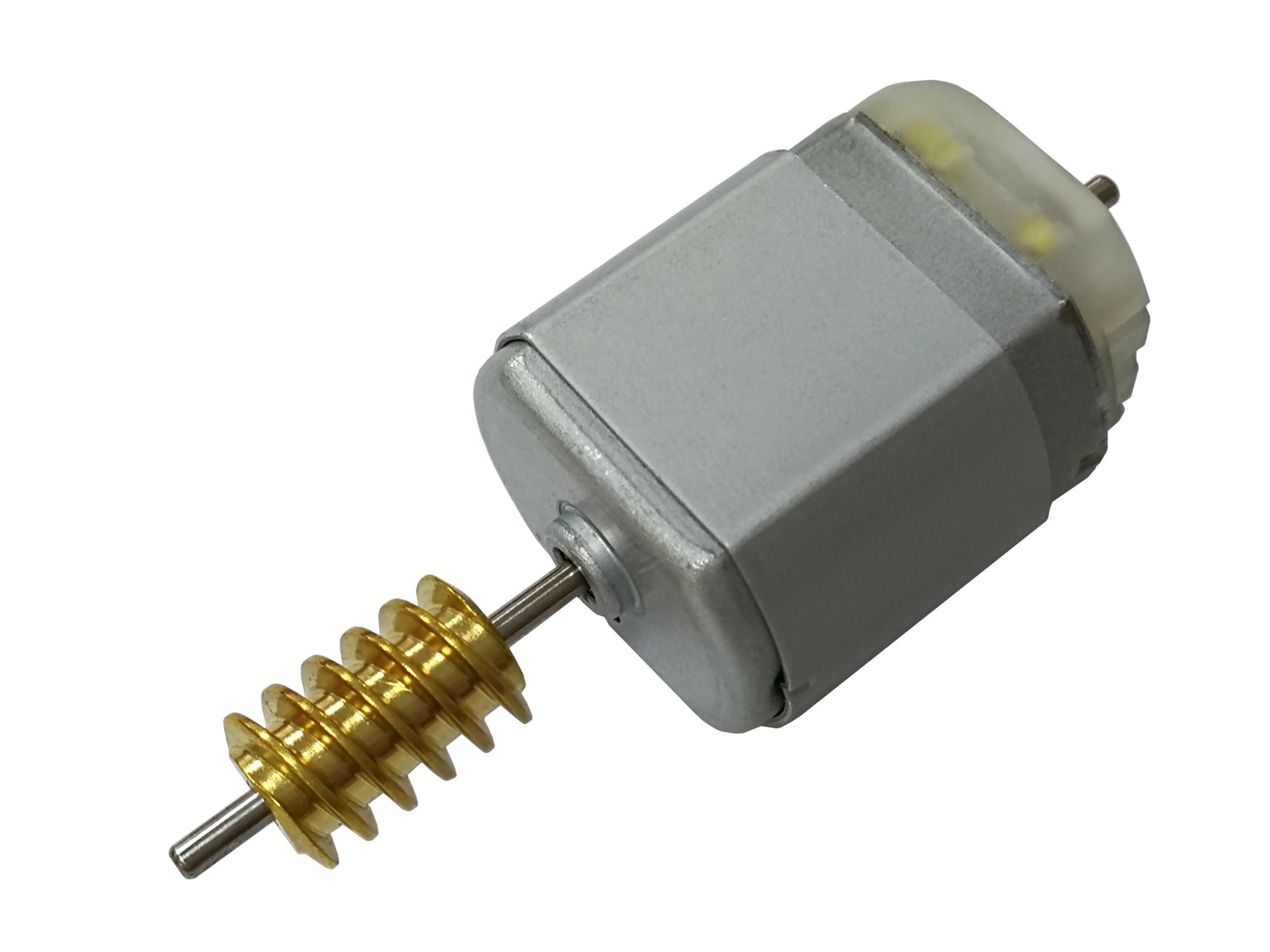

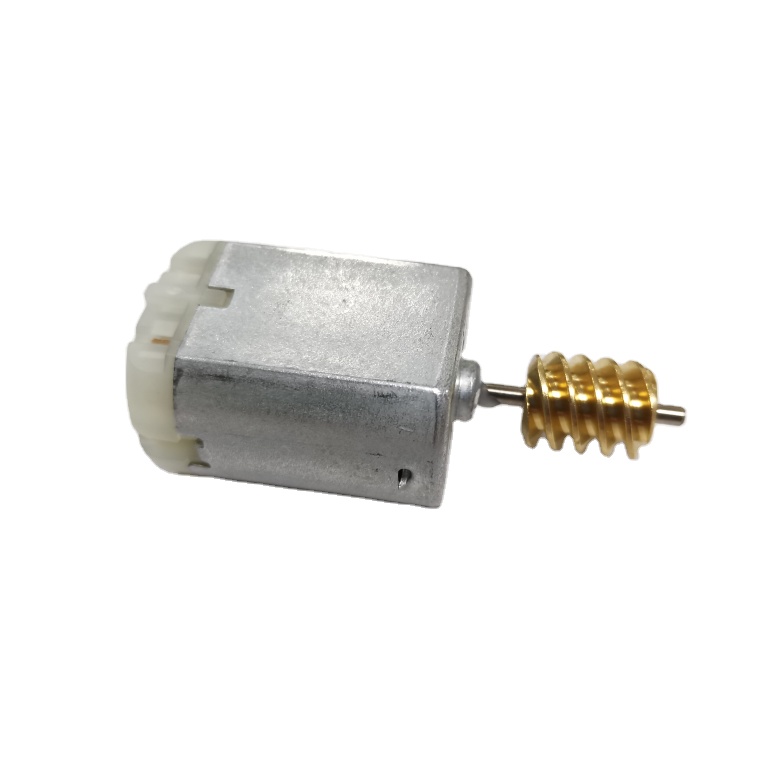

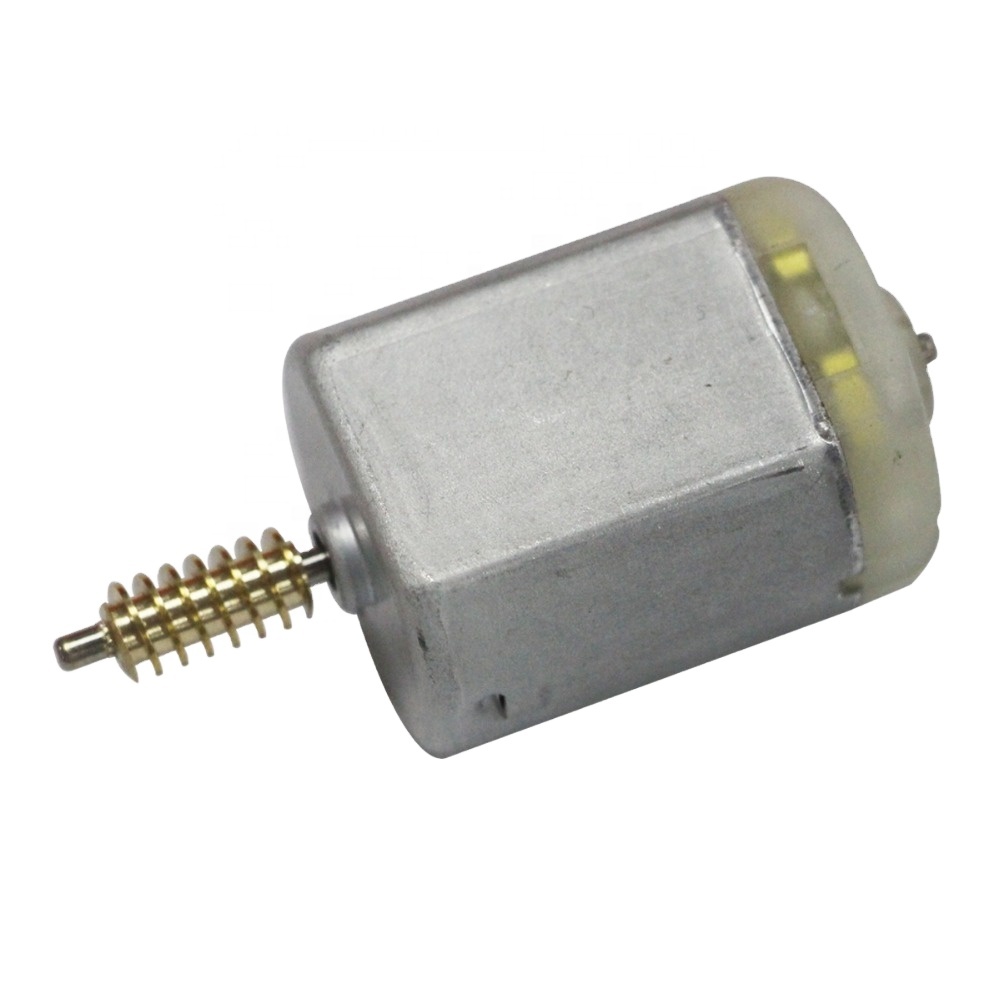

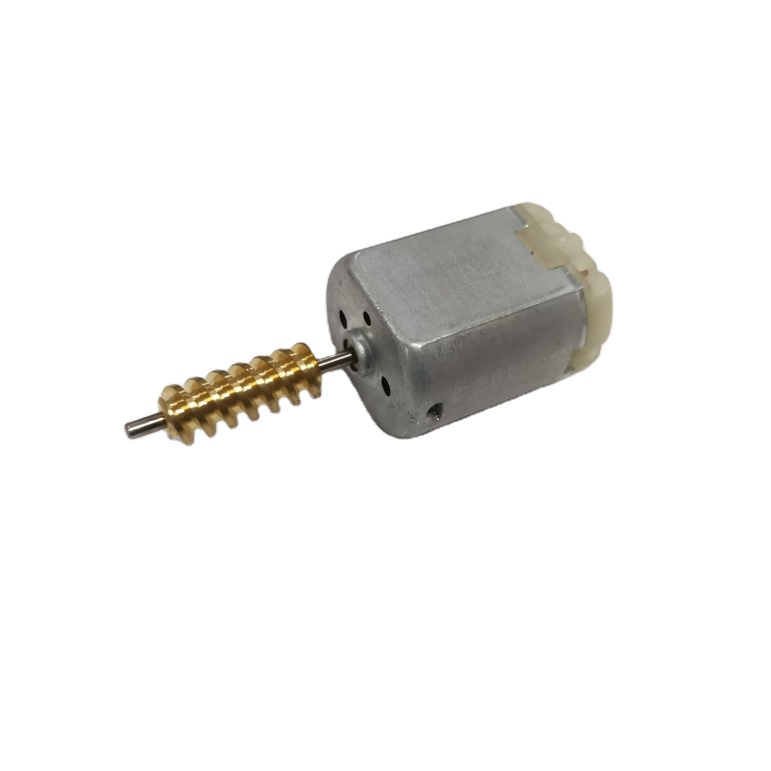

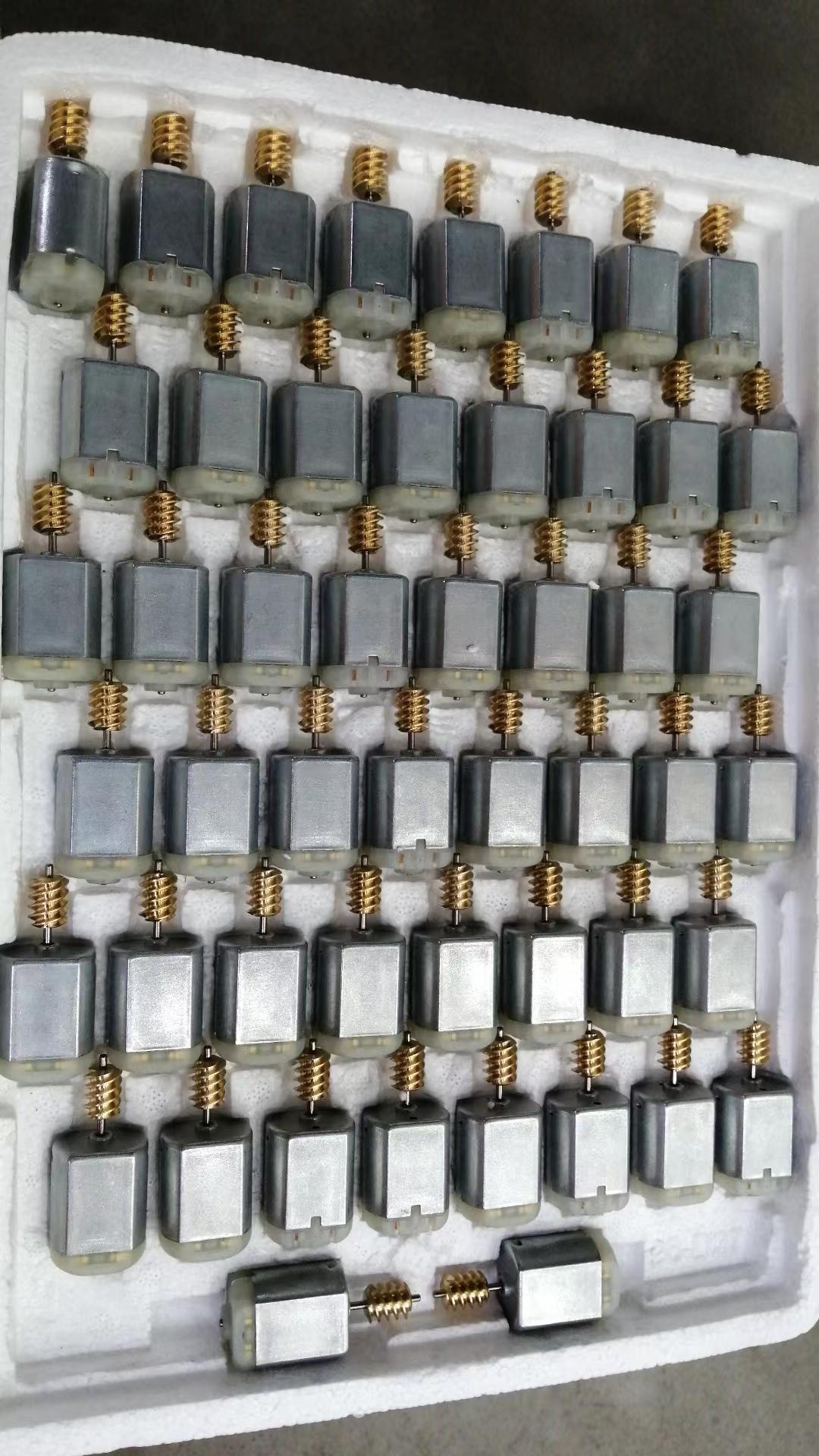

| Product Name | 12V Worm Gear DC Motor For Door Lock Actuator |
| Model Number | FC-280SC-20150 |
| Type | Worm Gear Motor For Automobile |
| Construction | Permanent Magnet |
| Commutation | Brush |

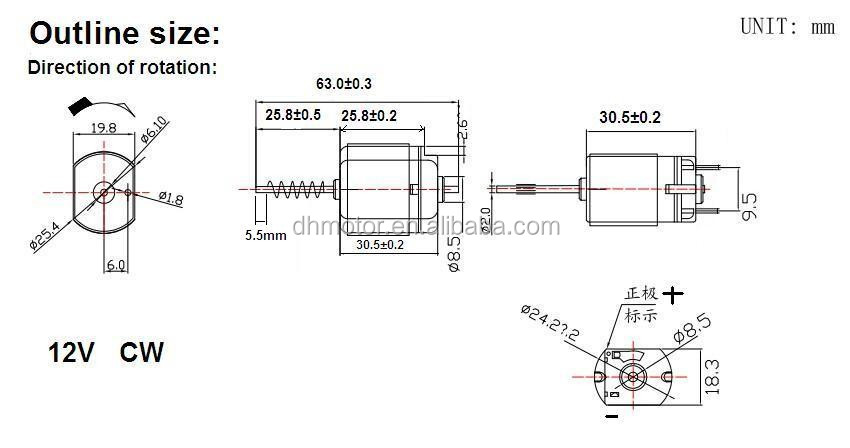

| Size | Diam 24mm * W 18.3mm * L 30.5 |
| Shaft Length | Customized as request |
| Worm Gear | Customized as request |
| Voltage Nominal | 12V |
| Speed (Max Efficiency) | 10310rpm |
| Current (Max Efficiency) | 0.56A |
| Torque (Max Efficiency) | 42.2g.cm |
| Output Power (Max Efficiency) | 4.47W |
| Stall Torque | 335g.cm |

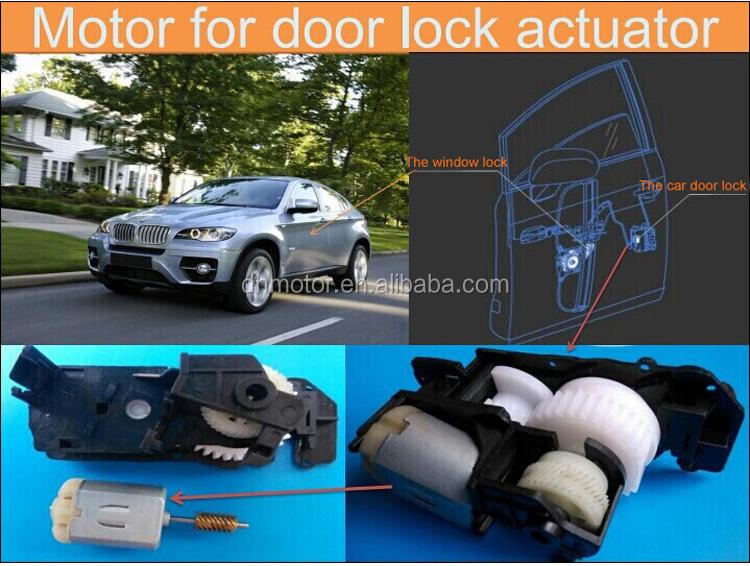

| Typical Application | For Retractable Rearview Mirror, Door Lock Actuator, etc. |
We are a manufacturer with over 15 years of professional experience in the industry.
Our main product lines include Dia10-60mm DC motors, DC gear motors, brushless DC motors, planetary gear motors, high voltage DC motors, and coreless motors.
Our products are widely utilized in fields such as aviation, industrial tools, medical devices, robotics, automated systems, security doors, DMS (Driver Monitoring Systems), and various other industries.
We accept ODM requests. Our R&D team consists of six experienced engineers who can develop customized solutions based on your specific requirements.
Please provide details regarding the required operating voltage, rotation speed, torque, and overall dimensions.
Sample orders generally take 5 to 10 working days to prepare. For bulk standard orders, the delivery timeframe is typically 15 to 25 working days.
