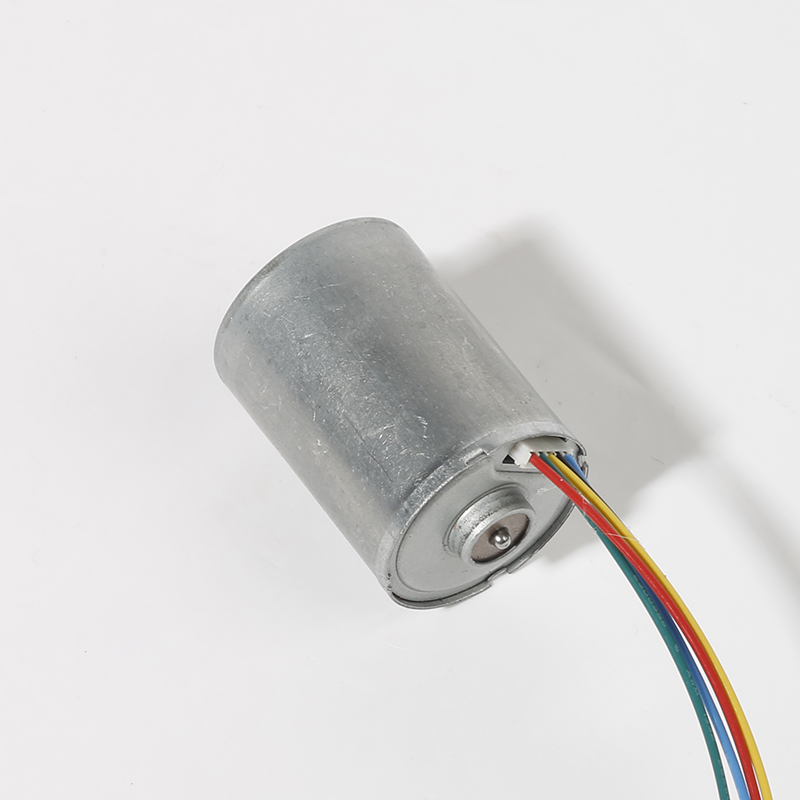

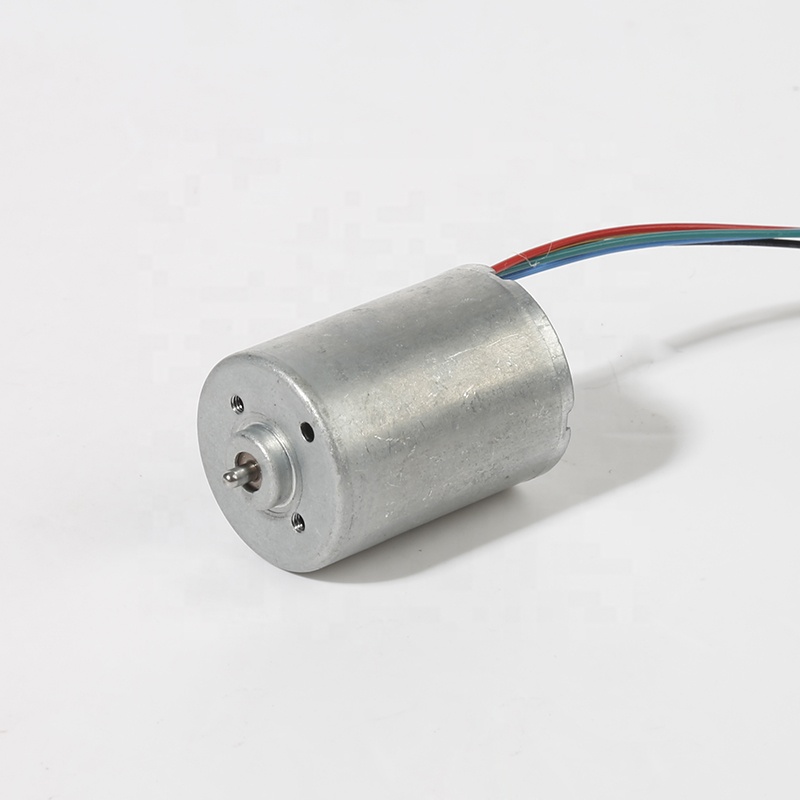

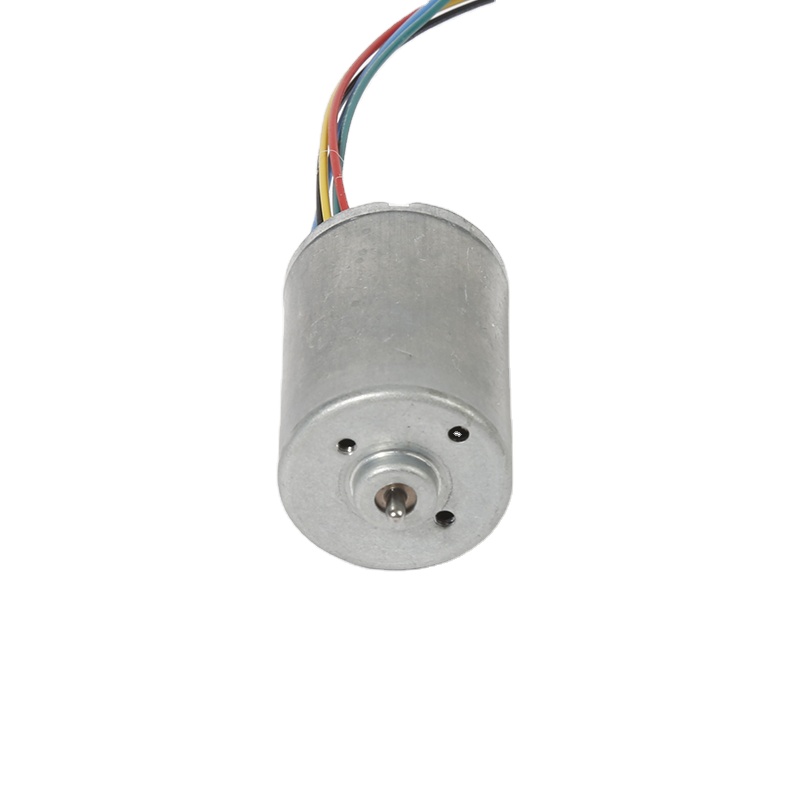

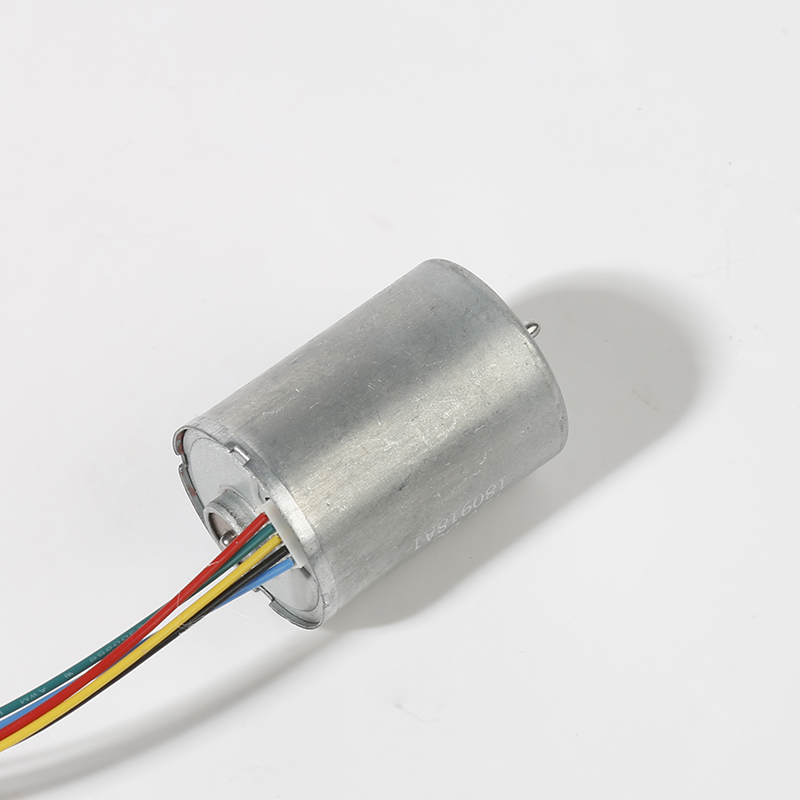

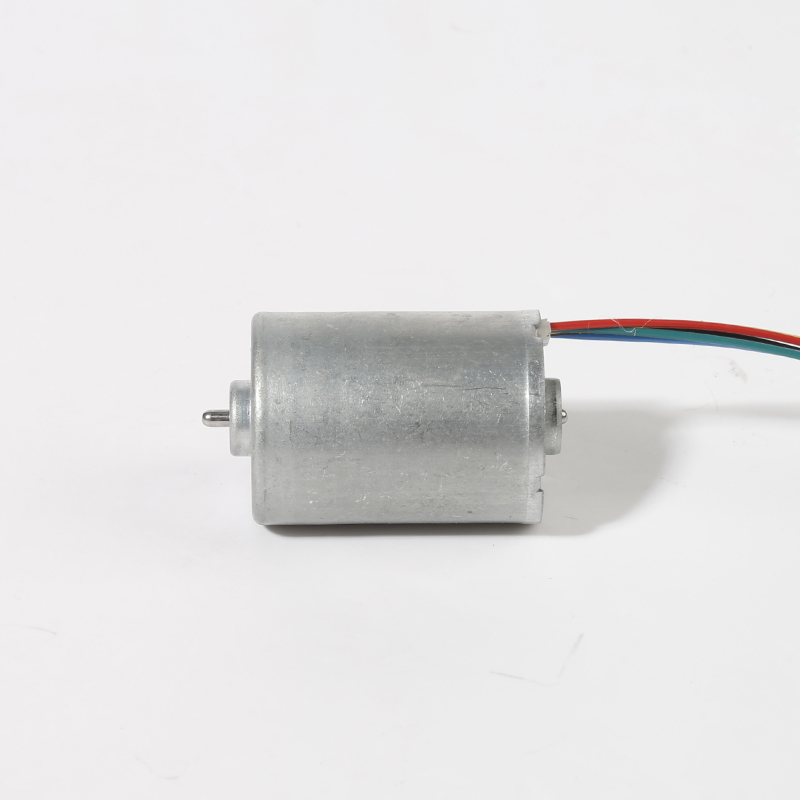

High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver

1 / 5

High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver

Send Inquiry

Product Description

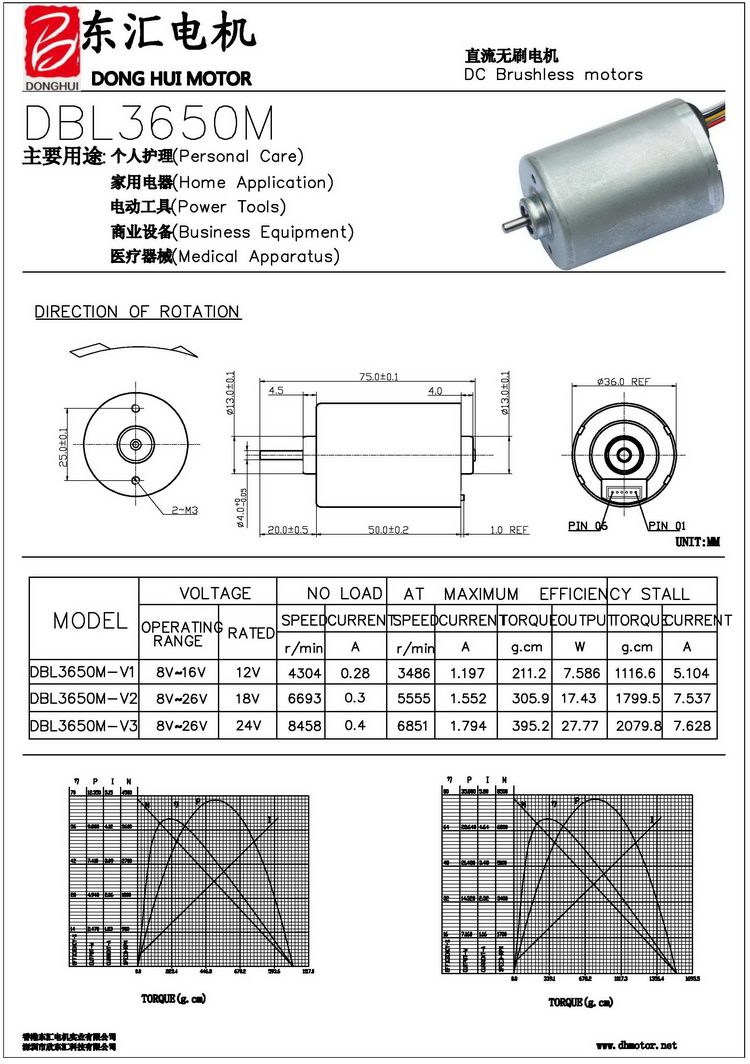

Size: Ø36.0* 50.0mm
Built-in driver (Controller with hall sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC Low noise
Long life: 3000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
Customization acceptable

Model		B3650M-S01	B3650M-S02	B3650M-S03
Voltage(V)	Operating Range	8-26	8-26	8-26
Voltage(V)	Rated	12	24	24
No Load	Speed (rpm)	5300	8589	4327
No Load	Current (A)	0.46	0.25	0.18
Rated Load	Torque (mNm)	23.5	40	45
	Speed (rpm)	4600	6925	3714
	Current (A)	1.53	1.524	1.01
	Output P. (W)	11.35	29	17.49
Stall	Torque (mNm)	77.8	206.5	316.8
Stall	Current (A)	2.5	6.8	2.5

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

Whole 36mm bldc motor with driver series:

Model	Voltage(V)		No Load		Rated Load				Stall
Model	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (mNm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (mNm)	Current (A)
B3626M-S01	8-26	9	2720	0.12	13.73	985	0.57	1.42	21.51	2.5
B3626M-S02	8-26	12	4460	0.18	10.79	3750	0.57	4.23	66.74	2.5
B3626M-S03	8-26	24	5998	0.12	15	4858	0.5	7.63	78.91	2.5
B3626M-S04	8-26	24	11990	0.35	14.715	9420	0.996	14.52	63.79	2.5
B3630M-S01	8-26	6	2940	0.39	10	2270	0.91	2.38	44.05	2.5
B3630M-S02	8-26	12	5200	0.27	14.72	4260	0.9	6.56	81.3	2.5
B3630M-S03	8-26	24	6970	0.2	19.62	5640	0.76	11.58	102.51	2.5
B3630M-S04	8-26	24	15755	0.39	20	13213	1.59	27.67	123.9	3.5
B3640M-S01	8-26	12	2360	0.14	25.5	1830	0.69	4.9	174.10	2.5
B3640M-S02	8-26	12	7930	0.56	19.62	6800	1.89	13.97	83.22	3.0
B3640M-S03	8-26	24	6140	0.26	23.5	5190	0.85	12.8	229.05	2.5
B3640M-S04	8-26	24	7046	0.28	56.00	5156	1.80	30.23	208.79	2.5
B3650M-S01	8-26	12	5300	0.46	23.5	4600	1.53	11.35	77.8	2.5
B3650M-S02	8-26	24	8589	0.25	40	6925	1.524	29	206.5	6.8
B3650M-S03	8-26	24	4327	0.18	45	3714	1.01	17.49	316.8	2.5
B3657M-S01	8-26	12	3170	0.26	29.4	2460	1.15	7.6	181.5	2.5
B3657M-S02	8-26	12	3100	0.24	40.22	2560	1.31	10.78	215.8	2.5
B3657M-S03	8-26	24	6830	0.34	40.20	6134	1.48	25.80	195.0	2.5
B3657M-S04	8-26	24	4743	0.25	98.00	3486	2.24	35.78	369.87	5.0

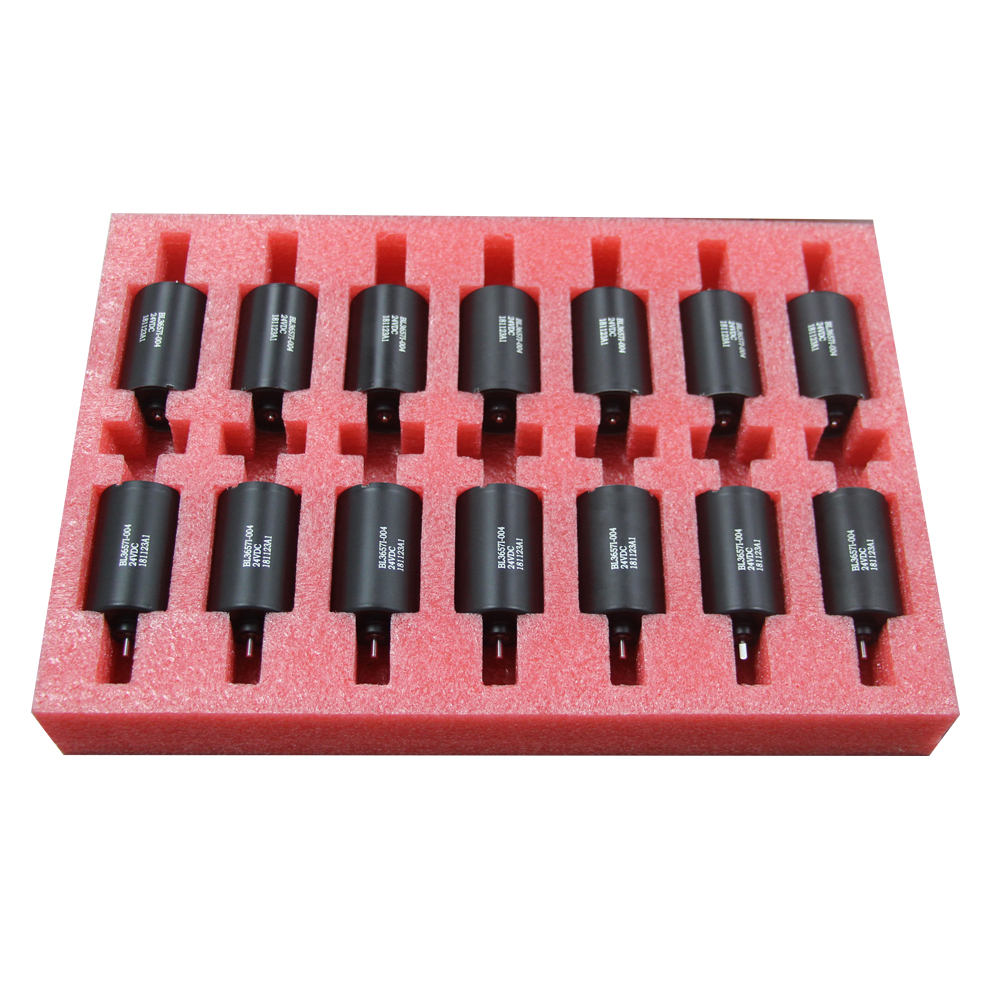

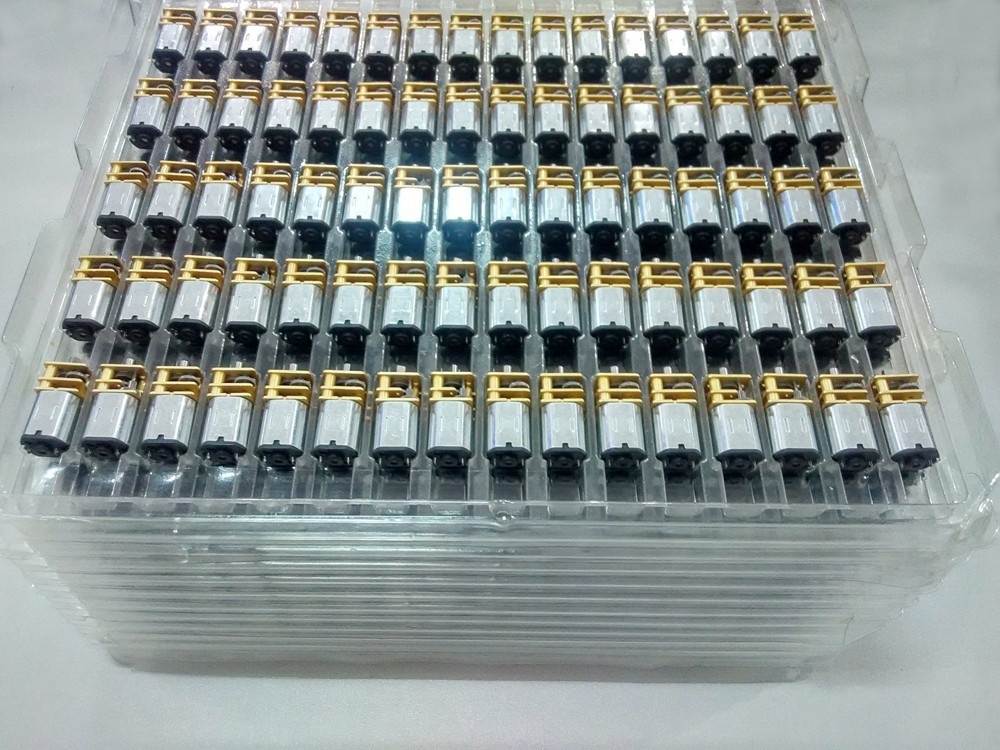

Packaging & Shipping

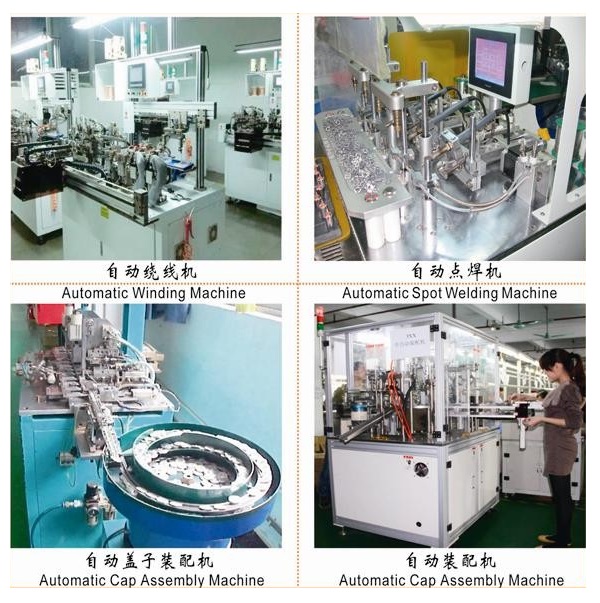

Company Information

Professional micro motor/engine manufacturer for more than 15 years.

Brush Dc Motor: Φ6mm—Φ60mm
Brushless Dc Motor: Φ24mm-Φ52mm
Coreless Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
Stepper Dc Motor: Φ6mm—Φ24mm
Vibration Dc Motor: Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Shaft Length: 0.1-150mm
Gearbox Ratio: 1:4---1:5000

FAQ

What types of micro motors do you manufacture?

Our production scope covers Dia 10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush and Brushless DC motors, planetary/spur gear motors, coreless motors, stepper motors, and vibration motors.

Can the motor specifications be customized to my project requirements?

Yes, we accept OEM/ODM orders. Key performance indexes like operating voltage, rated speed, stall torque, power output, and shaft extension dimensions can be tailored precisely to your specific requirements.

What applications are your micro DC gear motors suitable for?

Our motors are widely used in home appliances, office automation, medical care units, automatic locks, sanitizing systems, vending machines, banking devices, and smart electronic toys.

What are the typical lead times for sample and bulk orders?

Standard samples generally take between 7 to 15 working days depending on customization requirements. Bulk commercial orders usually take between 15 to 25 working days.

What payment terms do you support?

We accept payments via T/T and PayPal. Sample orders require a 100% advance payment. Bulk orders over 5,000 USD require a 30% to 50% deposit, with the remaining balance due before shipment.

What details should I provide if I want to customize a motor?

Please supply your desired operating voltage range, target speed (RPM), continuous torque capacity (mNm), and dimensional limitations. If you are unsure, our engineering team can assist you based on your application.
