29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
1 / 4
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor

29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor

Send Inquiry

Product Description

Specification
Item 100000rpm electric motor
Size Diameter 29mm, Length 40mm
Voltage 110V 220v 230v Customized (12V 24V 36V 48V)
Speed 100000-110000rpm Closed loop
Rated Load Ø 27 - 13 fan blades
Max Wattage ≤125watt
Rated Current ~0.58A
Rated Input Power ≤80watt
Air Velocity 19.0 m/s REF.
Lifetime more than 1000 hours
Protection Over current protection, Over heating protection
Feature Long Lifetime, Low Noise, High Efficiency, Stable and Reliable
Application hair dryer
Product Description
The following motor voltage, speed, torque, shaft length, and shaft type can be customized.
Motor Customization Parameter Details

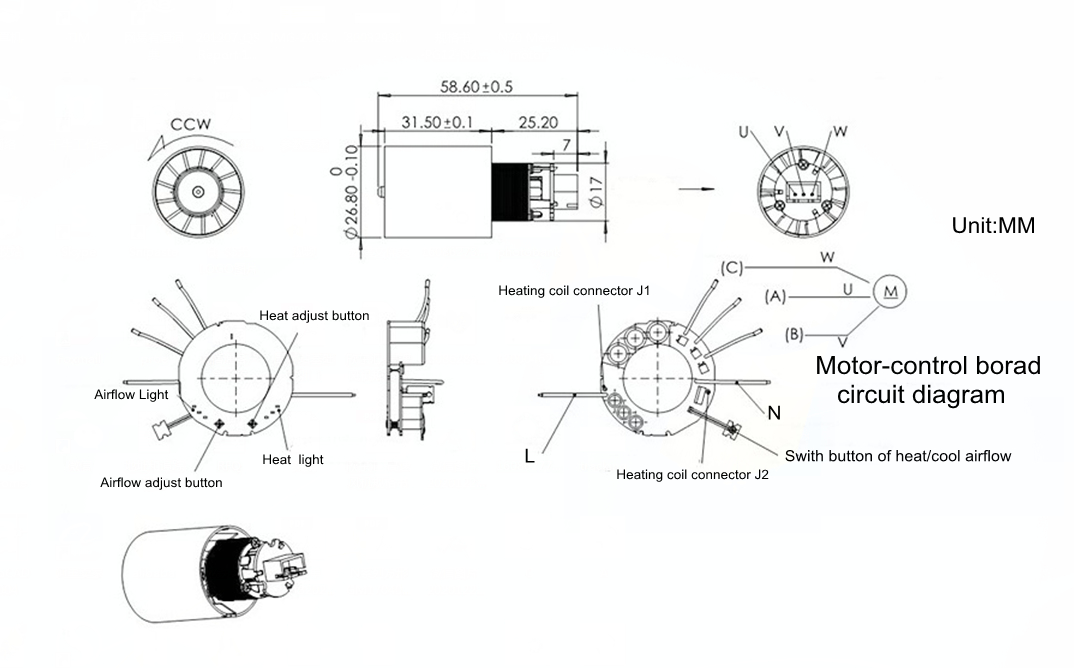

Motor Structure Diagram
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

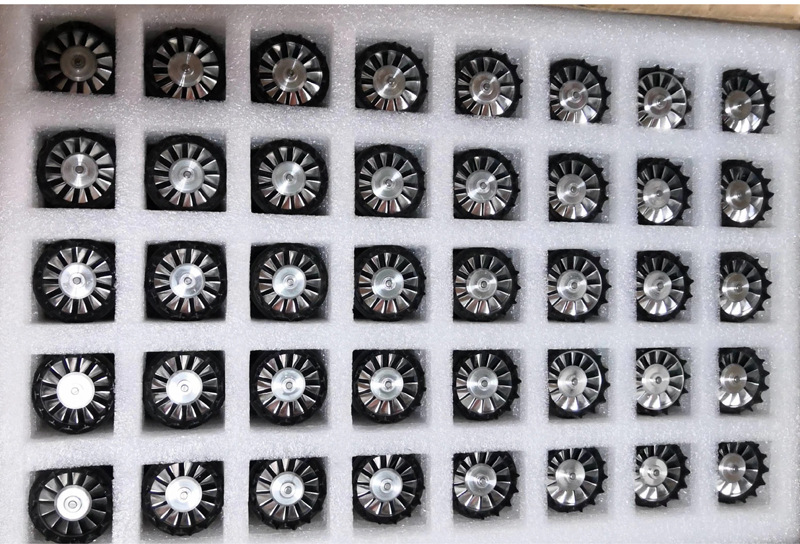

Standard Packaging Box Layout
Inner Protective Packaging Detail
Outer Carton Packing Detail
Pallet Packaging and Delivery Preparation
Company Profile
Professional micro motor/engine manufacturer for 10 years.
Brush Dc Motor: Φ6mm—Φ60mm
Brushless Dc Motor: Φ12mm-Φ42mm Coreless
Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
Stepper Dc Motor: Φ6mm—Φ24mm
Vibration Dc Motor: Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Shaft Length: 0.1-150mm
Gearbox Ratio: 1:4---1:5000
Factory Office Environment
Motor Production Line Automated Equipment
Testing and Quality Assurance Laboratory
Precision Motor Manufacturing Assembly Area
Frequently Asked Questions
Q1 What's your main products?
Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Q2 What's the main usage of the micro dc gear motor?
Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.
Q3 Do you accept customize?
Sure, as we have a strong design team, any problems will get our technical answer.
Q4 What kind of data do i need to provide if i want to order?
Please kindly tell us your voltage, speed, torque and overall dimension.
Q5 What if i don't know the above data?
Please contact our salesman, tell us your requirement, we will recommend the best fit model.
