rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
1 / 5
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque

rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque

Send Inquiry

Product Description

Product Description
Place of Origin:
Guangdong China (Mainland)
Brand Name:
OEM
Model Number:
RS-540
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification:
ROHS, ISO9001
Type:
Micro Motor
Torque:
1988 G.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
drip-proof
Speed(RPM):
19600 rpm
Continuous Current(A):
4.1A
Output Power:
60W
Voltage(V):
6-24v
Efficiency:
IE 1
Shaft:
3.175 MM shaft
Weight:
150g
no load speed:
23400 rpm
max efficiency:
53.3%
Application:
Kitchen Utensil, Household Appliance
Brush:
Carbon brushes
Style:
motor RS-540

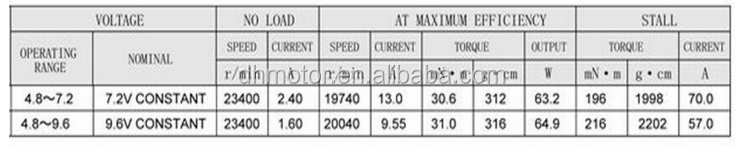

Specifications
rs 540 dc motor 7.2v micro brush dc motor for RC car, high speed 7.2v dc rc motor with high torque
  • Low noise high torque long-life
  • Motor Voltage: 3v-24v RS 540 DC MOTOR
  • The shaft: dia 3.175 mm
  • Motor Diameter: 35.8mm length: 50mm It is a tube
  • Output power: approx 1W~35W
  • Certification: CE, ROHS ISO9001:2000
  • Carbon-brush motors
  • The motor weight: 150g (Approx)
  • Motor direction of rotation: CW & CCW
  • 3v-24v mini dc Motor Typical Applications: household appliances: massager/vibrator air compressor
  • Motors specification and shaft length can be tailor-made according to customer's requirements
Packaging & Shipping
Packaging Detail: 1. International standard packaging
2. Standard packaging
3. Customers' standard packaging
Delivery Detail: less than 30 days
Our Services

RS540 Micro dc motor, dc gear motor, dc brushless motor

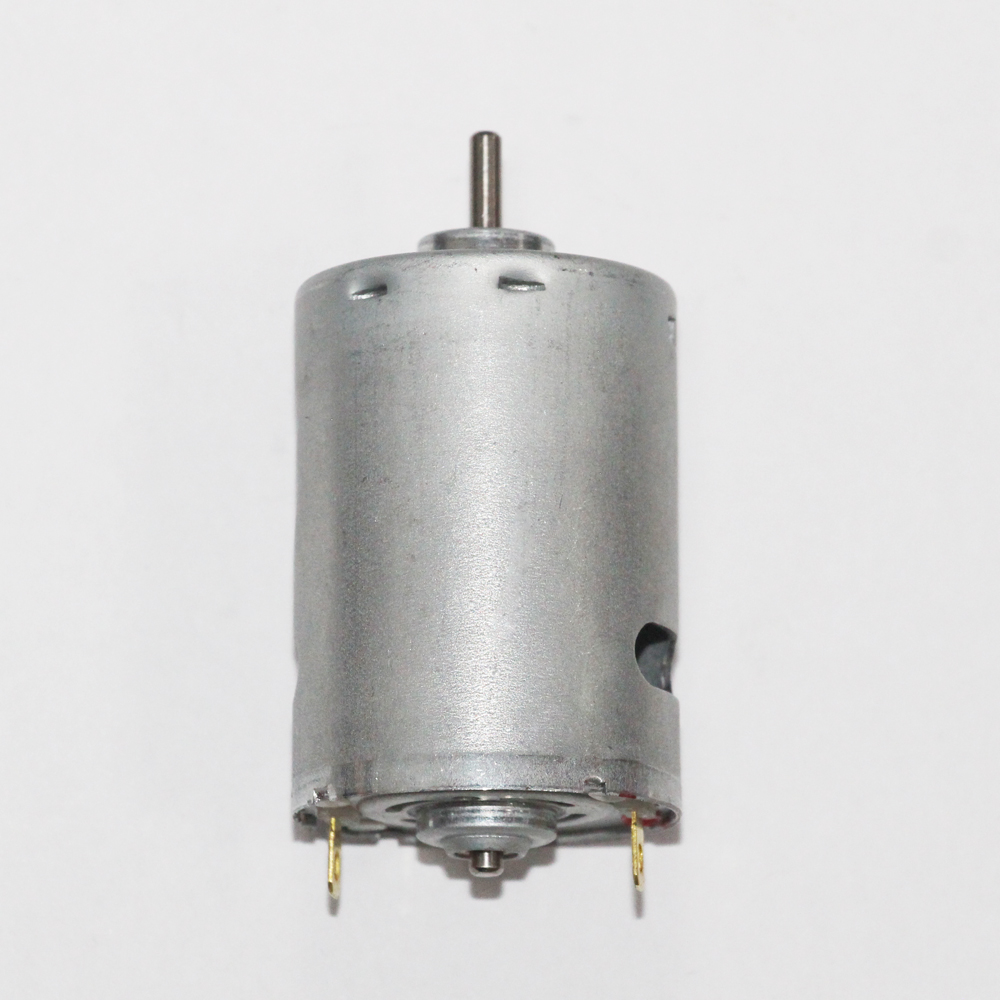

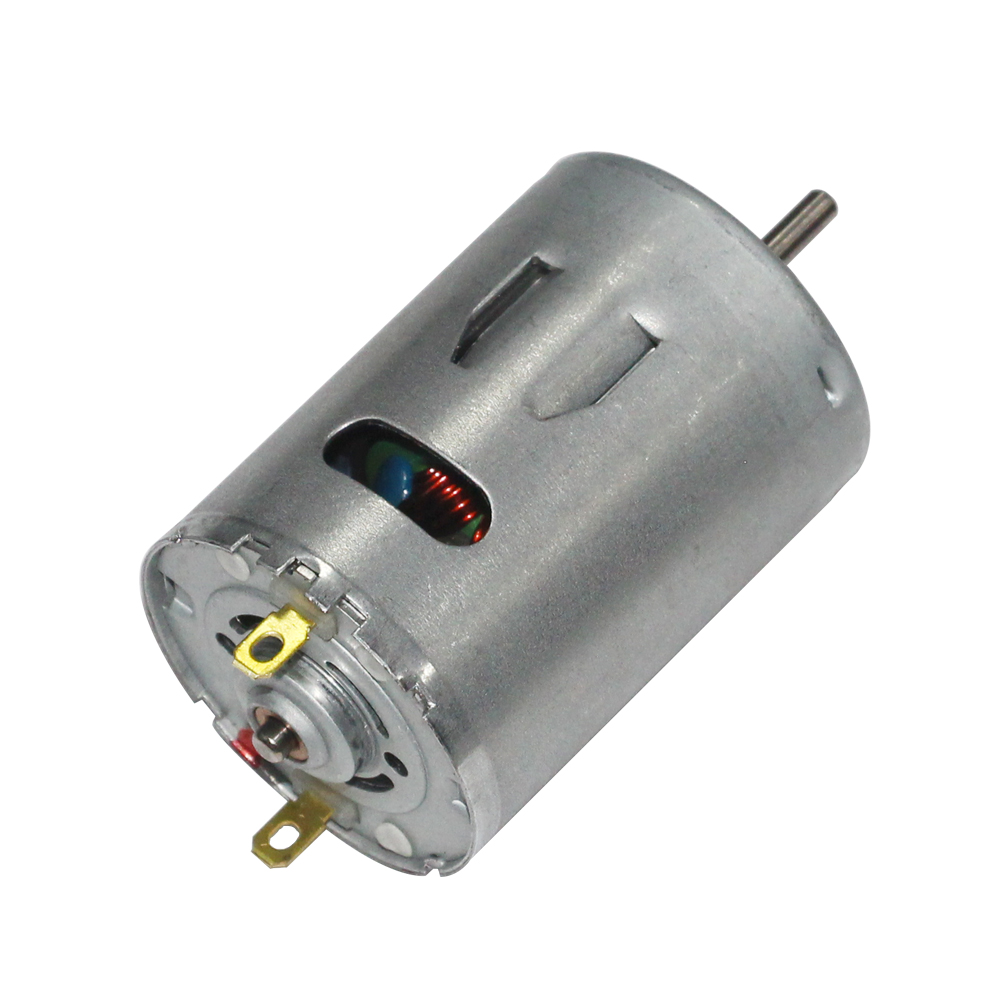

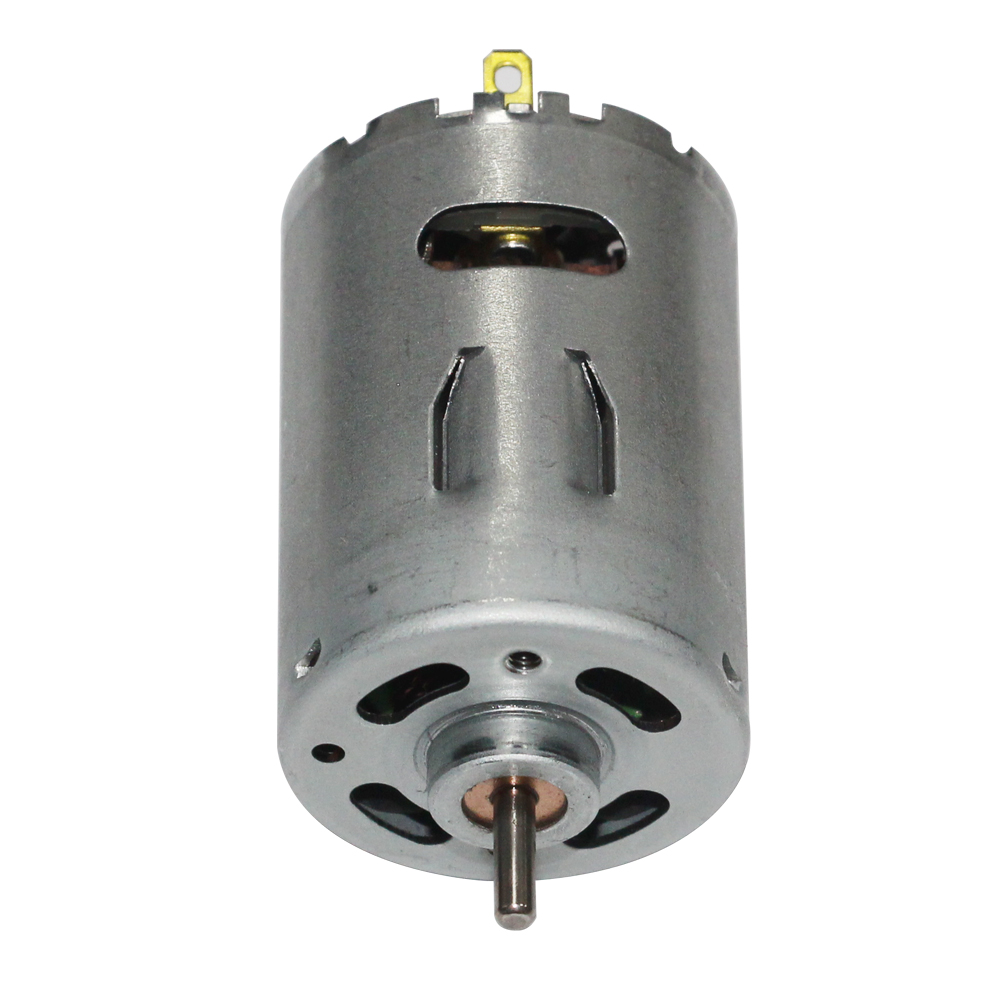

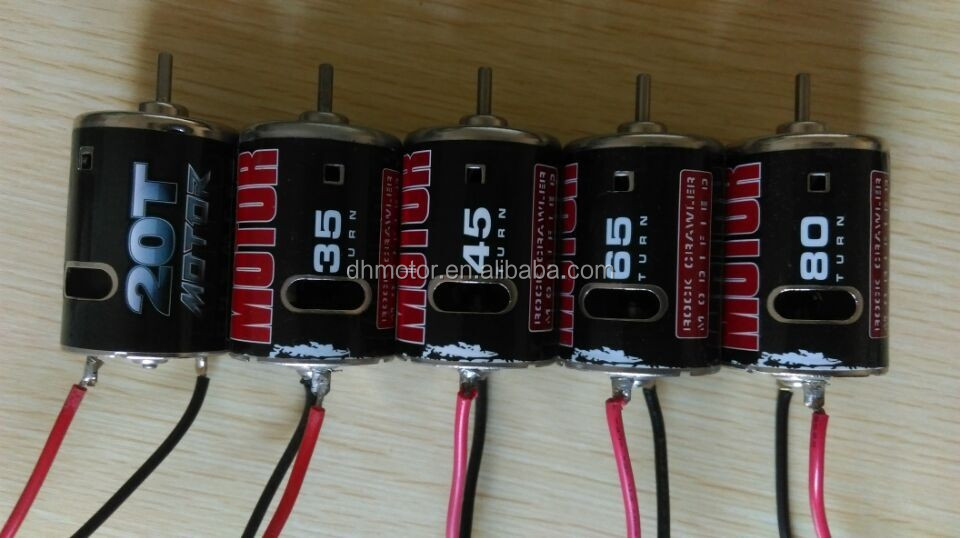

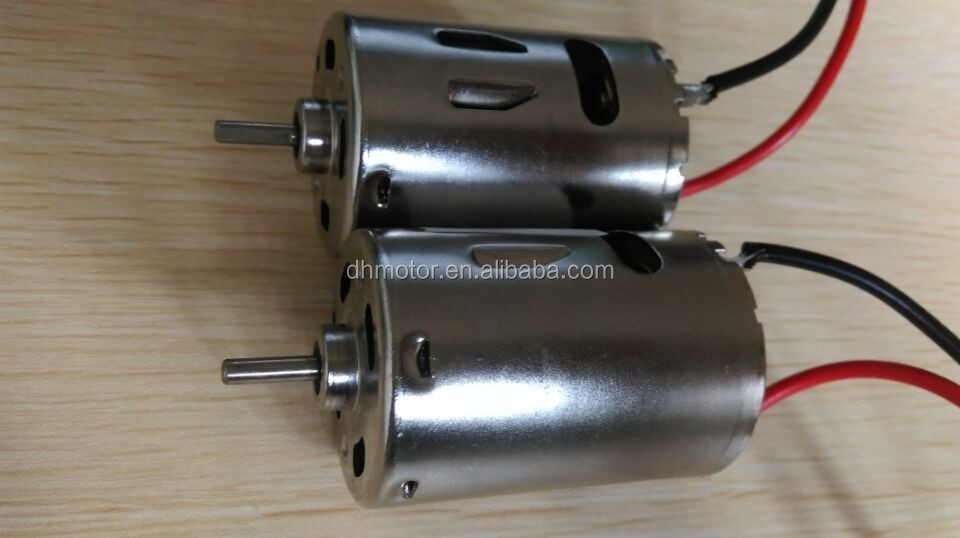

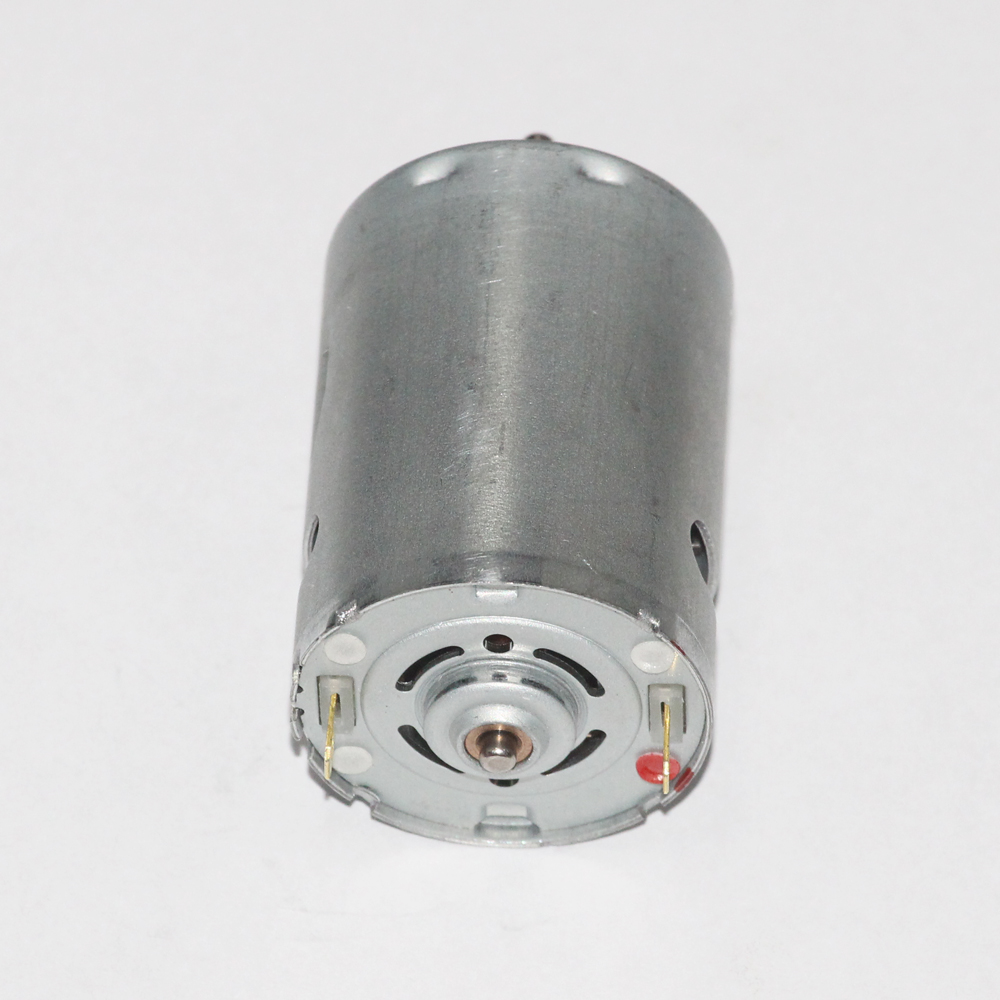

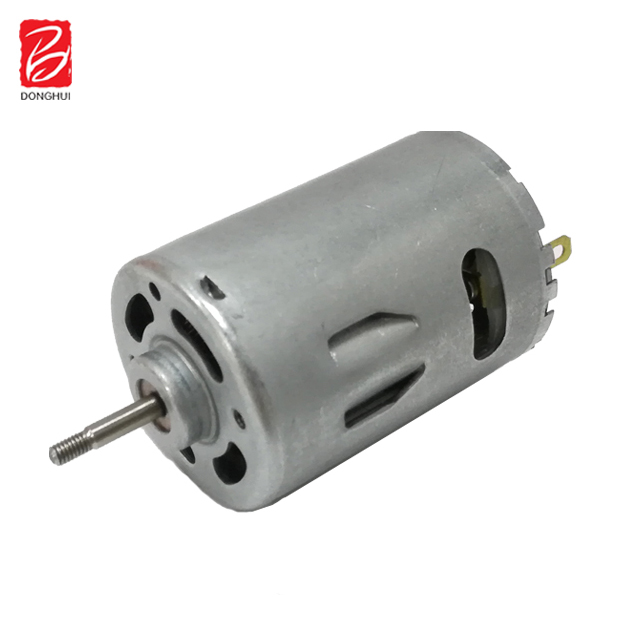

Motor photos:

6V 12V 24V RS540 DC MOTOR

rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
Production Line & Development
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque

Since established in 2003, there has been a commitment to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields.

  • Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
  • Products size range: Diameter: 4-100mm
  • DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
  • Speed range: 1 RPM-30,000RPM
  • Stall torque: 1g.cm-30kg.cm
  • Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
Frequently Asked Questions (FAQ)
Q1: What are the main applications of the RS-540 DC motor?
A1: The RS-540 micro DC motor is widely used in RC cars, household appliances (such as massagers, vibrators, and kitchen utensils), electric bicycles, fans, and air compressors.
Q2: What voltage and speed range does this micro motor support?
A2: The RS-540 motor operates within a voltage range of 3V to 24V (with typical specifications showing 6-24V compatibility), achieving a high speed of up to 19600 rpm under load and 23400 rpm at no-load.
Q3: Can the specifications and shaft length be customized?
A3: Yes. The motor specifications, performance details, and shaft length can all be tailor-made according to the customer's specific requirements.
Q4: What certifications do these micro motors carry?
A4: Our products comply with international quality and safety standards, featuring certifications such as CE, ROHS, and ISO9001:2000.
Q5: What are your standard packaging options?
A5: We offer three standard packaging methods: international standard packaging, our standard factory packaging, or fully customized packaging as requested by the customer.
Q6: What is the typical lead time for delivery?
A6: The delivery detail is generally less than 30 days depending on the customization level and order quantity.
